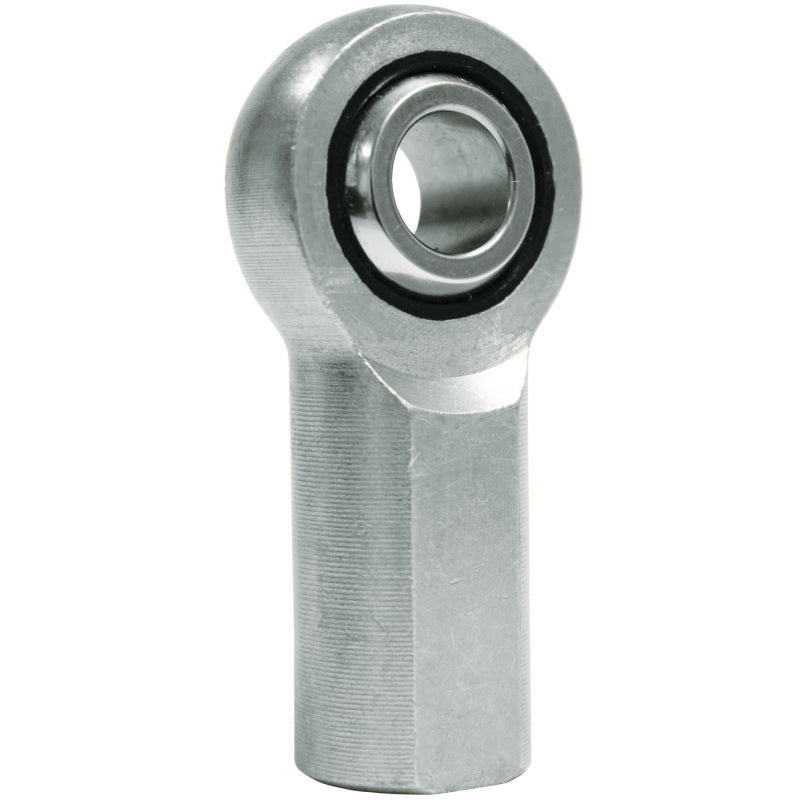

QA1 NFL5 N Series Injection Molded Rod End - Female/Left Hand - .3125in Bore

QA1 NFL5 QA1 N Series Injection Molded Rod End - Female/Left Hand - .3125in Bore x 5/16-24 - Carbon Steel

Brand : QA1

MPN : NFL5

AlternatePartNumber : qapNFL5

UPC : 806990024152

Product Department : Suspension

Product Category : Tie Rods

BoxQuantity : 1

Length : 1.8 inches

Width : 0.9 inches

Height : 0.4 inches

Weight : 0.1 lbs

Prop65 : Yes

QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads. This series features a molded race compound designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is made from reinforced nylon 12 with PFTE, and the body is carbon steel that is protective coated. Notes: Stud configurations are available.
