QA1 5209 78-96 fits GM B-Body Lower Boxed Trailing Arms (5/8in Extended)

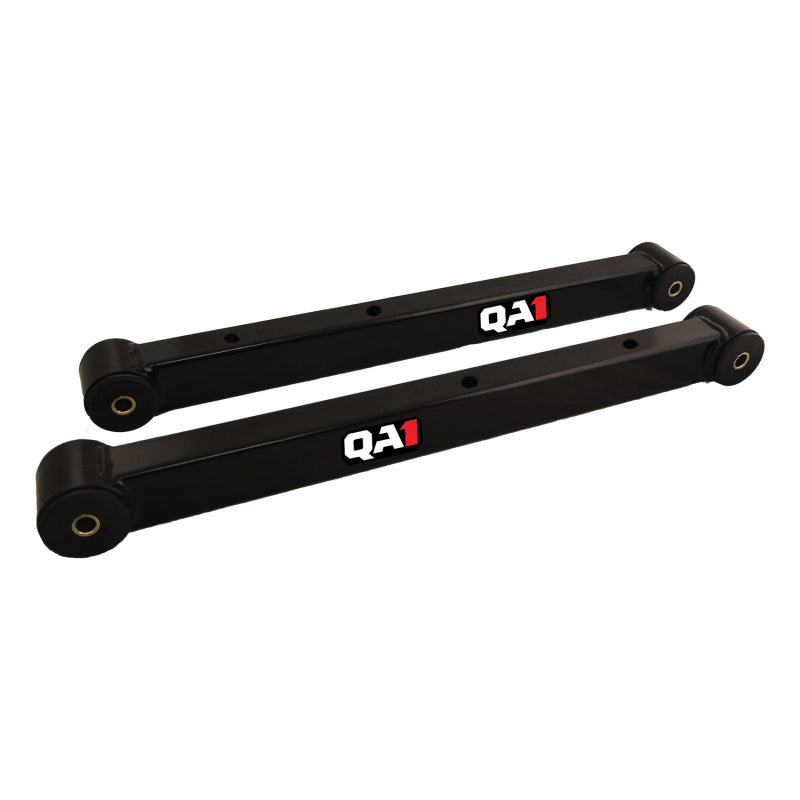

QA1 5209 QA1 78-96 fits GM B-Body Lower Boxed Trailing Arms (5/8in Extended)

Brand : QA1

MPN : 5209

AlternatePartNumber : qap5209

UPC : 806990147332

Product Department : Suspension

Product Category : Control Arms

BoxQuantity : 1

Length : 27.3 inches

Width : 6.3 inches

Height : 4.0 inches

Weight : 19.7 lbs

Prop65 : Yes

All upper tubular and lower boxed trailing arms use polyurethane bushings on both ends, while upper adjustable and lower tubular trailing arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. This keeps the tires planted firmly on the ground for improved traction and a more predictable, better handling car. For a long-lasting finish, tubular and boxed trailing arms are powder-coated gloss black, while the adjustable arms are zinc plated and anodized. Boxed Trailing Arms are constructed from 0.120'' wall cold rolled steel tubing for maximum strength and flex elimination. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Tubular Trailing Arms are constructed from 1-1/4'' diameter, 0.120'' wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Heavy-Duty Adjustable Trailing Arms allow easy rear suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end to allow the rear suspension to move more freely and eliminate bushing bind. All parts sold in pairs.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-1996	Chevrolet	Caprice	Classic
1993-1994	Chevrolet	Caprice	Classic LS
1993	Chevrolet	Caprice	Classic LTZ
1994-1996	Chevrolet	Impala	SS
