QA1 R110-170 63-72 fits Chevrolet C10 Rear Suspension Conversion System - Sof

QA1 R110-170 QA1 63-72 fits Chevrolet C10 Rear Suspension Conversion System - Soft - Single Adjustable (170lbs/in)

Brand : QA1

MPN : R110-170

AlternatePartNumber : qapR110-170

UPC : 806990152435

Product Department : Suspension

Product Category : Suspension Packages

BoxQuantity : 2

Length : 107.0 inches

Width : 38.0 inches

Height : 15.0 inches

Weight : 146.0 lbs

Prop65 : Yes

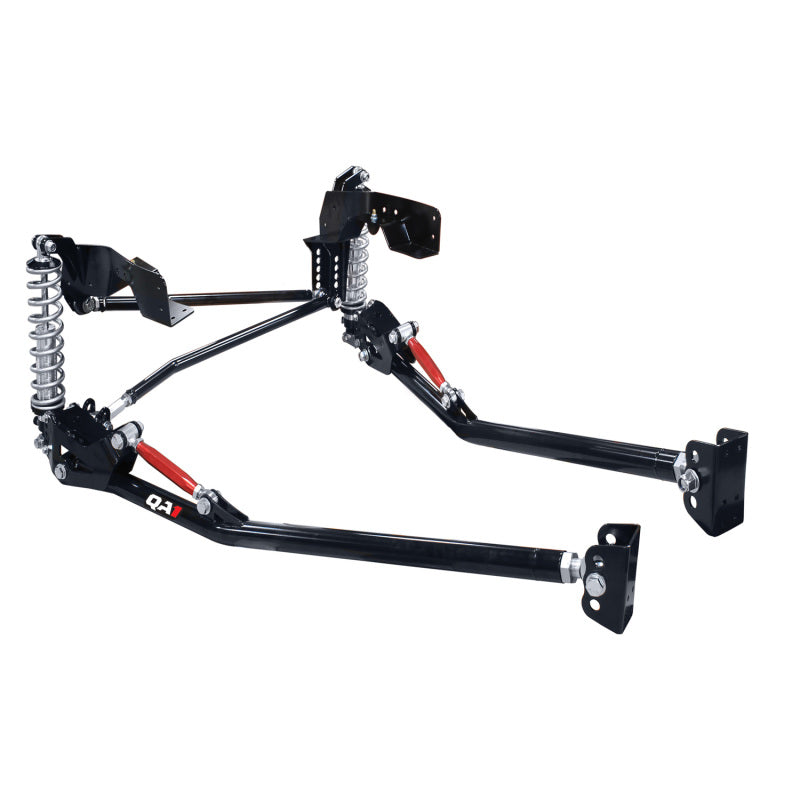

QA1's C10 bolt-on rear suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. This system offers up to 6" of total drop and integrates adjustability into multiple areas so you can truly fine-tune the geometry to create the perfect performance after lowering. , , By converting the coil-spring rear suspension to adjustable coil-overs, the ride height for each corner can be altered for that perfect stance. From there, the tubular steel truck arms feature an integrated pinion angle adjustment, eliminating the need for angled shims and allowing the wheelbase to be set to exact specifications. The adjustable panhard bar keeps the rear centered for more predictable cornering, and the multiple mounting locations correct roll center geometry based on the amount of drop. The coil-overs are also relocated to the outside of the frame rail, closer to the wheel, for better cornering stability and allowing room for popular aftermarket rear-mounted fuel tanks. In addition to being easily bolted on, the entire rear system can be installed without needing to remove the bed of the truck.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1963-1967	Chevrolet	C10 Panel	Base
1963-1972	Chevrolet	C10 Pickup	Base
1967-1972	Chevrolet	C10 Suburban	Base
