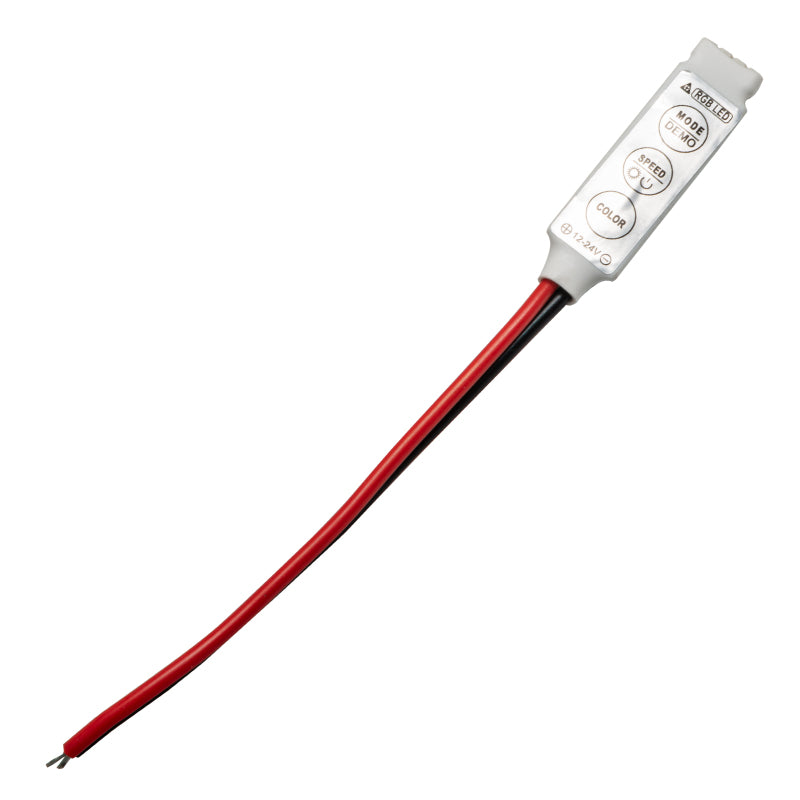

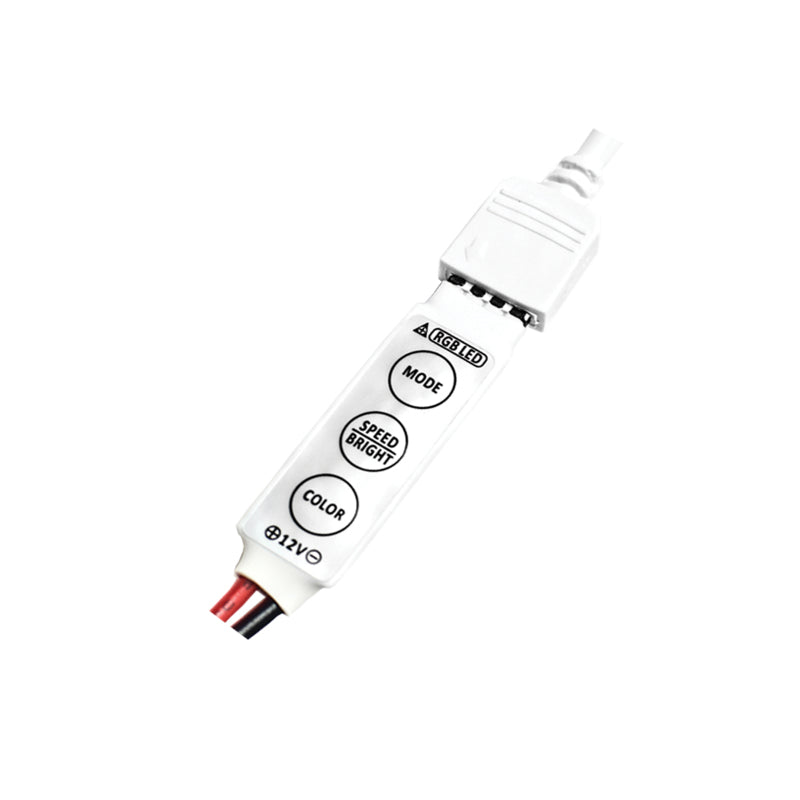

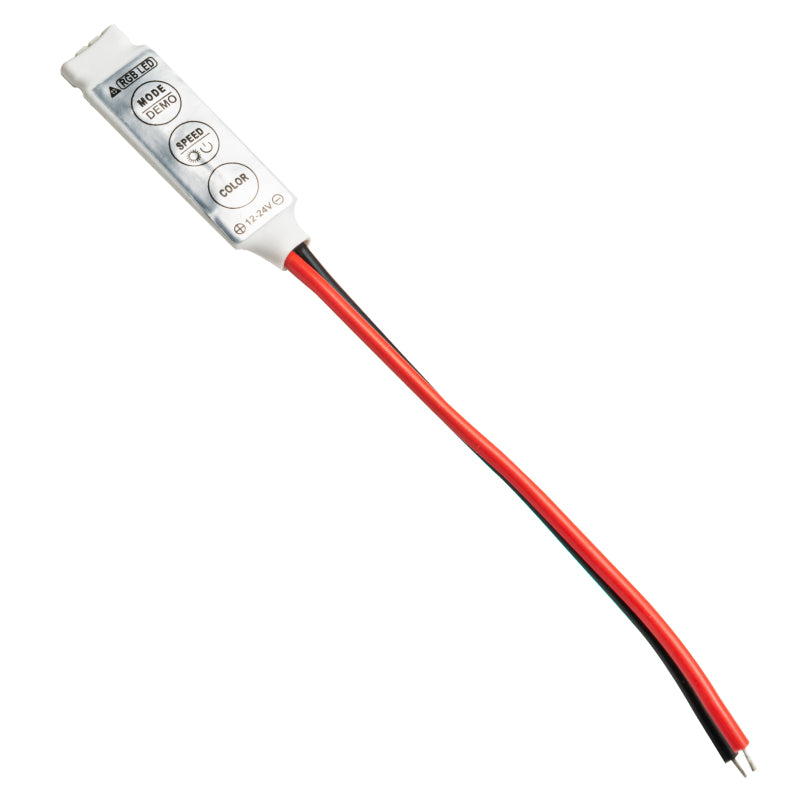

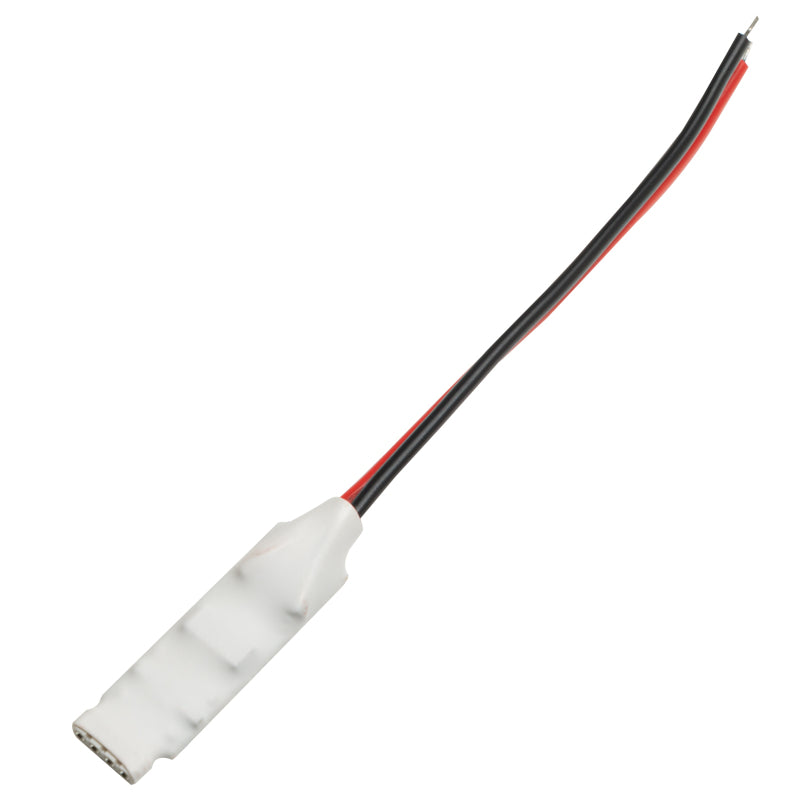

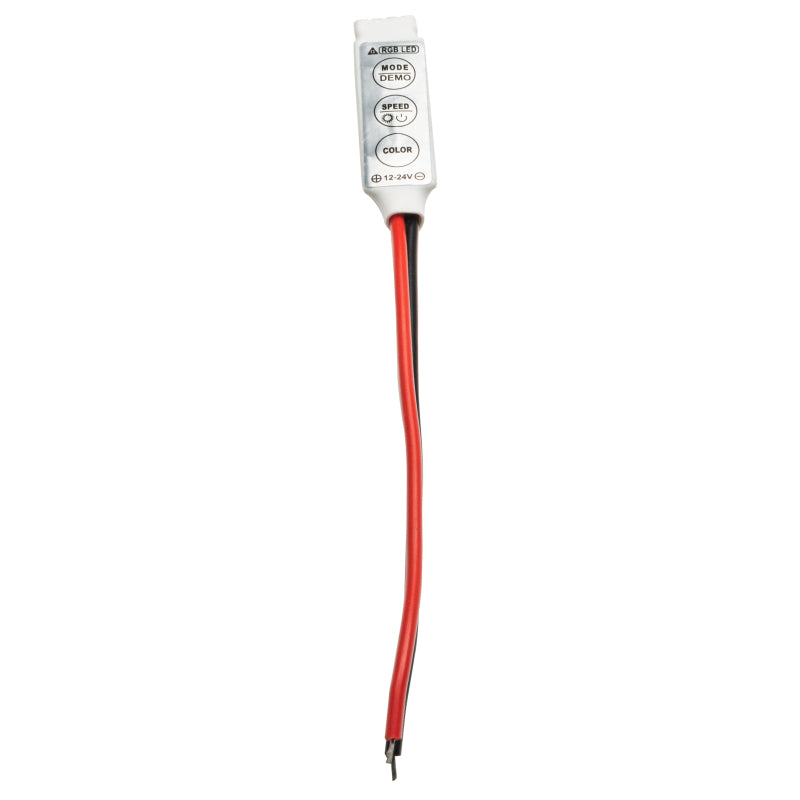

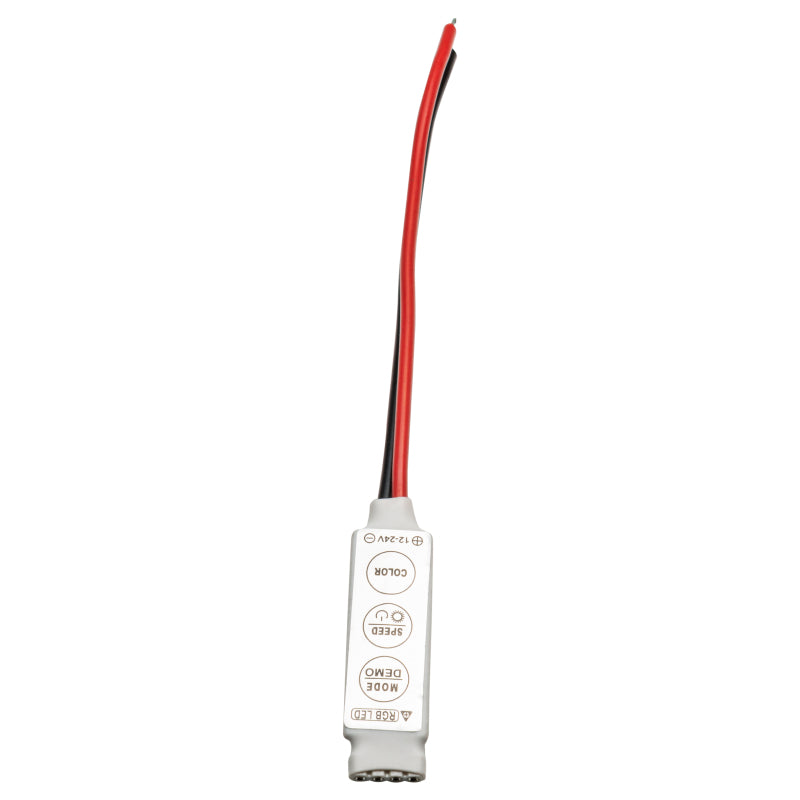

ORACLE Lighting 1614-504 Oracle In-Line LED RGB Controller

ORACLE Lighting 1614-504 Oracle In-Line LED RGB Controller

Brand : ORACLE Lighting

MPN : 1614-504

AlternatePartNumber : orl1614-504

UPC : 161450420135

Product Department : Lights

Product Category : Light Accessories and Wiring

BoxQuantity : 1

Length : 9.0 inches

Width : 9.0 inches

Height : 4.0 inches

Weight : 1.0 lb

Prop65 : Yes

Easy to install LED controller from ORACLE Lighting. The In-Line LED Controller wires directly between a power source and an LED product such as our Flex Strips. For simple control over RGB flex strips. Connect one end to power source. With supplied RGB plug, connect the other end to color coded wires on RGB flex strip. Modes include: - Breathing Mode - Heartbeat Mode - Primary and Secondary Strobe Modes - Control Dimming Mode - Color Control Also included:- Speed Variable Button - Visible markings for the + and - 12V and LED sources. Specifications:- Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F - Static power consumption: < 1 Watt - Output Power: 144 Watts - Color Control: 20 Static Colors - Dynamic Modes: 5 - Levels of Control: 256- Levels of Speed: 6- Levels of Brightness of Static Color:8- RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
