ORACLE Lighting 1615-504 Oracle In-Line LED Amplifier

ORACLE Lighting 1615-504 Oracle In-Line LED Amplifier

Brand : ORACLE Lighting

MPN : 1615-504

AlternatePartNumber : orl1615-504

UPC : 161550420134

Product Department : Lights

Product Category : Light Accessories and Wiring

BoxQuantity : 1

Length : 9.0 inches

Width : 9.0 inches

Height : 4.0 inches

Weight : 1.0 lb

Prop65 : Yes

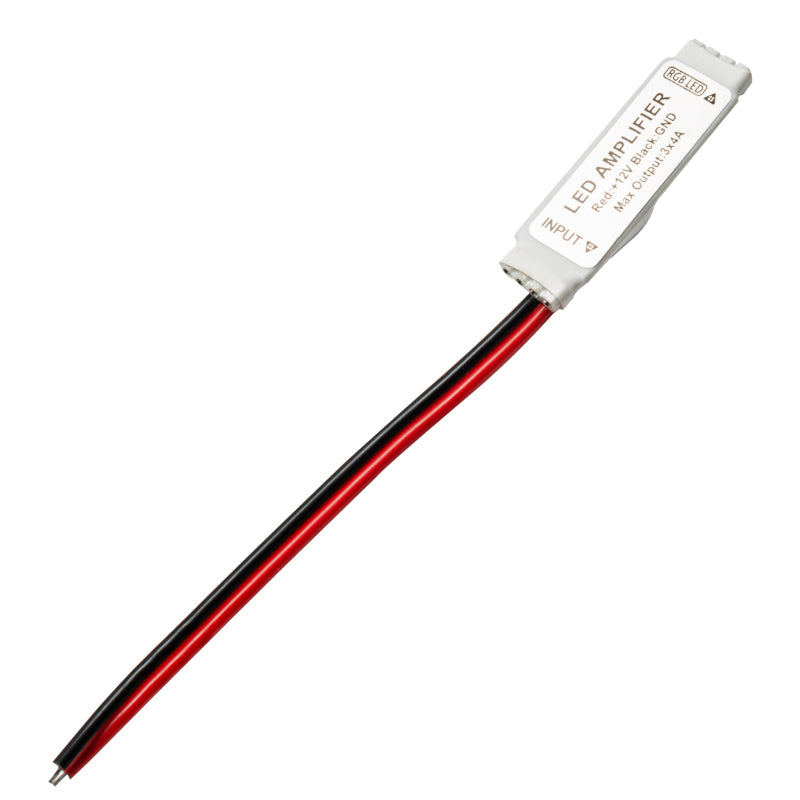

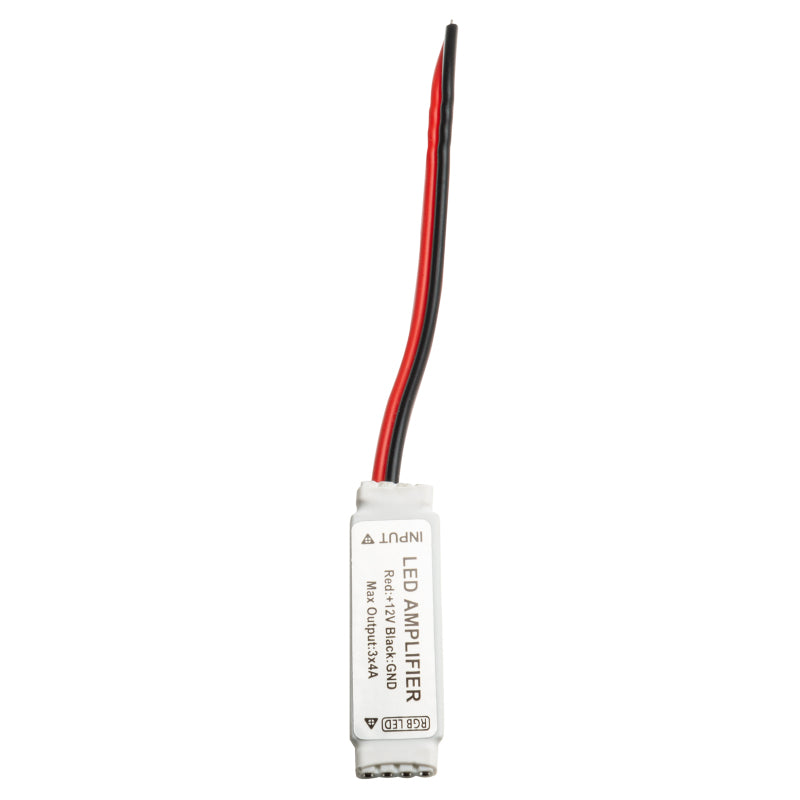

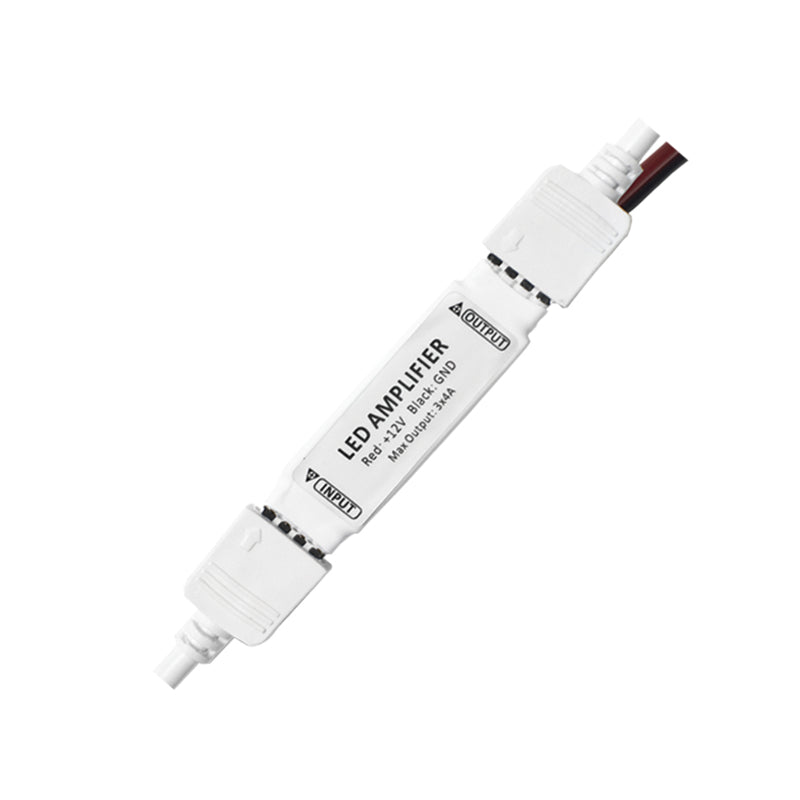

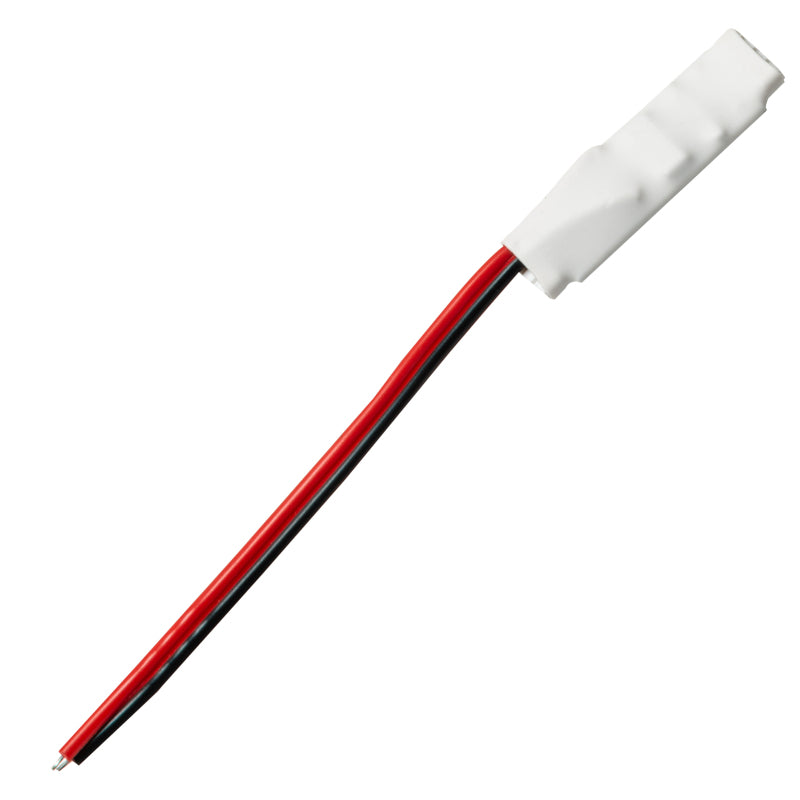

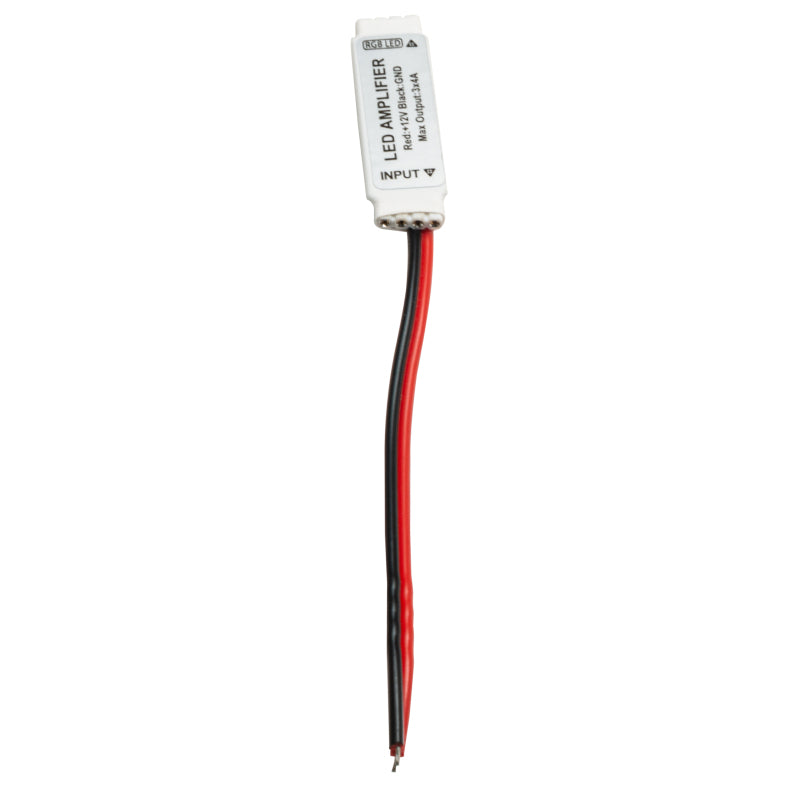

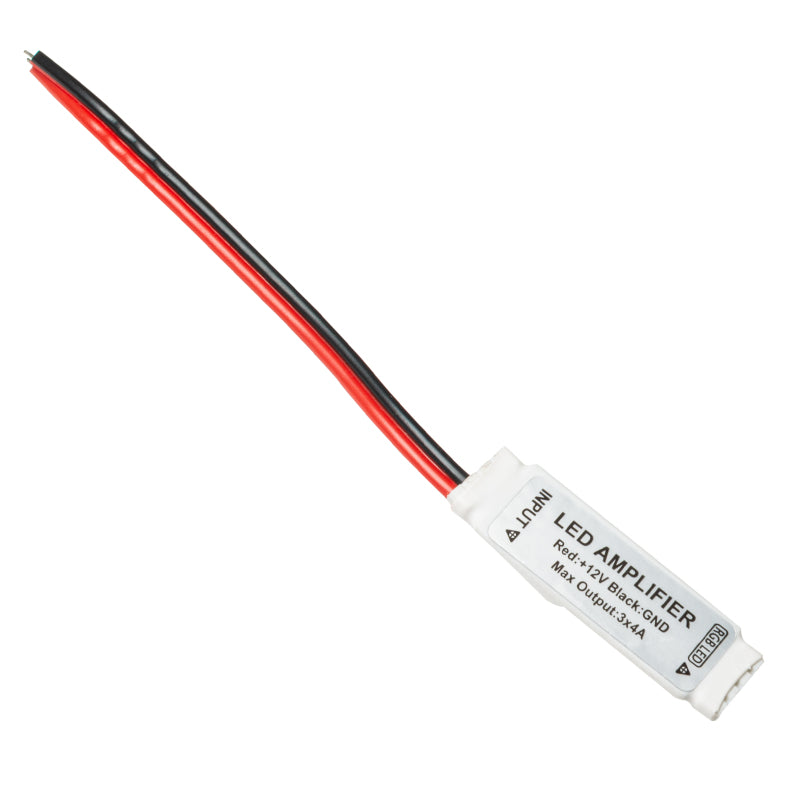

In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty
