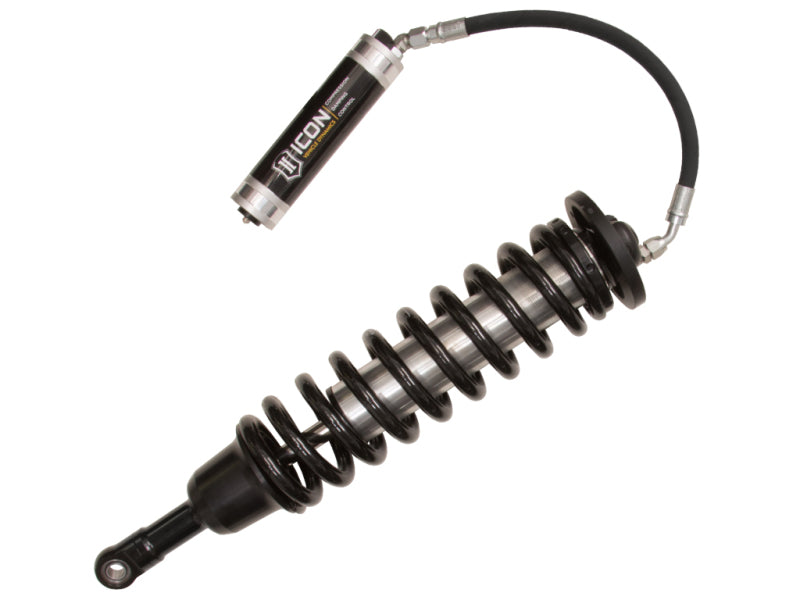

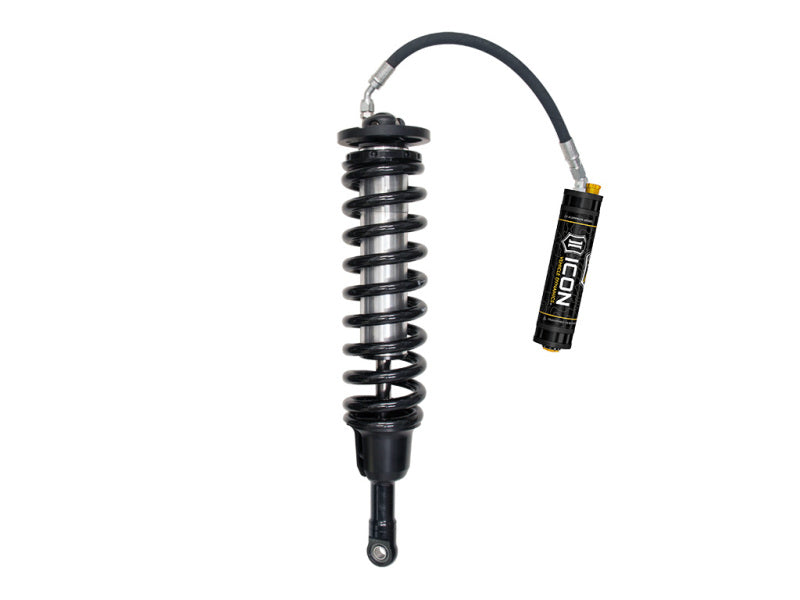

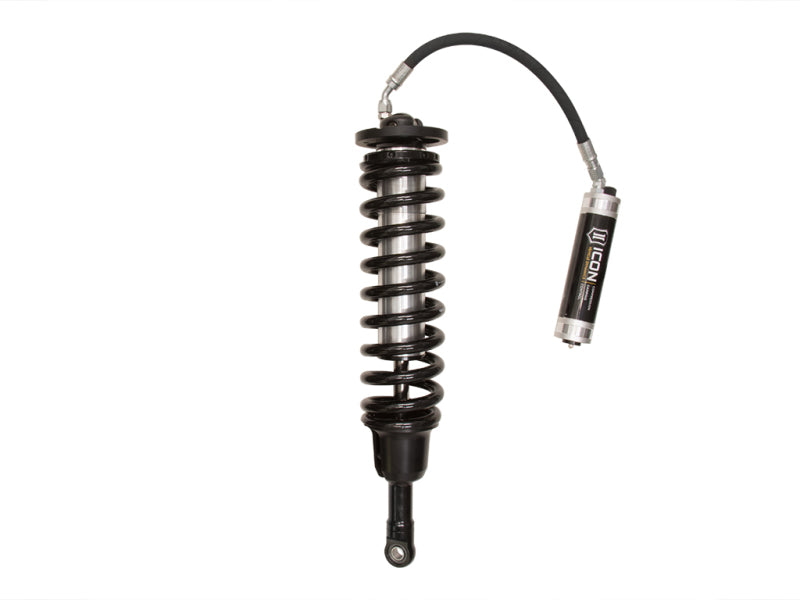

ICON 95000R 10-14 fits Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit - Passenger Side

ICON 95000R 10-14 fits Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit - Passenger Side

Brand : ICON

MPN : 95000R

AlternatePartNumber : ico95000R

UPC : 00840103408996

Product Department : Suspension

Product Category : Coilovers

BoxQuantity : 1

Length : 38.4 inches

Width : 14.3 inches

Height : 9.7 inches

Weight : 50.8 lbs

Prop65 : Yes

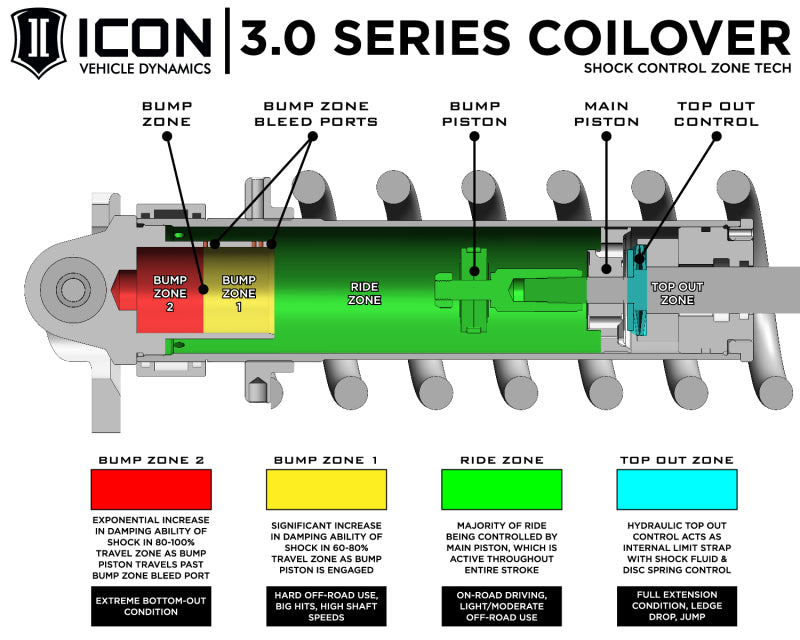

The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, our shock starts with a true 3" main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control, great response, and unparalleled ride performance. To achieve even more control for extreme off-road use, we added an additional internal hydraulic system (much like an external mounted hydraulic bumpstop) that produces the extreme forces required during the last 40% of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, "Easy to Adjust" Compression Damping Control Valve, that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.
Installation Instructions
Installation Instructions
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2010-2014	Ford	F-150	SVT Raptor
