Hotchkis 4009 68-74 fits Chevrolet Nova / 71-74 Pontiac Ventura Subframe Connect

Hotchkis 4009 Hotchkis 68-74 fits Chevrolet Nova / 71-74 Pontiac Ventura Subframe Connectors

Brand : Hotchkis

MPN : 4009

AlternatePartNumber : hot4009

UPC : 00810361037504

Product Department : Suspension

Product Category : Chassis Bracing

BoxQuantity : 1

Length : 49.1 inches

Width : 11.8 inches

Height : 5.0 inches

Weight : 31.4 lbs

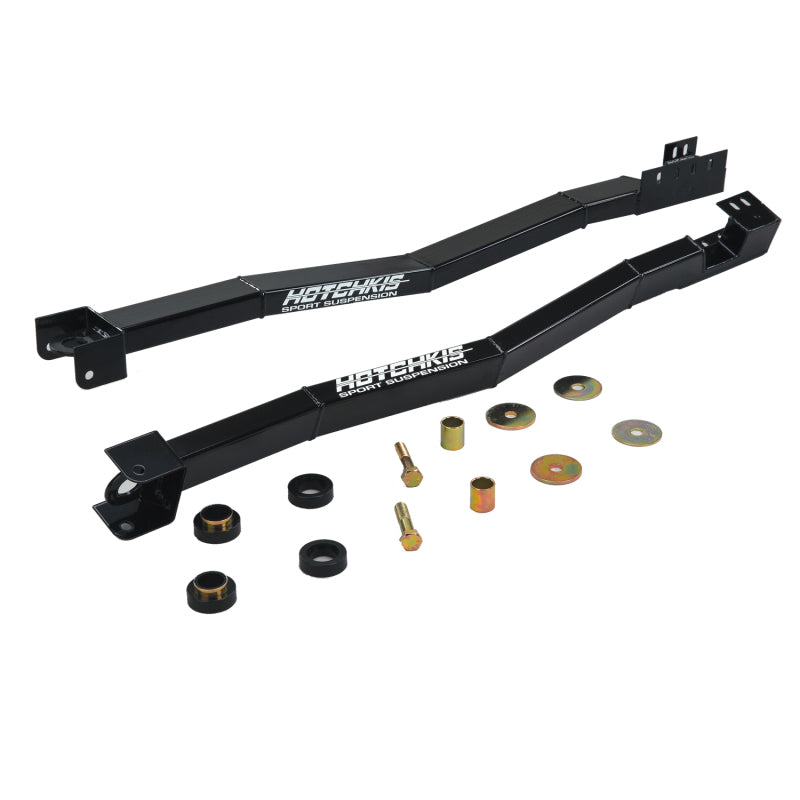

Hotchkis Sport Suspension 4009 1968-1974 Nova Sub Frame Connectors. The Hotchkis Performance sub-frame connectors for 68-74 X-Body cars are designed to add rigidity to the chassis to improve vehicle performance by reducing chassis flex. Fabricated from 1.5 in. x 2.5 in. .120 wall rectangular steel these TIG-welded connectors are powder coated gloss black and include urethane front body mounts. Installation of these connectors does not require modifications or cutting of the floor boards. The rear mount is a weld in while the front mount is a bolt in with the option to weld. This is a must have finishing touch for any high performance application. Features: Powder Coated Gloss Black Finish TIG-welded Fabricated from 1.5 in. x 2.5 in. .120 wall rectangular steel. Urethane front body mount included Rear mount is weld in front mount is bolt in with option to weld. Does not require cutting or modifying the floor. Benefits: Improves vehicle handling. Improves vehicle traction. Reduced chassis flex.
Installation Instructions
Certificate of Origin
Warranty


This Part Fits:

Year	Make	Model	Submodel
1968	Chevrolet	Chevy II	Nova
1969-1974	Chevrolet	Nova	Base
1973-1974	Chevrolet	Nova	Custom
1969	Dodge	Charger	500
1971-1974	Pontiac	Ventura	Base
1973-1974	Pontiac	Ventura	Custom
1974	Pontiac	Ventura	GTO
