Firestone 9242 Air Tank 5 Gallon 7in. x 34in. (6) 3/8in. NPT Ports 150 PSI Max -

Firestone 9242 Firestone Air Tank 5 Gallon 7in. x 34in. (6) 3/8in. NPT Ports 150 PSI Max - Black (WR17609242)

Brand : Firestone

MPN : 9242

AlternatePartNumber : WR17609242

UPC : 767555107935

Product Department : Suspension

Product Category : Air Tanks

BoxQuantity : 1

Length : 33.8 inches

Width : 8.8 inches

Height : 8.4 inches

Weight : 17.3 lbs

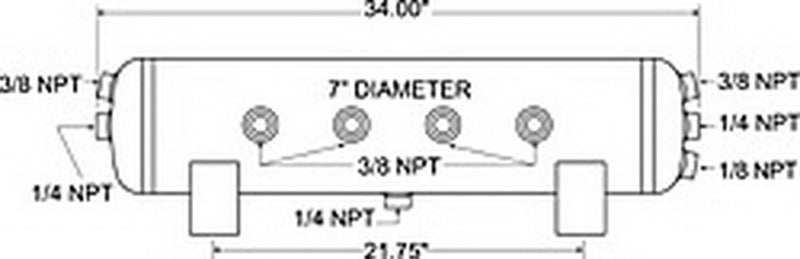

This Firestone air tank provides a source of compressed air for an air spring system. Tank has 5-gallon capacity, (6) 3/8 in. NPT ports, (3) 1/4 ports and (1) 1/8 port. Tank is enamel coated, tested to be SAE J10 compliant and capable of 150 psi. Features: Provides compressed air source for an air helper spring system Allows for faster inflation of air springs Holds 5 gallons of compressed air Includes (6) 3/8 in., (3) 1/4 in. and (1) 1/8 NPT ports Steel tank with brass fittings Resists corrosion with internal and external enamel coating Is SAE J10 compliant Operates at up to 150 psi of maximum pressure Specs: Tank dimensions: 34 in. long x 7 in. diameter Tank capacity: 5 gallons Inflation ports: 3/8 in., 1/4 in. and 1/8 in. NPT PSI: Maximum of 150 2-Year limited warranty
