Edelbrock 1563 Supercharger Stage 1 - Street Kit 2010-2014 fits Chevrolet Camaro 6 2L LS3 Manual

Edelbrock 1563 Supercharger Stage 1 - Street Kit 2010-2014 fits Chevrolet Camaro 6 2L LS3 Manual

Brand : Edelbrock

MPN : 1563

AlternatePartNumber : ede1563

UPC : 85347015634

Product Department : Forced Induction

Product Category : Superchargers

BoxQuantity : 1

Length : 48.0 inches

Width : 40.0 inches

Height : 20.0 inches

Weight : 206.0 lbs

Prop65 : Yes

CARB Legal : YES

EO Number : D-215-89

EPA Status : Compliant

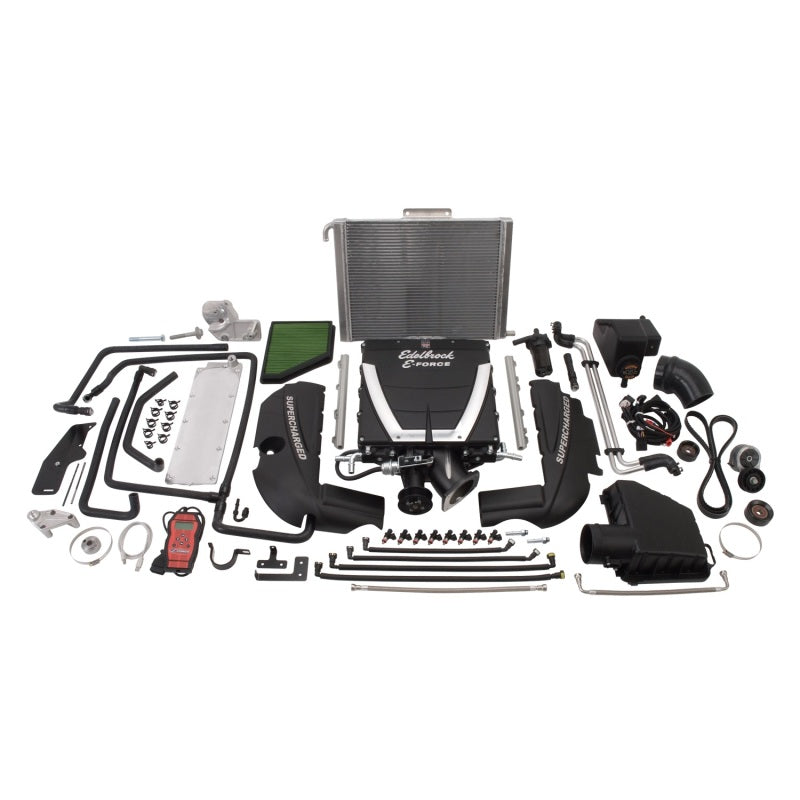

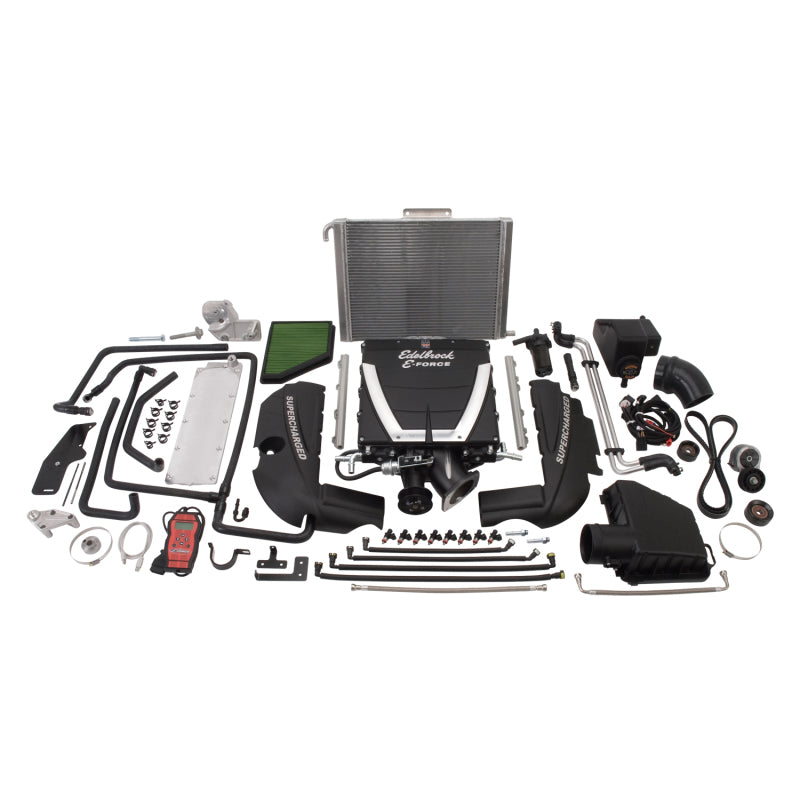

The Edelbrock supercharger Stage 1 Street System part #1563 for 2010-15 Camaro SS with a manual transmission increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1563 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2010-2015	Chevrolet	Camaro	SS
