Edelbrock 1536 Supercharger Stage 1 - Street Kit 2005-2010 fits Chrysler Lx and Lc 6 1L Hemi w/ Tuner

Edelbrock 1536 Supercharger Stage 1 - Street Kit 2005-2010 fits Chrysler Lx and Lc 6 1L Hemi w/ Tuner

Brand : Edelbrock

MPN : 1536

AlternatePartNumber : ede1536

UPC : 85347015368

Product Department : Forced Induction

Product Category : Superchargers

BoxQuantity : 1

Length : 44.0 inches

Width : 44.0 inches

Height : 32.0 inches

Weight : 198.0 lbs

Prop65 : Yes

CARB Legal : YES

EO Number : D-215-89

EPA Status : Compliant

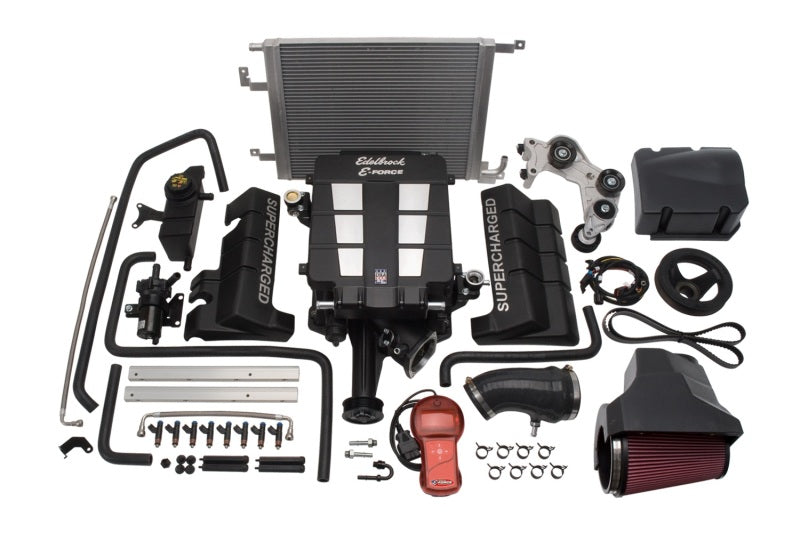

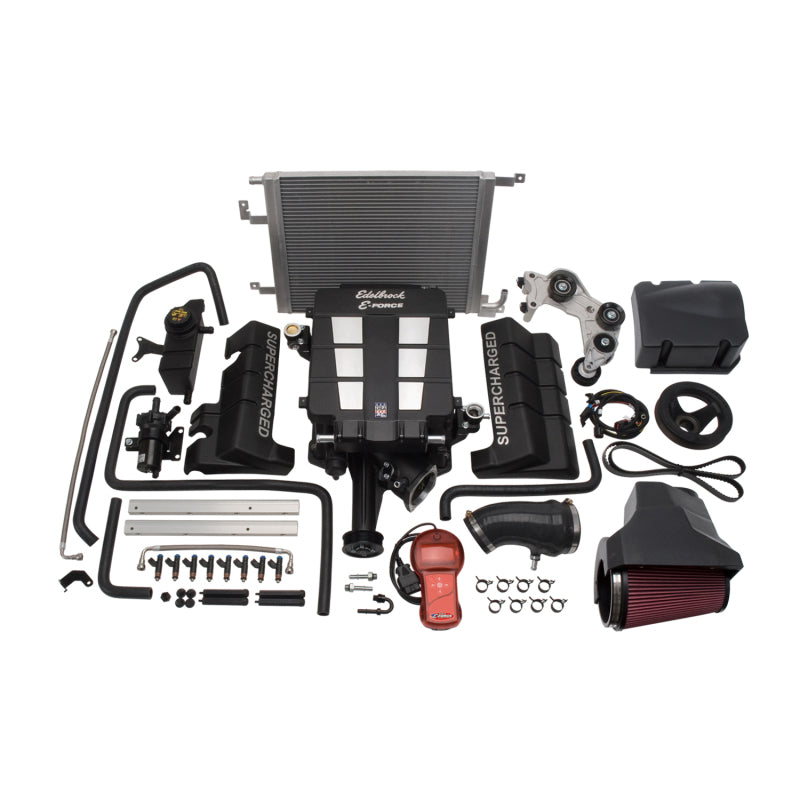

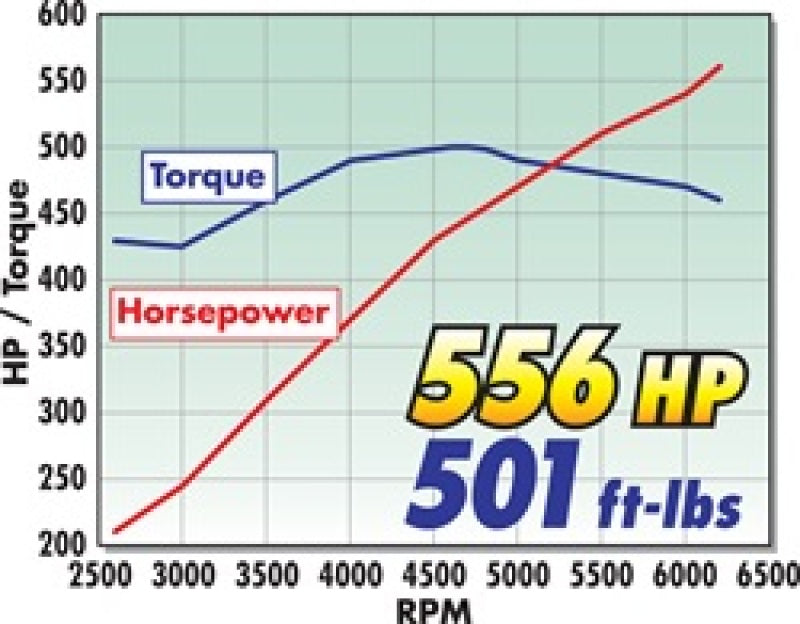

The Edelbrock Supercharger System part #1536 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger producing 556 horsepower and 501 ft-lbs of torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Installation Instructions
Material Safety Data Sheet
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2005-2010	Chrysler	300	C SRT8
2008-2010	Dodge	Challenger	SRT8
2006-2010	Dodge	Charger	SRT8
2006-2008	Dodge	Magnum	SRT8
