Edelbrock 1580 Supercharger Stage 1 - Street Kit 2005-2009 fits Ford Mustang 4 6L 3V w/ Tuner

Edelbrock 1580 Supercharger Stage 1 - Street Kit 2005-2009 fits Ford Mustang 4 6L 3V w/ Tuner

Brand : Edelbrock

MPN : 1580

AlternatePartNumber : ede1580

UPC : 85347015801

Product Department : Forced Induction

Product Category : Superchargers

BoxQuantity : 1

Length : 43.0 inches

Width : 33.5 inches

Height : 21.0 inches

Weight : 173.0 lbs

Prop65 : Yes

CARB Legal : YES

EO Number : D-215-89

EPA Status : Compliant

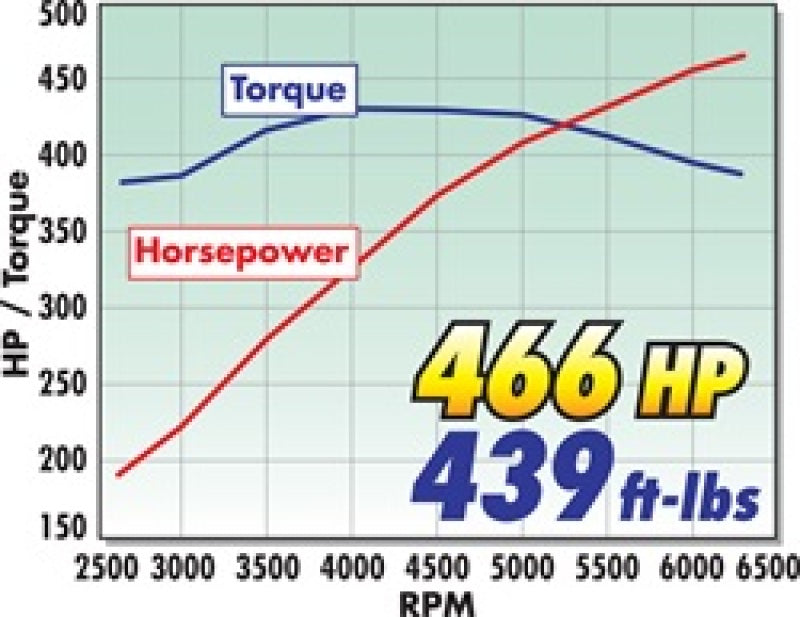

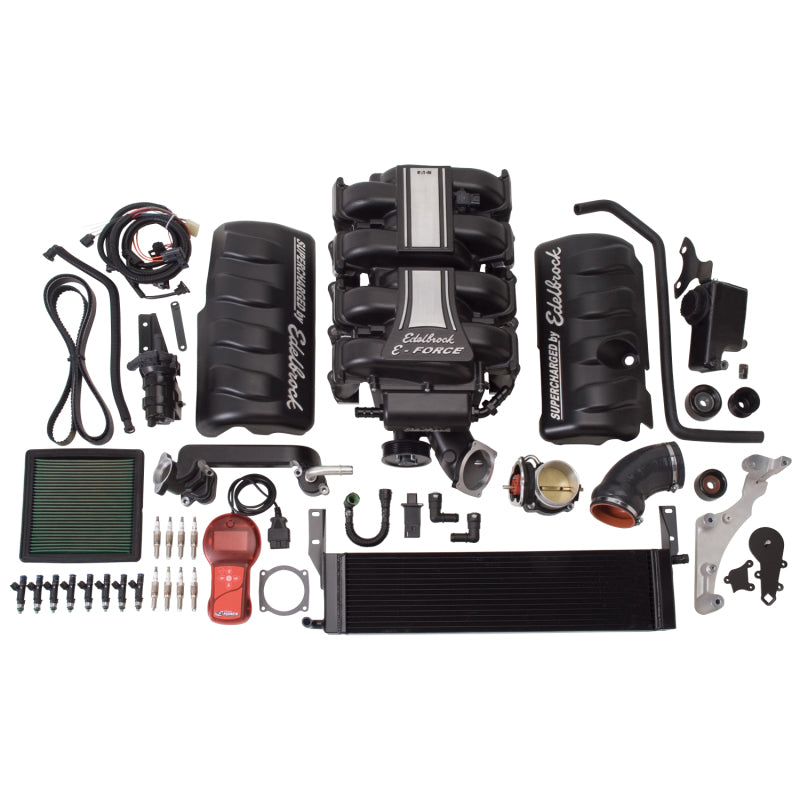

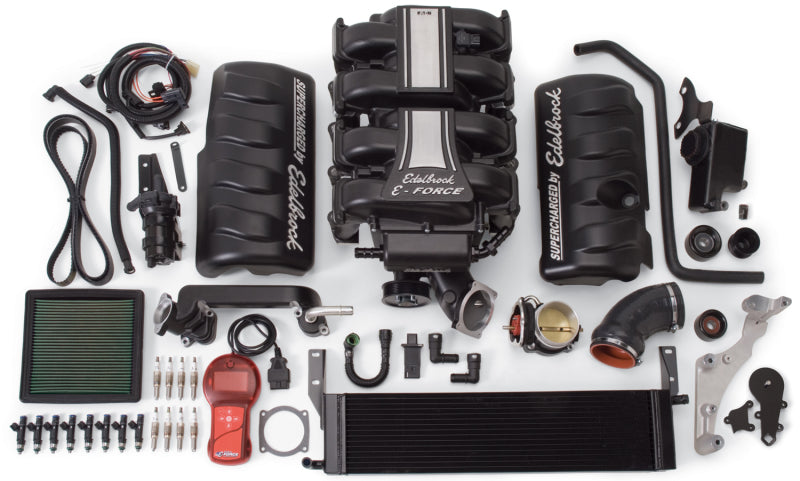

The Edelbrock supercharger Stage 1 Street system part #1580 for 2005-09 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1580 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Technical Drawing
Technical Drawing
Installation Instructions
Installation Instructions
Material Safety Data Sheet


This Part Fits:

Year	Make	Model	Submodel
2008-2009	Ford	Mustang	Bullitt
2005-2009	Ford	Mustang	GT
2007-2008	Ford	Mustang	Shelby GT
