Edelbrock 15570 SC 2015 fits Ford F-150 5.0L V8 Engines No Tuner

Edelbrock 15570 SC 2015 fits Ford F-150 5.0L V8 Engines No Tuner

Brand : Edelbrock

MPN : 15570

AlternatePartNumber : ede15570

UPC : 085347155705

Product Department : Forced Induction

Product Category : Superchargers

BoxQuantity : 1

Length : 28.0 inches

Width : 15.0 inches

Height : 15.0 inches

Weight : 82.0 lbs

Prop65 : Yes

CARB Legal : YES

EO Number : D-215-97

EPA Status : Compliant

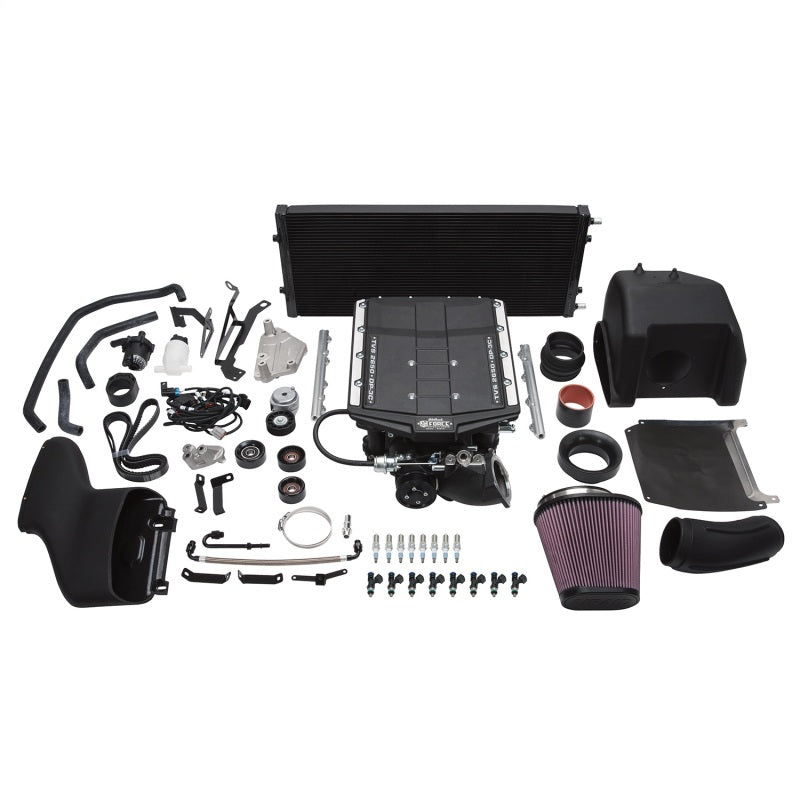

The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Material Safety Data Sheet
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2015-2017	Ford	F-150	King Ranch
2015-2017	Ford	F-150	Lariat
2015-2017	Ford	F-150	Platinum
2016-2017	Ford	F-150	SSV
2015-2017	Ford	F-150	XL
2015-2017	Ford	F-150	XLT
