Edelbrock 29785 fits SBC Victor EFI Manifold

Edelbrock 29785 fits SBC Victor EFI Manifold

Brand : Edelbrock

MPN : 29785

AlternatePartNumber : ede29785

UPC : 85347297856

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 23.63 inches

Width : 14.75 inches

Height : 7.5 inches

Weight : 24.2 lbs

Prop65 : Yes

Not CARB Legal

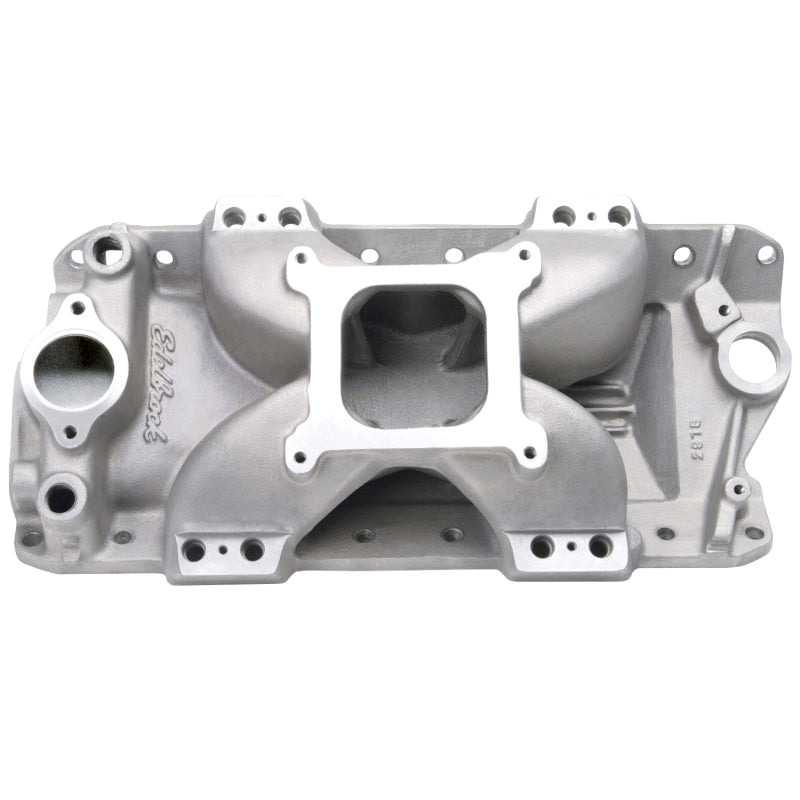

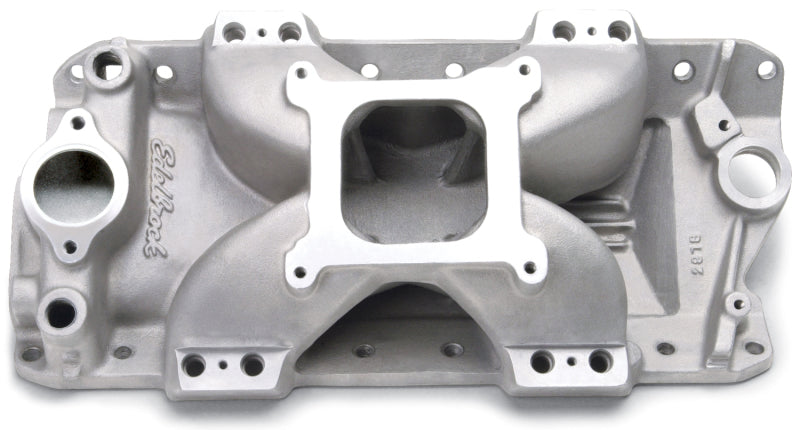

Edelbrock part #29785 Victor E EFI intake manifold for small-block Chevy has a larger and deeper plenum than the #2975. It provides maximum power in the higher rpm range for engines with standard port location iron and aluminum cylinder heads. Runners have a tapered cross-section, and plenty of material at the manifold port exit allows port matching to the small port heads used in NHRA Super Stock classes. 1" or 2" spacers can be used for performance tuning. The large plenum and runner volume of this intake manifold is also ideal for alcohol-fueled applications. The Edelbrock Victor E EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

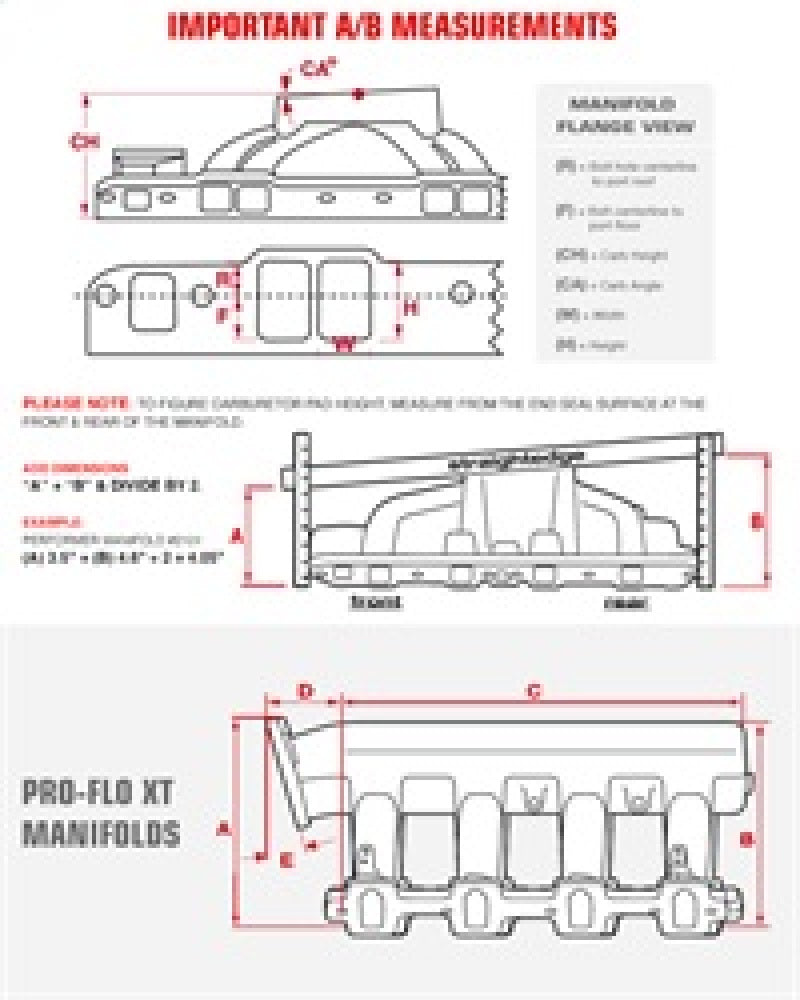

Installation Instructions
Installation Instructions
