Edelbrock 22750 Max-Fire Distributor fits Chevy 262-502 V8 w/ Fixed Collar (excl Tall Deck Blocks and 348/409)

Edelbrock 22750 Max-Fire Distributor fits Chevy 262-502 V8 w/ Fixed Collar (excl Tall Deck Blocks and 348/409)

Brand : Edelbrock

MPN : 22750

AlternatePartNumber : ede22750

UPC : 085342227506

Product Department : Ignition

Product Category : Distributors

BoxQuantity : 1

Length : 17.63 inches

Width : 6.31 inches

Height : 5.94 inches

Weight : 4.97 lbs

Prop65 : Yes

Not CARB Legal

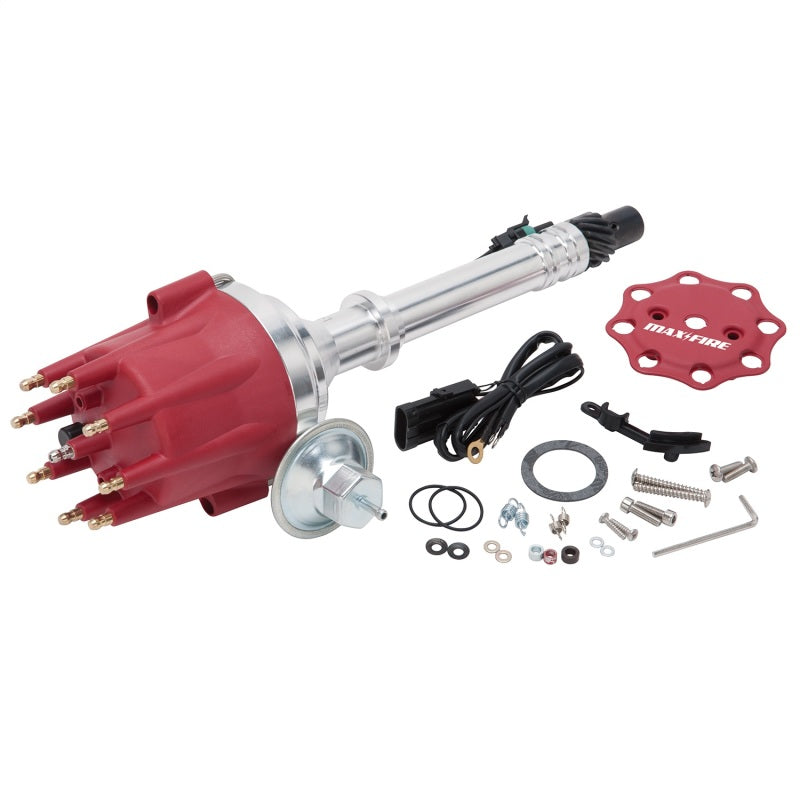

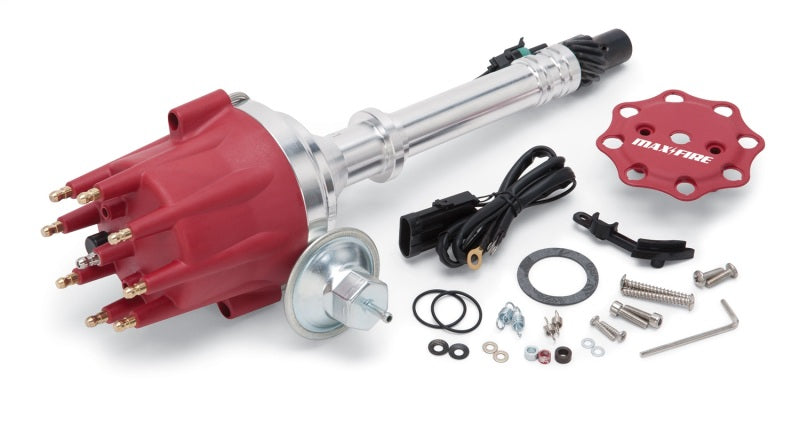

Edelbrock part #22750 Max-Fire distributor for Chevy V-8 engines (except Tall deck blocks and 348/409) is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1973-1974,1976-1985,1987-1991	Avanti	II	Base
1985	Avanti	II	GT
1977,1980	Buick	Century	Base
1977-1979	Buick	Century	Custom
1980	Buick	Century	Estate
1978-1980	Buick	Century	Limited
1978-1979	Buick	Century	Special
1978	Buick	Century	Sport
1991-1993	Buick	Commercial Chassis	Base
1978	Buick	LeSabre	Base
1978	Buick	LeSabre	Custom
1977-1980	Buick	Regal	Base
1978-1980	Buick	Regal	Limited
1977	Buick	Regal	SR
1992-1993	Buick	Roadmaster	Base
1991-1993	Buick	Roadmaster	Estate Wagon
1992-1993	Buick	Roadmaster	Limited
1977-1979	Buick	Skylark	Base
1978-1979	Buick	Skylark	Custom
1977-1979	Buick	Skylark	S
1978	Buick	Skylark	Sport
1977	Buick	Skylark	SR
1975	Checker	Marathon	Aerobus
1975-1982	Checker	Marathon	Base
1975-1982	Checker	Marathon	Deluxe
1970-1975	Chevrolet	Bel Air	Base
1970-1972	Chevrolet	Biscayne	Base
1973-1974	Chevrolet	Blazer	Base
1970,1972	Chevrolet	Brookwood	Base
1978-1980	Chevrolet	C10	Big Ten
1975-1981	Chevrolet	C10	Cheyenne
1981-1986	Chevrolet	C10	Custom
1975-1980	Chevrolet	C10	Custom Deluxe
1981	Chevrolet	C10	Deluxe
1975-1986	Chevrolet	C10	Scottsdale
1975-1986	Chevrolet	C10	Silverado
1972-1974	Chevrolet	C10 Pickup	Base
1973-1974	Chevrolet	C10 Suburban	Base
1981-1986	Chevrolet	C10 Suburban	Custom
1975-1980	Chevrolet	C10 Suburban	Custom Deluxe
1981	Chevrolet	C10 Suburban	Deluxe
1975-1980,1982,1984-1986	Chevrolet	C10 Suburban	Scottsdale
1975-1980,1982-1986	Chevrolet	C10 Suburban	Silverado
1975-1981	Chevrolet	C20	Cheyenne
1981-1986	Chevrolet	C20	Custom
1975-1980	Chevrolet	C20	Custom Deluxe
1981	Chevrolet	C20	Deluxe
1975-1986	Chevrolet	C20	Scottsdale
1975-1986	Chevrolet	C20	Silverado
1974	Chevrolet	C20 Pickup	Base
1973-1974	Chevrolet	C20 Suburban	Base
1981-1986	Chevrolet	C20 Suburban	Custom
1975-1980	Chevrolet	C20 Suburban	Custom Deluxe
1981	Chevrolet	C20 Suburban	Deluxe
1975-1980,1982,1984-1986	Chevrolet	C20 Suburban	Scottsdale
1975-1977,1979-1980,1982-1986	Chevrolet	C20 Suburban	Silverado
1975-1981	Chevrolet	C30	Cheyenne
1981-1986	Chevrolet	C30	Custom
1975-1980	Chevrolet	C30	Custom Deluxe
1981	Chevrolet	C30	Deluxe
1975-1986	Chevrolet	C30	Scottsdale
1975-1986	Chevrolet	C30	Silverado
1974	Chevrolet	C30 Pickup	Base
1972-1980	Chevrolet	Camaro	Base
1979-1986	Chevrolet	Camaro	Berlinetta
1985-1986	Chevrolet	Camaro	Iroc-Z
1974-1978	Chevrolet	Camaro	LT
1976-1978	Chevrolet	Camaro	LT Rally Sport
1976-1980	Chevrolet	Camaro	Rally Sport
1972-1973,1975	Chevrolet	Camaro	RS
1981-1986	Chevrolet	Camaro	Sport
1972	Chevrolet	Camaro	SS
1972,1974,1977-1986	Chevrolet	Camaro	Z28
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1970-1972,1986	Chevrolet	Caprice	Base
1973-1986	Chevrolet	Caprice	Classic
1986	Chevrolet	Caprice	Classic Brougham
1976-1978,1981-1982	Chevrolet	Caprice	Classic Estate
1976-1981	Chevrolet	Caprice	Classic Landau
1975-1976,1979-1980	Chevrolet	Caprice	Classic Sport
1973-1974	Chevrolet	Caprice	Estate
1975	Chevrolet	Caprice	Estate Wagon
1970-1972	Chevrolet	Chevelle	Base
1970-1972	Chevrolet	Chevelle	Concours
1970-1972	Chevrolet	Chevelle	Concours Estate
1973	Chevrolet	Chevelle	Deluxe
1970-1972	Chevrolet	Chevelle	Greenbrier
1970-1972	Chevrolet	Chevelle	Malibu
1970-1972	Chevrolet	Chevelle	Nomad
1970-1972	Chevrolet	Chevelle	SS
1972,1974,1977-1982,1984-1986	Chevrolet	Corvette	Base
1982	Chevrolet	Corvette	Collector's Edition
1978,1986	Chevrolet	Corvette	Indianapolis 500 Pace Car
1978	Chevrolet	Corvette	Silver Anniversary Edition
1975-1976	Chevrolet	Corvette	Stingray
1972-1986	Chevrolet	El Camino	Base
1975-1977	Chevrolet	El Camino	Classic
1977-1978,1981-1986	Chevrolet	El Camino	Conquista
1972-1974	Chevrolet	El Camino	Custom
1979-1981	Chevrolet	El Camino	Royal Knight
1972-1986	Chevrolet	El Camino	SS
1983	Chevrolet	G10	Base
1975-1986	Chevrolet	G10	Beauville
1981-1984,1986	Chevrolet	G10	Bonaventure
1975-1986	Chevrolet	G10	Chevy Van
1975-1986	Chevrolet	G10	Sportvan
1974	Chevrolet	G10 Van	Base
1974	Chevrolet	G10 Van	Sportvan
1975-1986	Chevrolet	G20	Beauville
1983-1984	Chevrolet	G20	Bonaventure
1975-1986	Chevrolet	G20	Chevy Van
1978-1981	Chevrolet	G20	Nomad
1975-1986	Chevrolet	G20	Sportvan
1972,1974	Chevrolet	G20 Van	Base
1972,1974	Chevrolet	G20 Van	Sportvan
1975-1986	Chevrolet	G30	Beauville
1983-1984	Chevrolet	G30	Bonaventure
1975-1986	Chevrolet	G30	Chevy Van
1975-1986	Chevrolet	G30	Hi-Cube
1975-1986	Chevrolet	G30	Sportvan
1974	Chevrolet	G30 Van	Base
1974	Chevrolet	G30 Van	Sportvan
1970-1985	Chevrolet	Impala	Base
1975-1977	Chevrolet	Impala	Custom
1976	Chevrolet	Impala	Custom Landau
1981-1982	Chevrolet	Impala	Estate
1977-1979	Chevrolet	Impala	Landau
1976	Chevrolet	Impala	S
1975-1976,1979-1980	Chevrolet	Impala	Sport
1975-1981	Chevrolet	K10	Cheyenne
1981-1986	Chevrolet	K10	Custom
1975-1980	Chevrolet	K10	Custom Deluxe
1981	Chevrolet	K10	Deluxe
1975-1986	Chevrolet	K10	Scottsdale
1975-1986	Chevrolet	K10	Silverado
1974	Chevrolet	K10 Pickup	Base
1973-1974	Chevrolet	K10 Suburban	Base
1981-1986	Chevrolet	K10 Suburban	Custom
1975-1980	Chevrolet	K10 Suburban	Custom Deluxe
1981	Chevrolet	K10 Suburban	Deluxe
1975-1980,1982,1984-1986	Chevrolet	K10 Suburban	Scottsdale
1975-1977,1979-1980,1982-1983,1985-1986	Chevrolet	K10 Suburban	Silverado
1975-1981	Chevrolet	K20	Cheyenne
1981-1986	Chevrolet	K20	Custom
1975-1980	Chevrolet	K20	Custom Deluxe
1981	Chevrolet	K20	Deluxe
1975-1986	Chevrolet	K20	Scottsdale
1975-1983,1985-1986	Chevrolet	K20	Silverado
1973-1974	Chevrolet	K20 Pickup	Base
1973-1974	Chevrolet	K20 Suburban	Base
1981-1986	Chevrolet	K20 Suburban	Custom
1975-1980	Chevrolet	K20 Suburban	Custom Deluxe
1981	Chevrolet	K20 Suburban	Deluxe
1975-1980,1982,1984-1986	Chevrolet	K20 Suburban	Scottsdale
1975-1977,1979-1980,1982-1983,1985-1986	Chevrolet	K20 Suburban	Silverado
1977-1981	Chevrolet	K30	Cheyenne
1981-1986	Chevrolet	K30	Custom
1977-1980	Chevrolet	K30	Custom Deluxe
1981	Chevrolet	K30	Deluxe
1977-1986	Chevrolet	K30	Scottsdale
1977-1986	Chevrolet	K30	Silverado
1973-1974	Chevrolet	K30 Pickup	Base
1976	Chevrolet	K5 Blazer	Base
1975-1980	Chevrolet	K5 Blazer	Cheyenne
1981-1986	Chevrolet	K5 Blazer	Custom
1975,1977-1980	Chevrolet	K5 Blazer	Custom Deluxe
1981	Chevrolet	K5 Blazer	Deluxe
1984	Chevrolet	K5 Blazer	Scottsdale
1978,1980-1986	Chevrolet	K5 Blazer	Silverado
1970-1972	Chevrolet	Kingswood	Base
1970-1972	Chevrolet	Kingswood	Estate
1973-1975	Chevrolet	Laguna	Base
1973	Chevrolet	Laguna	Estate
1975-1976	Chevrolet	Laguna	S3
1974	Chevrolet	Laguna	Type S-3
1973-1981	Chevrolet	Malibu	Base
1974-1983	Chevrolet	Malibu	Classic
1975-1976,1978-1980	Chevrolet	Malibu	Classic Estate
1976-1981	Chevrolet	Malibu	Classic Landau
1977,1979-1980	Chevrolet	Malibu	Classic Sport
1973-1974,1979-1980	Chevrolet	Malibu	Estate
1976,1979	Chevrolet	Malibu	Landau
1979	Chevrolet	Malibu	Police
1977,1979-1980	Chevrolet	Malibu	Sport
1970-1974,1979,1981-1986	Chevrolet	Monte Carlo	Base
1983	Chevrolet	Monte Carlo	CL
1973-1974,1976,1978-1981	Chevrolet	Monte Carlo	Landau
1986	Chevrolet	Monte Carlo	LS
1973,1975-1977	Chevrolet	Monte Carlo	S
1978,1980	Chevrolet	Monte Carlo	Sport
1983-1986	Chevrolet	Monte Carlo	SS
1975-1979	Chevrolet	Monza	2+2
1978-1979	Chevrolet	Monza	2+2 Sport
1976-1979	Chevrolet	Monza	2+2 Spyder
1976,1978-1979	Chevrolet	Monza	Base
1977	Chevrolet	Monza	Mirage
1975,1978-1979	Chevrolet	Monza	S
1978	Chevrolet	Monza	Sport
1977	Chevrolet	Monza	Towne Coupe
1977	Chevrolet	Monza	Towne Coupe Cabriolet
