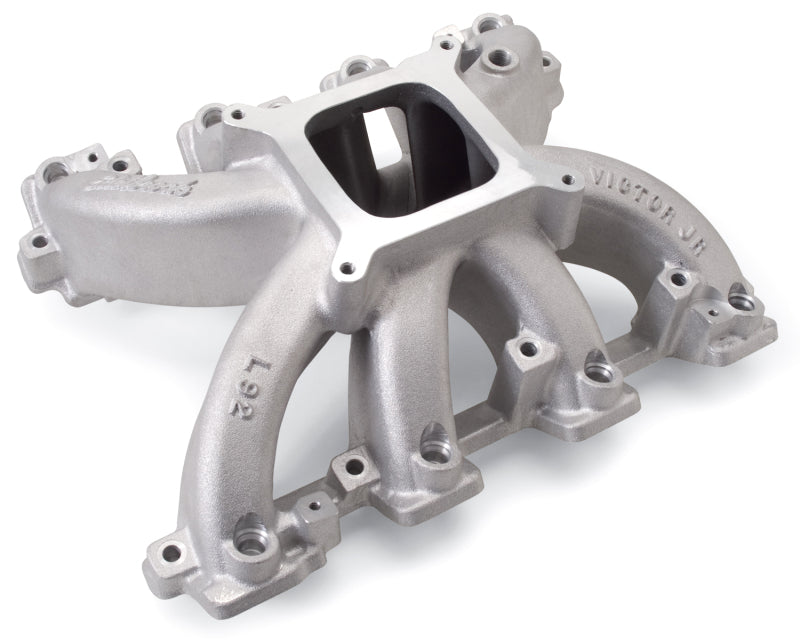

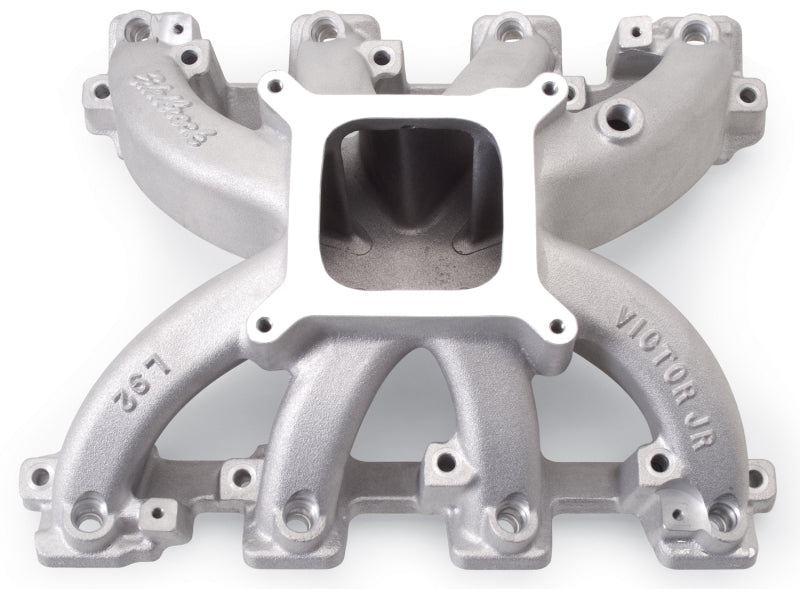

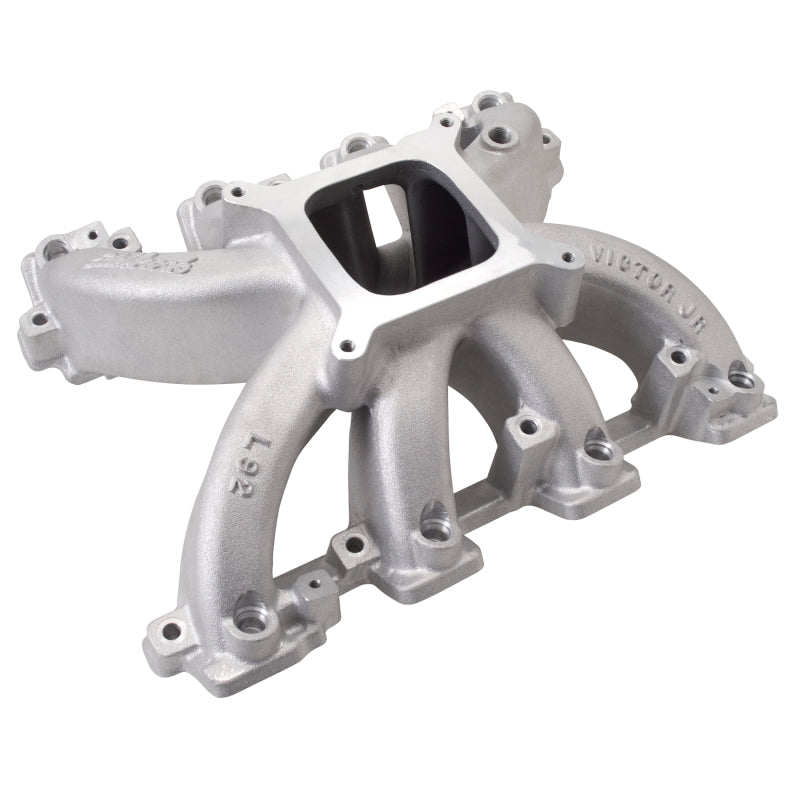

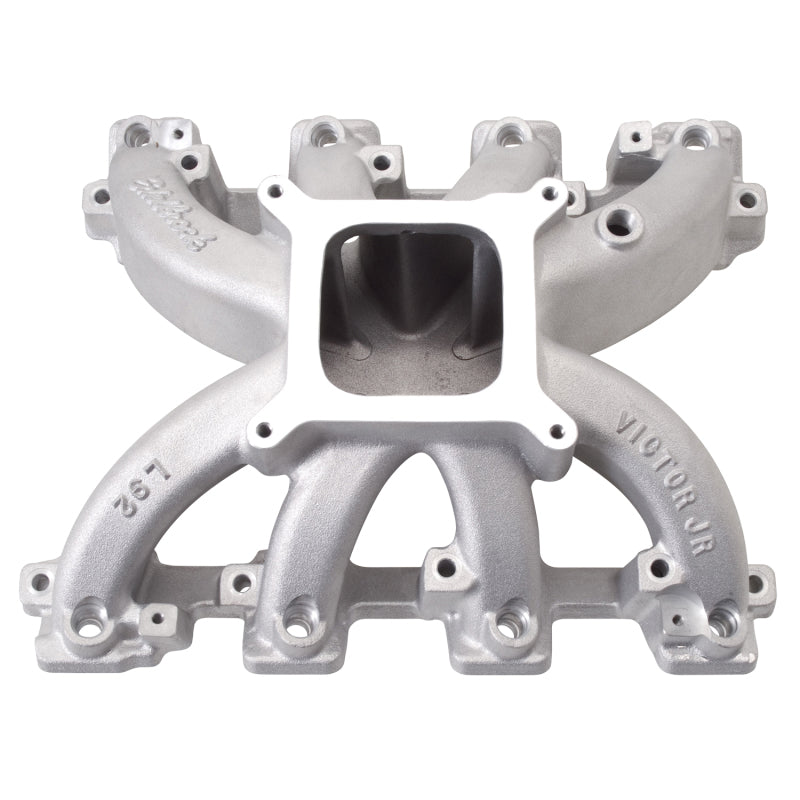

Edelbrock 28455 Manifold Victor Jr fits GM Gen IV* L92 EFI

Edelbrock 28455 Manifold Victor Jr fits GM Gen IV* L92 EFI

Brand : Edelbrock

MPN : 28455

AlternatePartNumber : ede28455

UPC : 85347284559

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 22.68 inches

Width : 14.18 inches

Height : 6.87 inches

Weight : 16.7 lbs

Prop65 : Yes

Not CARB Legal

Edelbrock part #28455 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately).
