Edelbrock 28215 Manifold Super Victor fits GM LS3 V8 EFI 4500 Series Flange

Edelbrock 28215 Manifold Super Victor fits GM LS3 V8 EFI 4500 Series Flange

Brand : Edelbrock

MPN : 28215

AlternatePartNumber : ede28215

UPC : 85347282159

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 22.1 inches

Width : 17.0 inches

Height : 10.0 inches

Weight : 23.4 lbs

Prop65 : Yes

Not CARB Legal

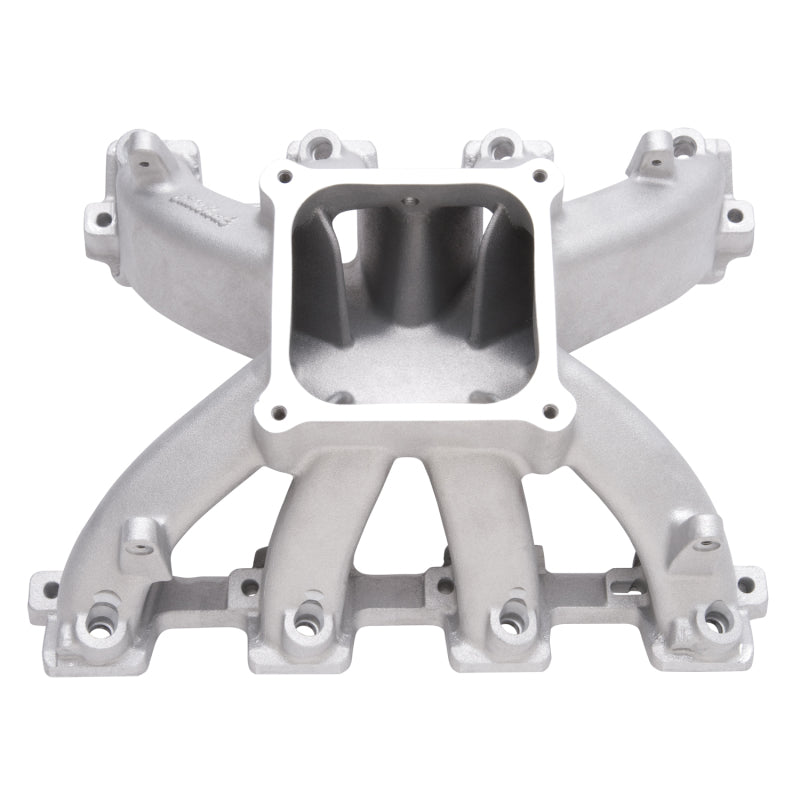

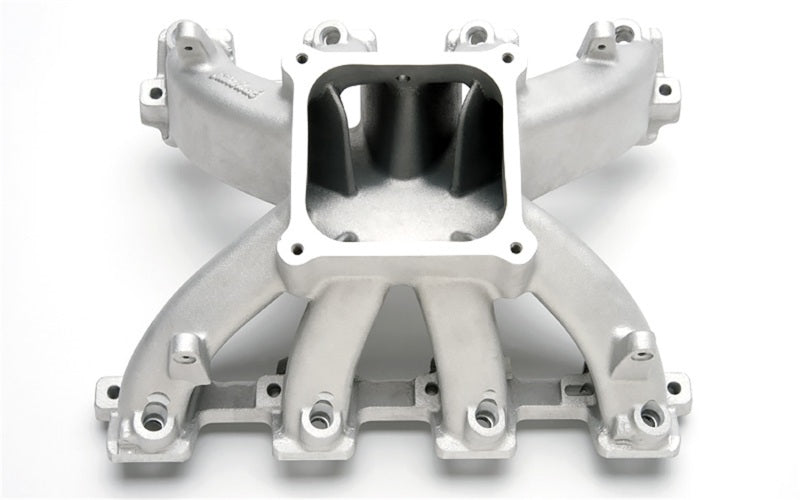

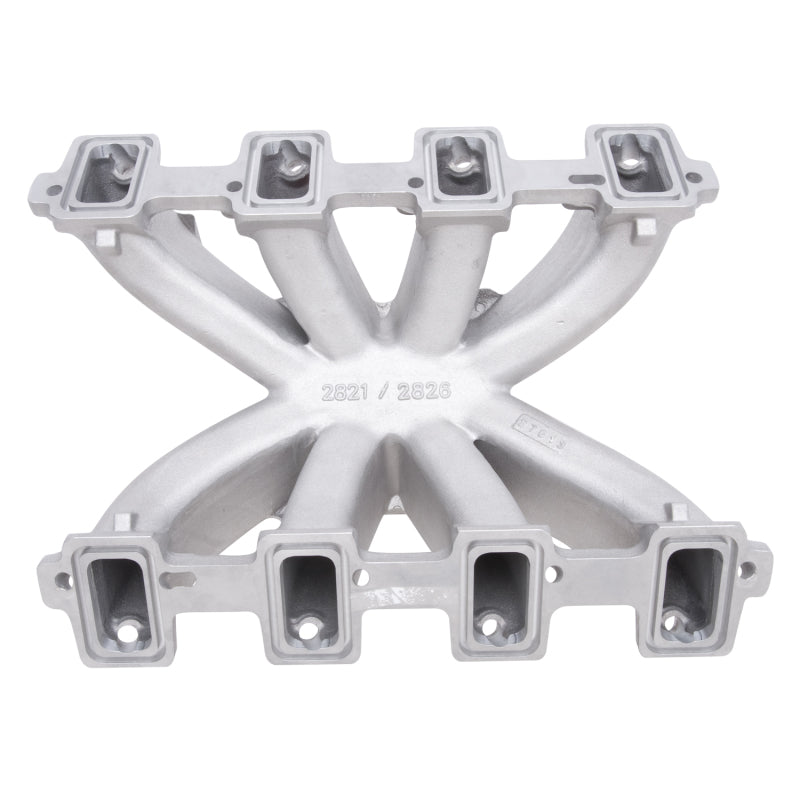

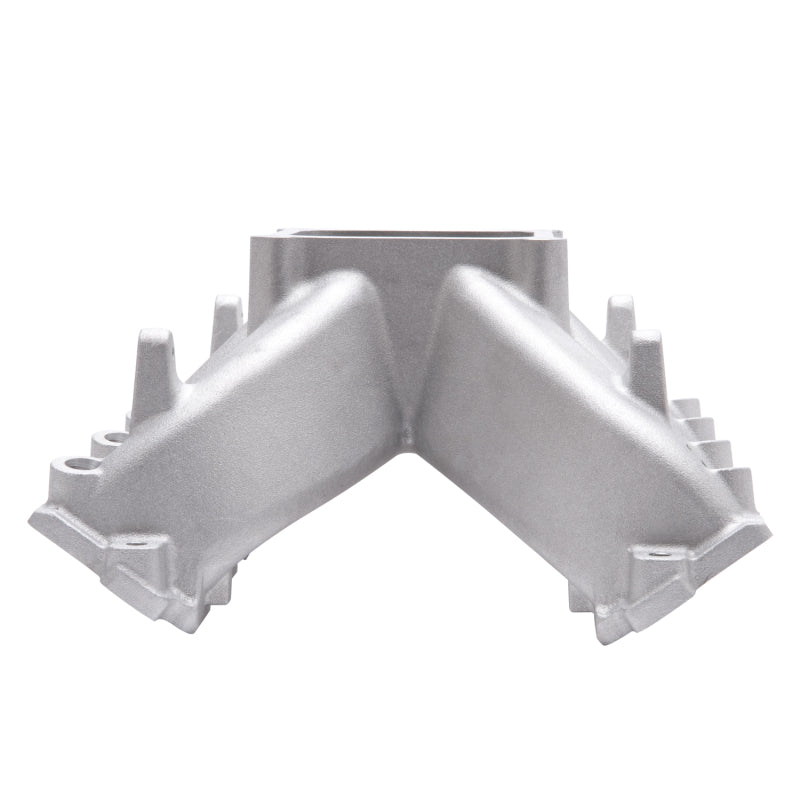

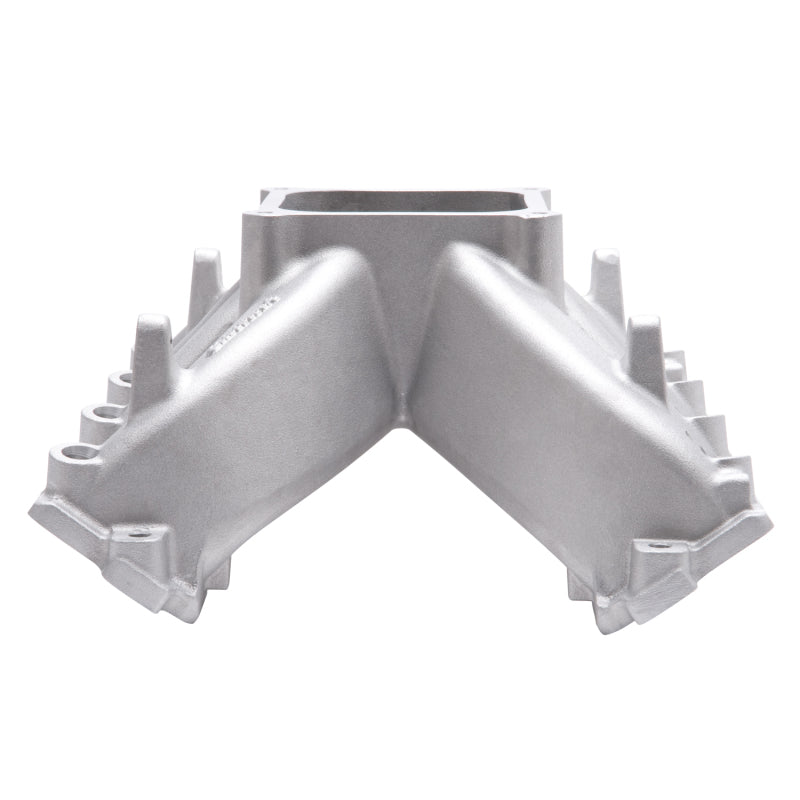

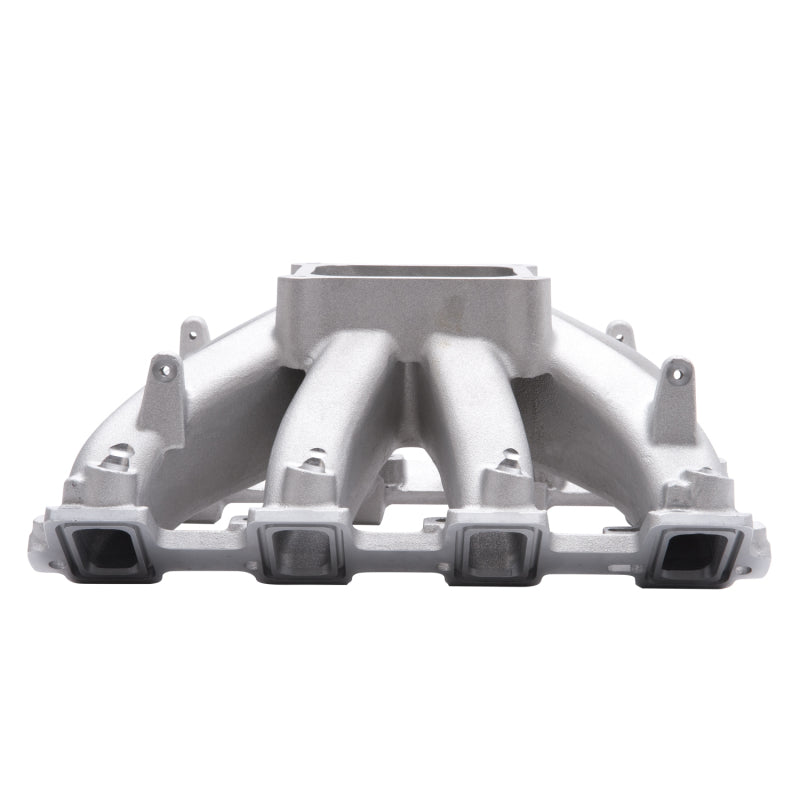

Edelbrock part #28215 Super Victor LS3 EFI intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4500 style EFI large displacement racing engine operating between 3,500 - 7,500 rpm. This Super Victor intake manifold is designed with 24% larger runners than our Victor Jr. #28455 along with a larger 4500 style plenum. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. The manifold also features tapered runners for increased flow at high rpm. The Super Victor 4500 series manifolds can accommodate bores up 2.25". This Super Victor LS3 EFI intake manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended.
Installation Instructions
