Edelbrock 7136 Manifold EFI Pro-Flo XT BB fits Chevy Rect Port Heads As Cast

Edelbrock
Price:
$700.95
Stock:
Re-stocking soon

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

Description

Edelbrock 7136 Manifold EFI Pro-Flo XT BB fits Chevy Rect Port Heads As Cast

Brand : Edelbrock

MPN : 7136

AlternatePartNumber : ede7136

UPC : 85347071364

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 24.25 inches

Width : 14.0 inches

Height : 12.25 inches

Weight : 25.4 lbs

Prop65 : Yes

Not CARB Legal

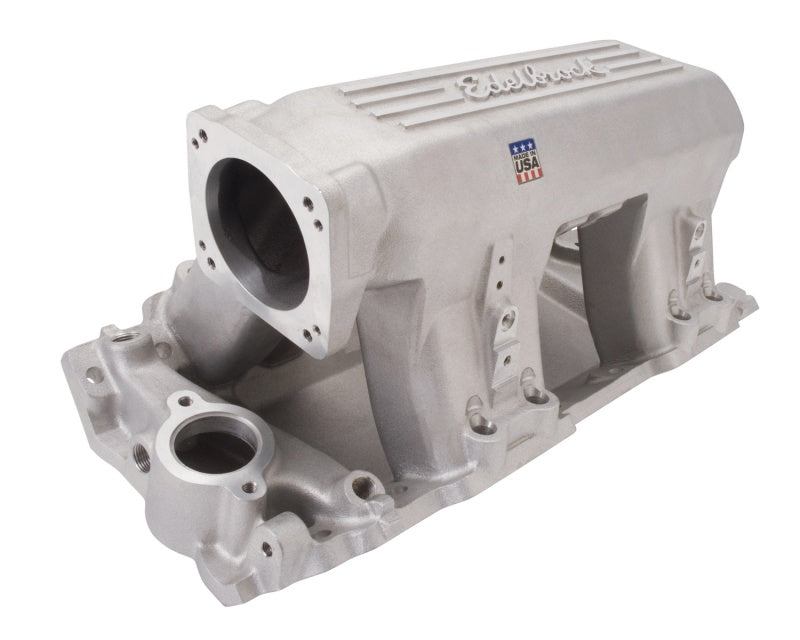

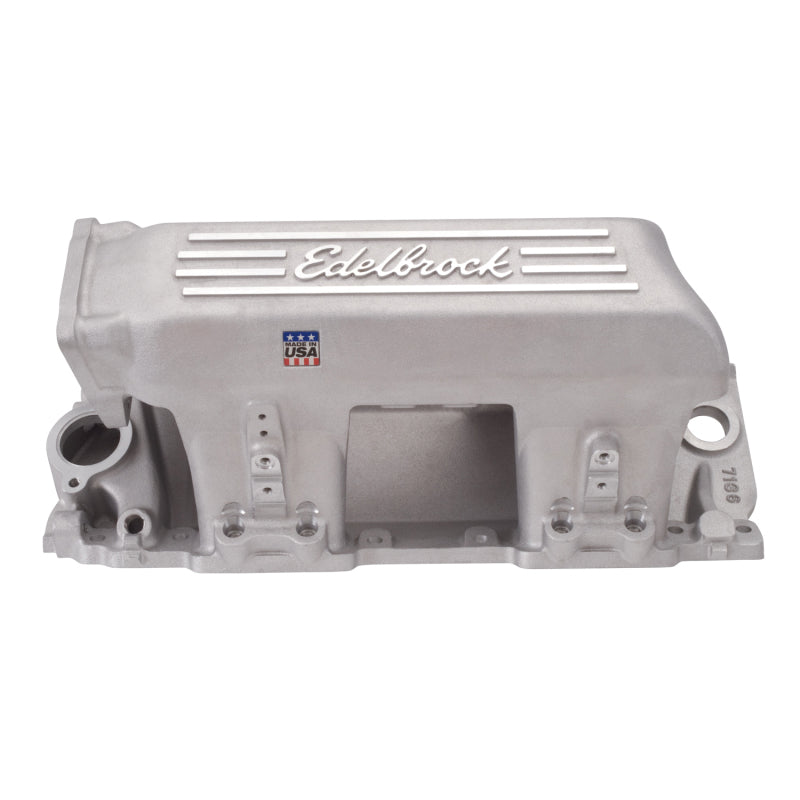

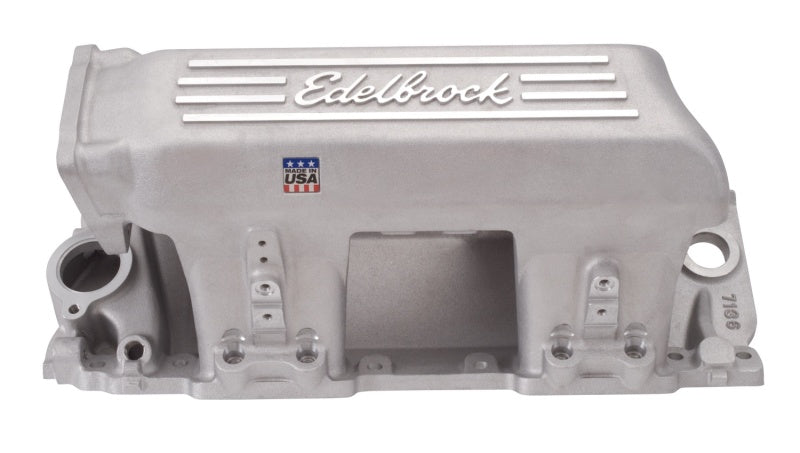

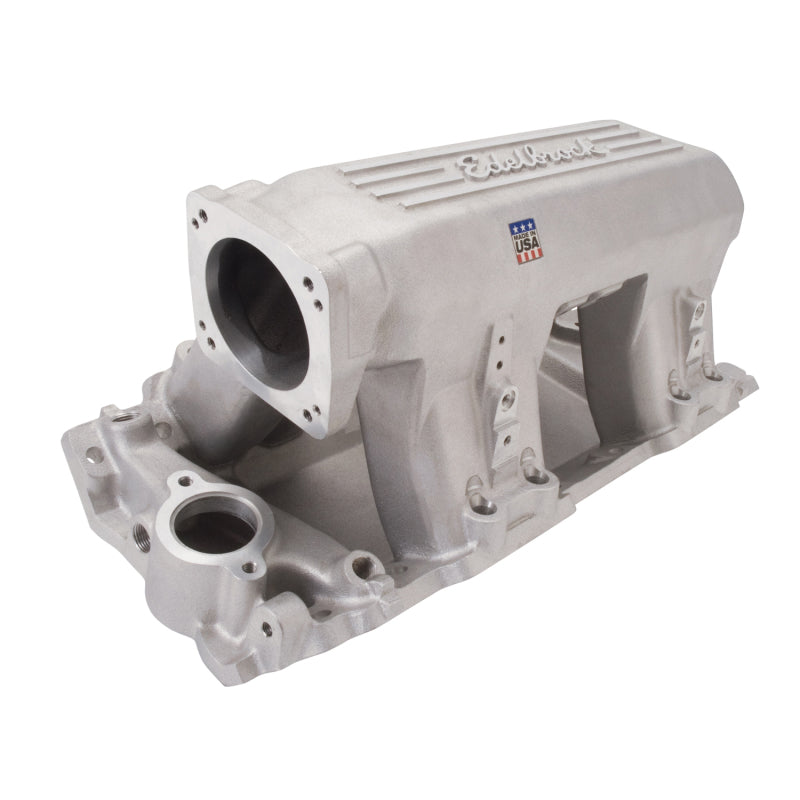

Edelbrock part #7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).
Installation Instructions
Installation Instructions
