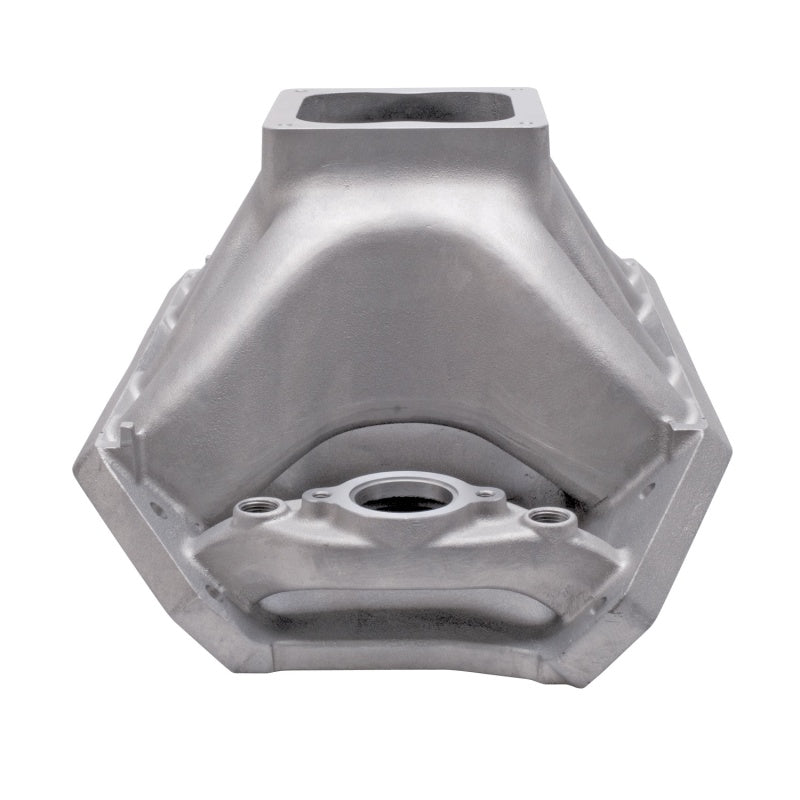

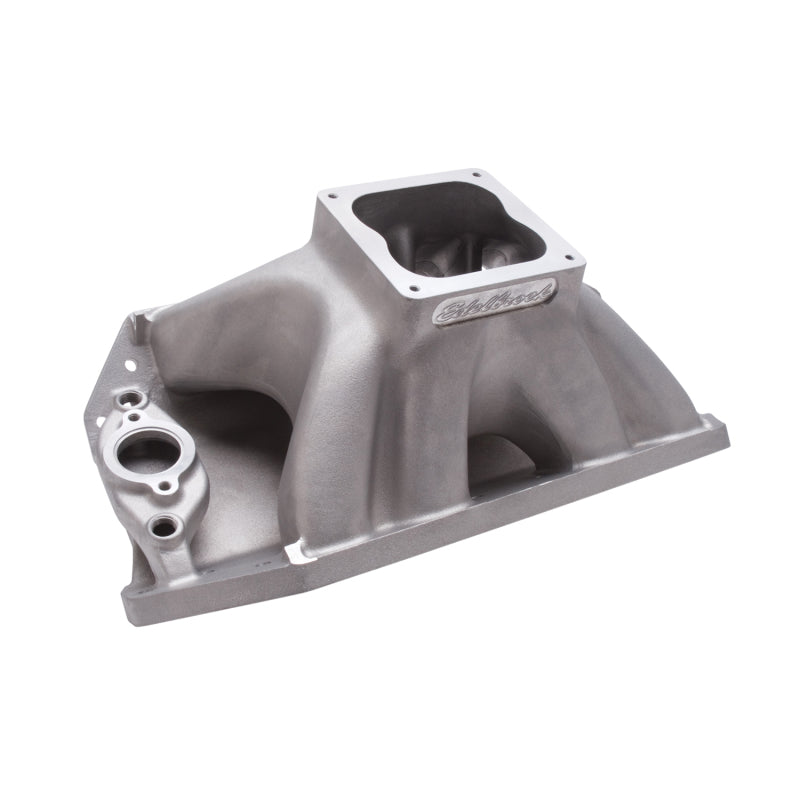

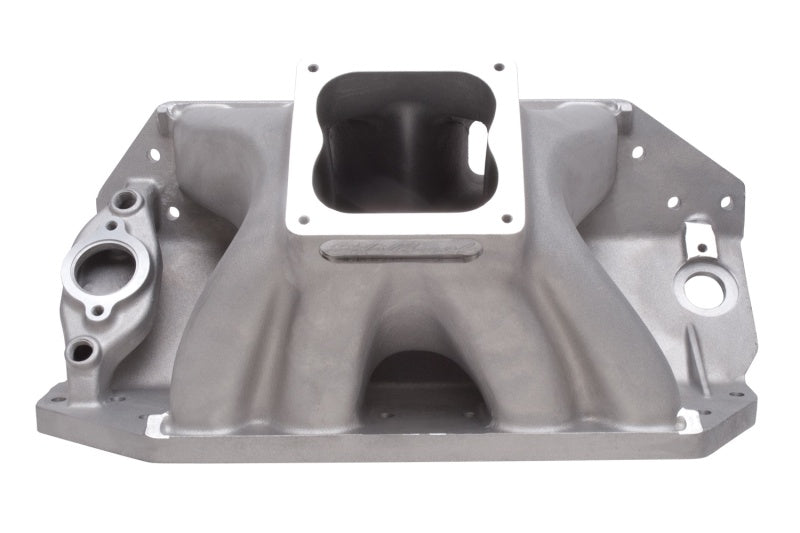

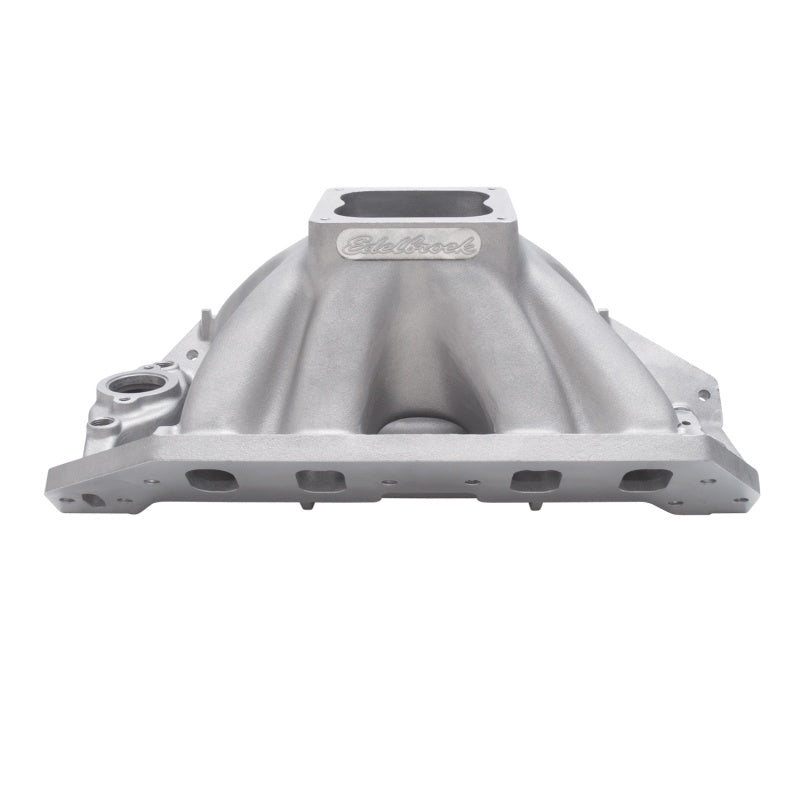

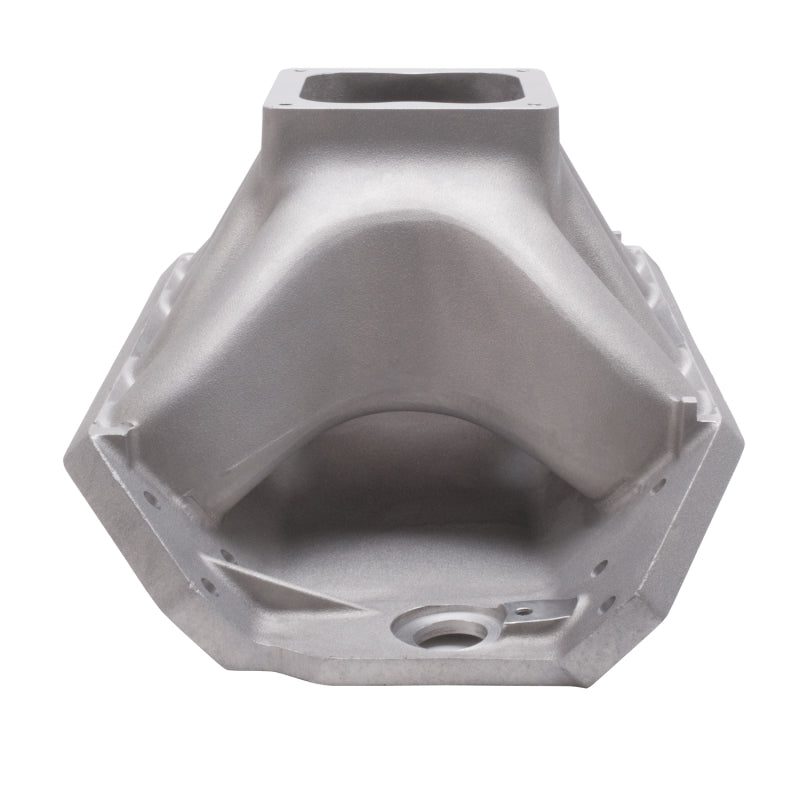

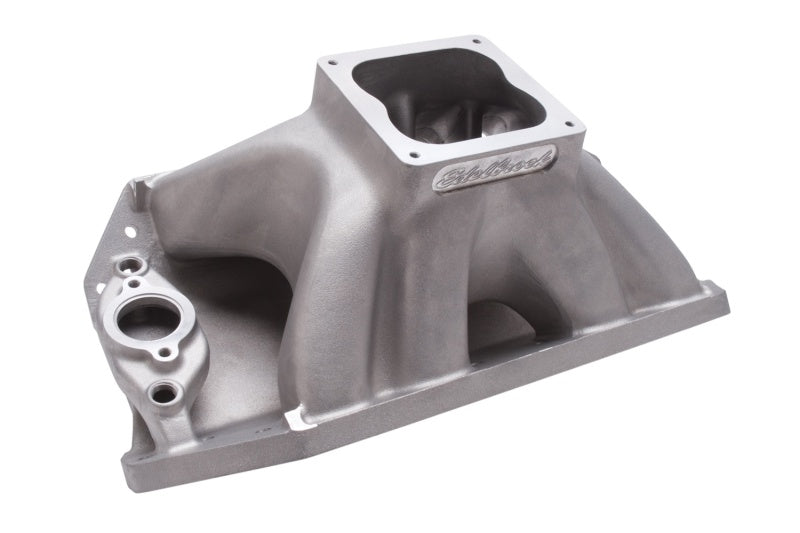

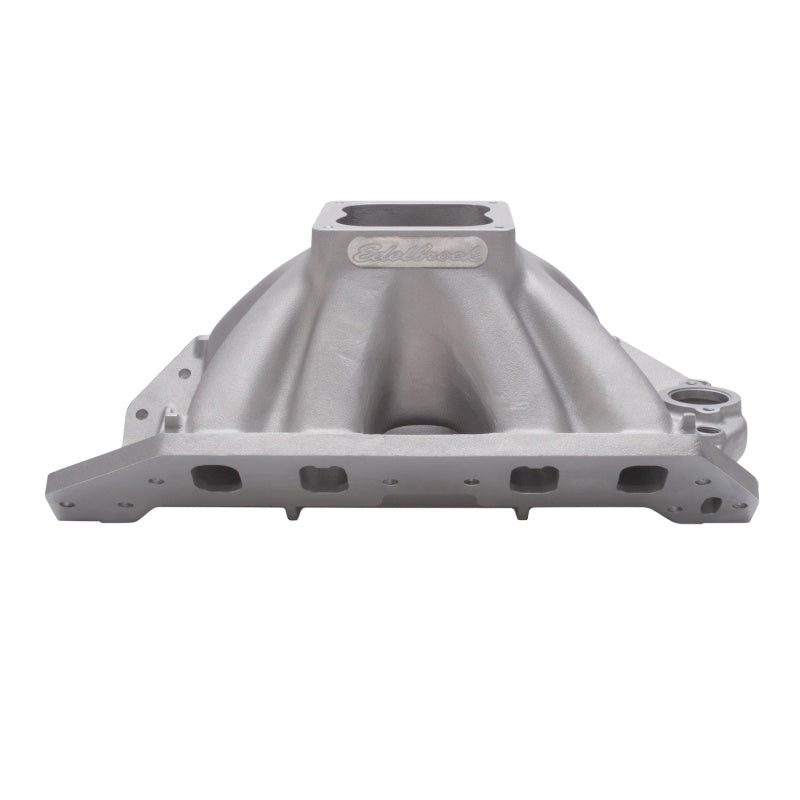

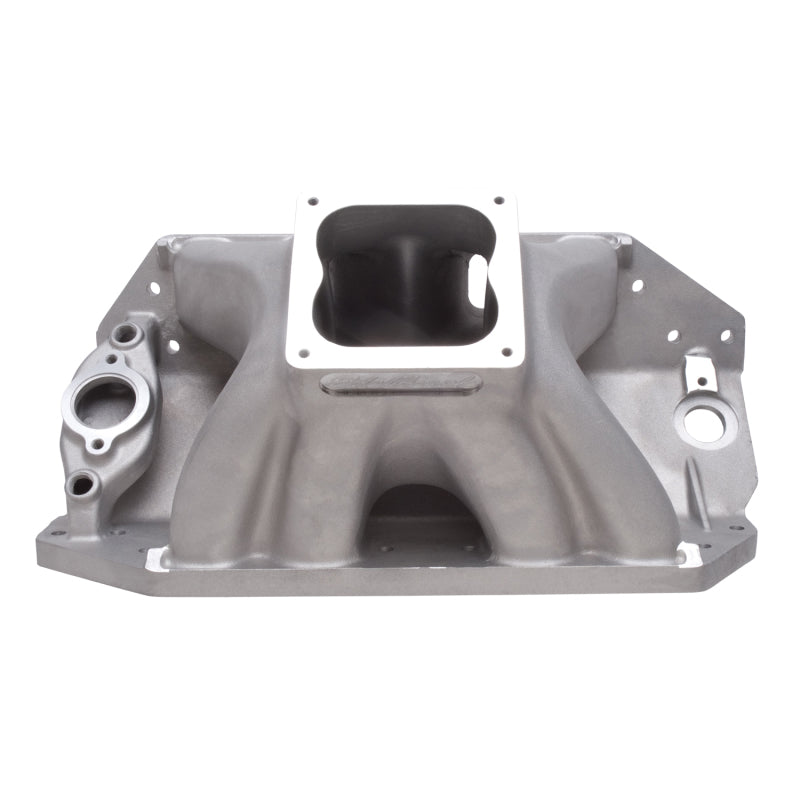

Edelbrock 28002 Manifold Big Victor II BBC w/ Edelbrock Profiler or Dart Big Chief Heads Dominator Flange

Edelbrock 28002 Manifold Big Victor II BBC w/ Edelbrock Profiler or Dart Big Chief Heads Dominator Flange

Brand : Edelbrock

MPN : 28002

AlternatePartNumber : ede28002

UPC : 85347280025

Product Department : Engine Components

Product Category : Intake Manifolds

BoxQuantity : 1

Length : 24.0 inches

Width : 14.75 inches

Height : 14.5 inches

Weight : 41.0 lbs

Prop65 : Yes

Not CARB Legal

Edelbrock part #28002 Big Victor 2 Spread-Port Tall-Deck intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks with Edelbrock Big Victor, Dart Big Chief or Brodix Big Duke cylinder heads, this manifold has an average runner area of approximately 4.75 sq. in. The port exits have been reduced to accommodate the wide variety of intake port sizes and require port matching. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop. All applications are equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification.
