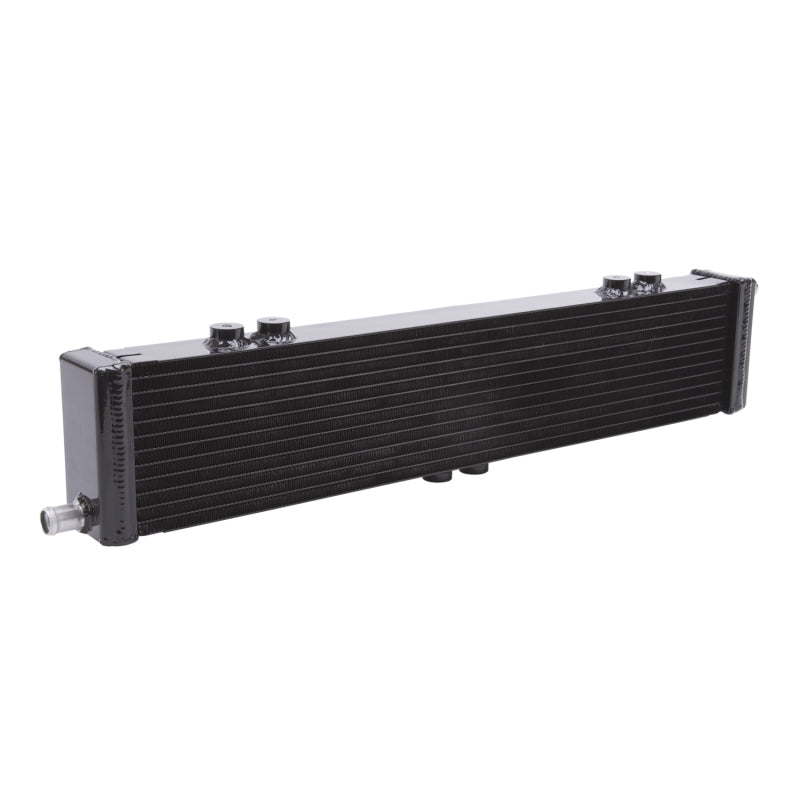

Edelbrock 15406 Heat Exchanger Single Pass Dual Row 22 000 Btu/Hr 26 5In W X 5In H X 2 62In D Black

Edelbrock 15406 Heat Exchanger Single Pass Dual Row 22 000 Btu/Hr 26 5In W X 5In H X 2 62In D Black

Brand : Edelbrock

MPN : 15406

AlternatePartNumber : ede15406

UPC : 85347154067

Product Department : Forced Induction

Product Category : Intercoolers

BoxQuantity : 1

Length : 31.25 inches

Width : 23.25 inches

Height : 7.0 inches

Weight : 9.4 lbs

Prop65 : Yes

Not CARB Legal

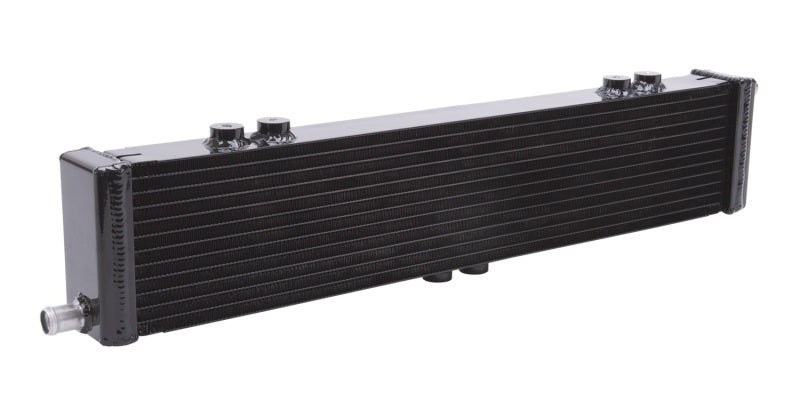

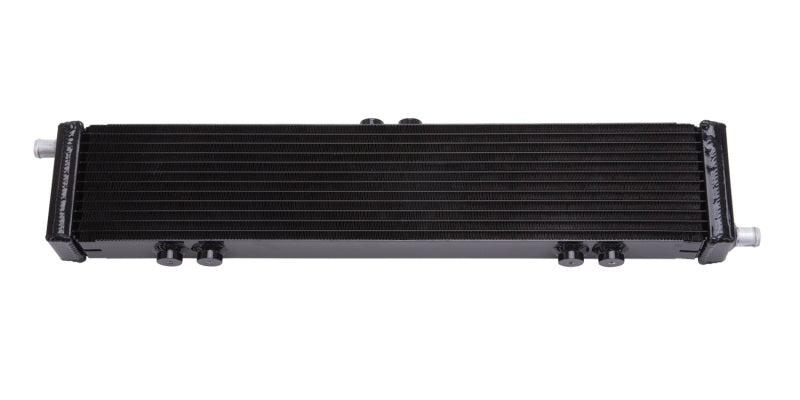

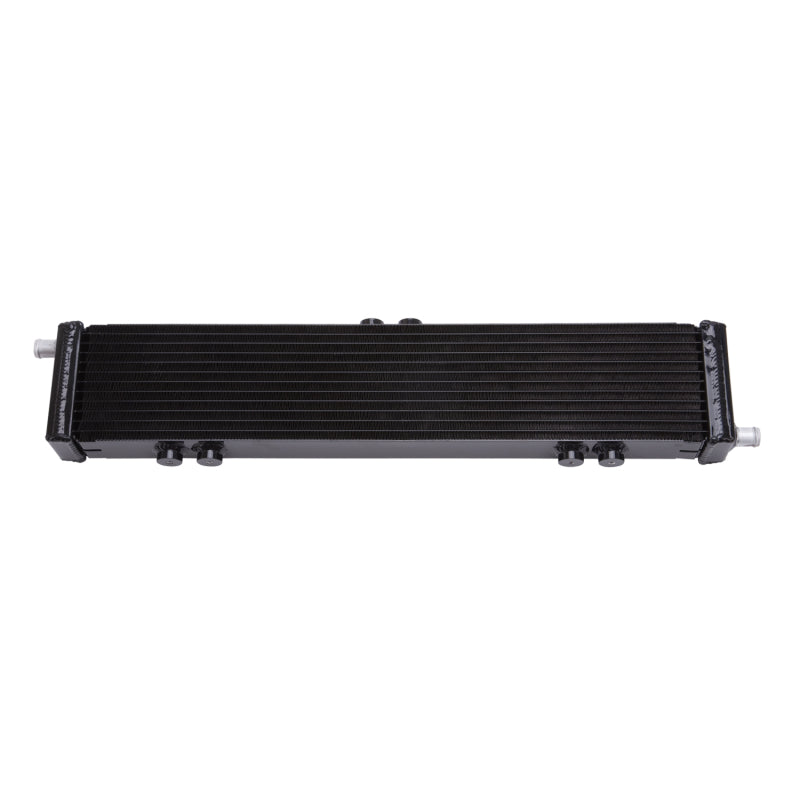

Edelbrock heat exchanger part #15406 is a single pass/two row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15406 is a Single Pass/Two Row Universal Heat Exchanger with the following dimensions (26.5in. W x 5in. H x 2.62in. D) and 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
