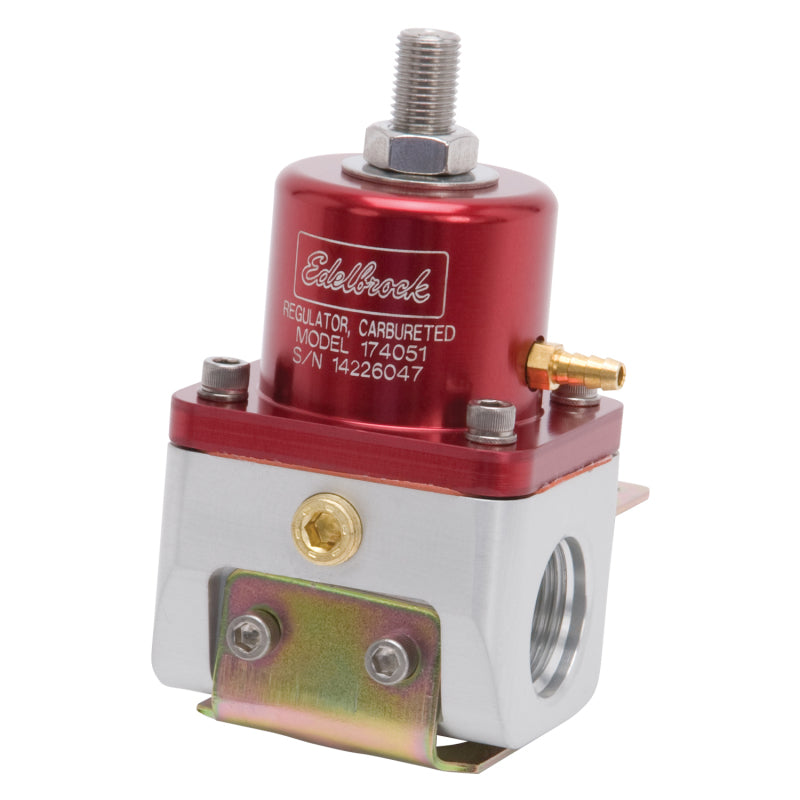

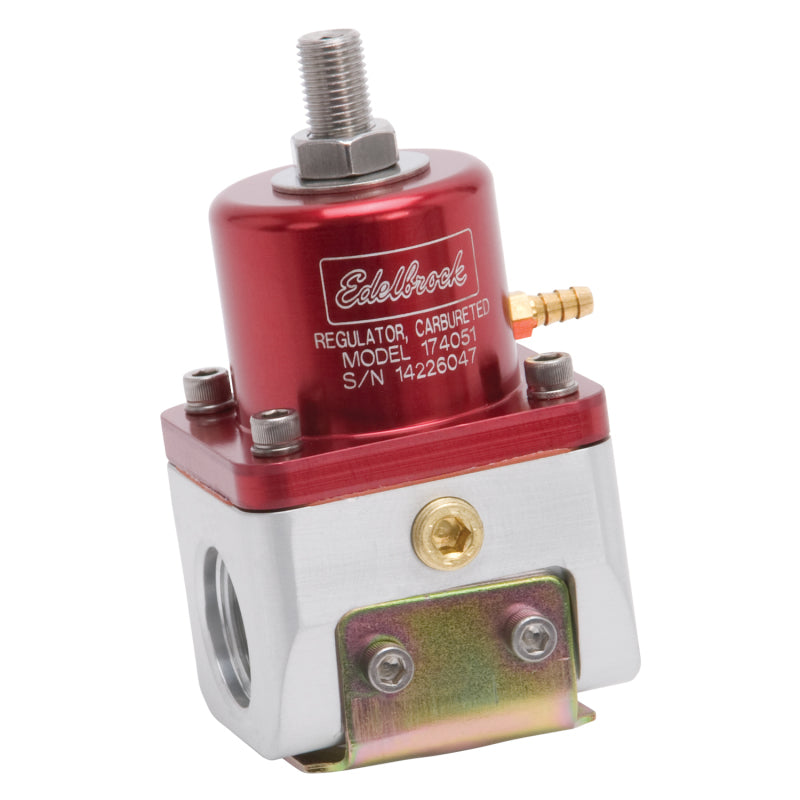

Edelbrock 174051 Fuel Pressure Regulator Carbureted 180 GPH 5-10 PSI -10 In/Out -6 Return Red/Clear

Edelbrock 174051 Fuel Pressure Regulator Carbureted 180 GPH 5-10 PSI -10 In/Out -6 Return Red/Clear

Brand : Edelbrock

MPN : 174051

AlternatePartNumber : ede174051

UPC : 87133932378

Product Department : Fuel Delivery

Product Category : Fuel Pressure Regulators

BoxQuantity : 1

Length : 4.5 inches

Width : 4.0 inches

Height : 3.0 inches

Weight : 1.05 lbs

Prop65 : Yes

Not CARB Legal

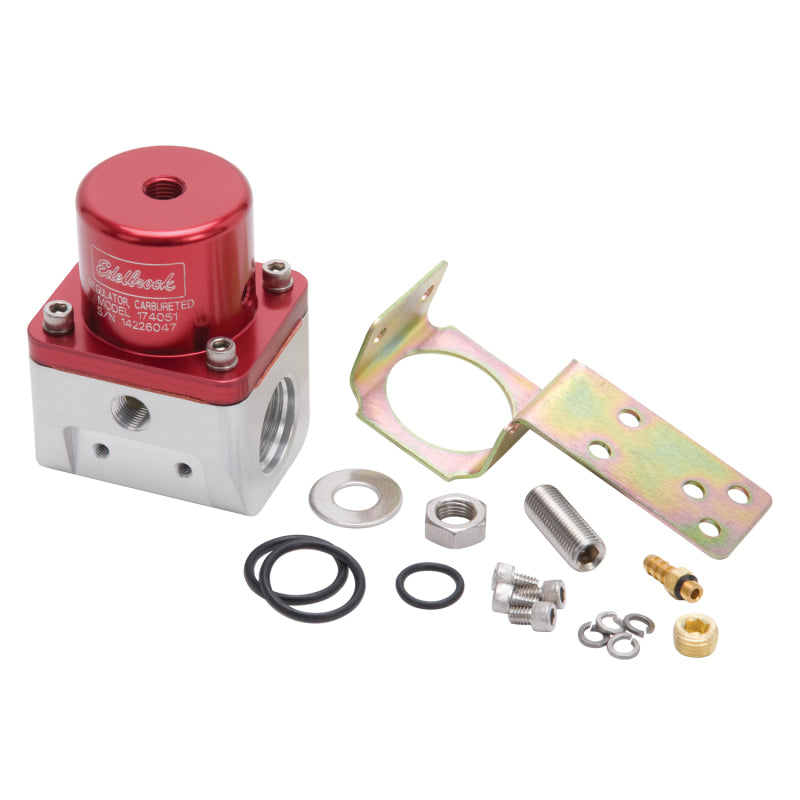

This Edelbrock fuel pressure regulator #174051 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174051 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost).
