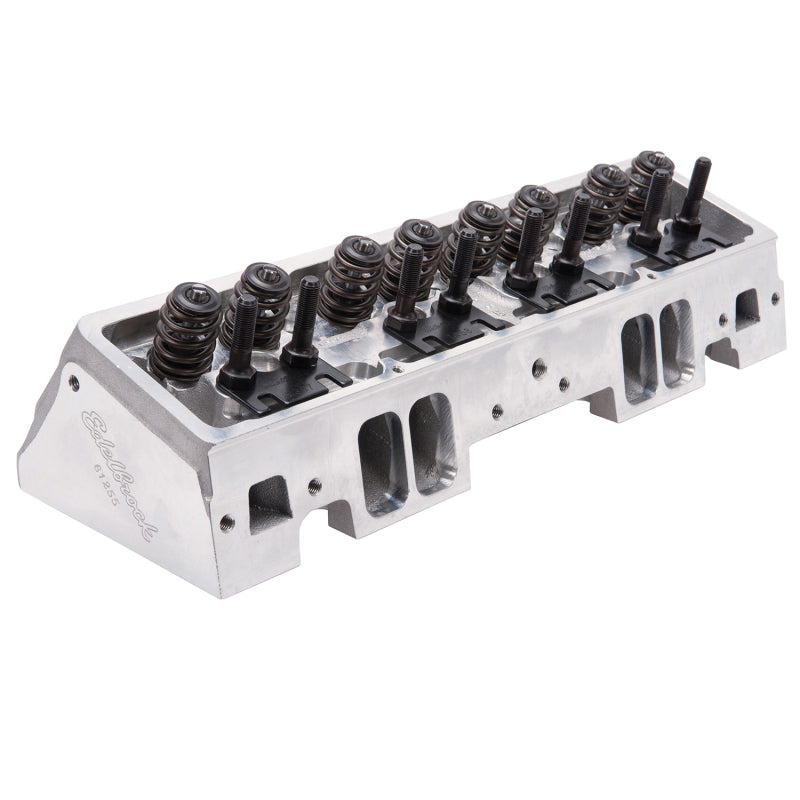

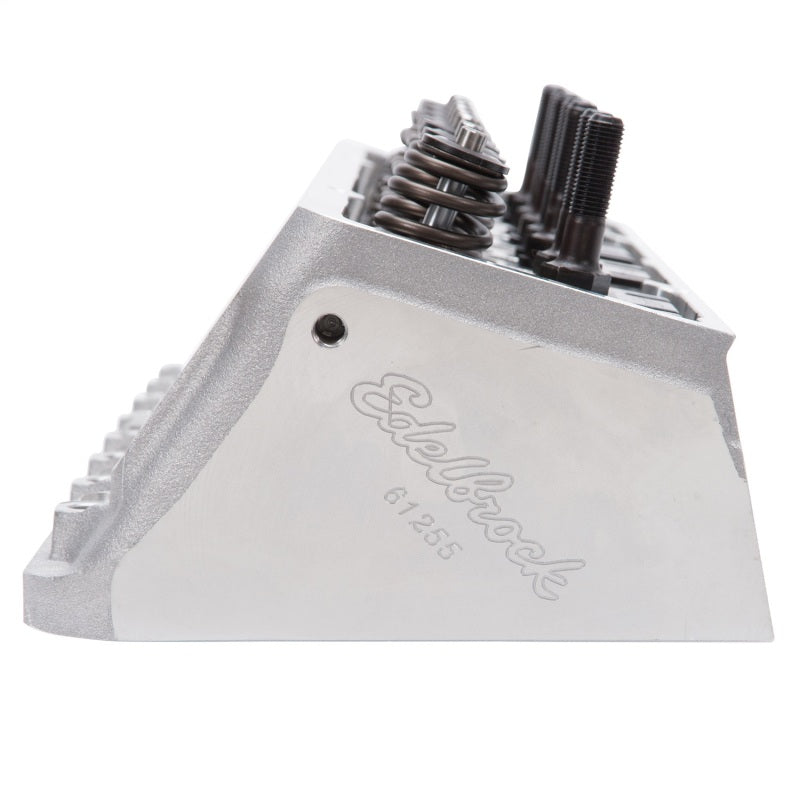

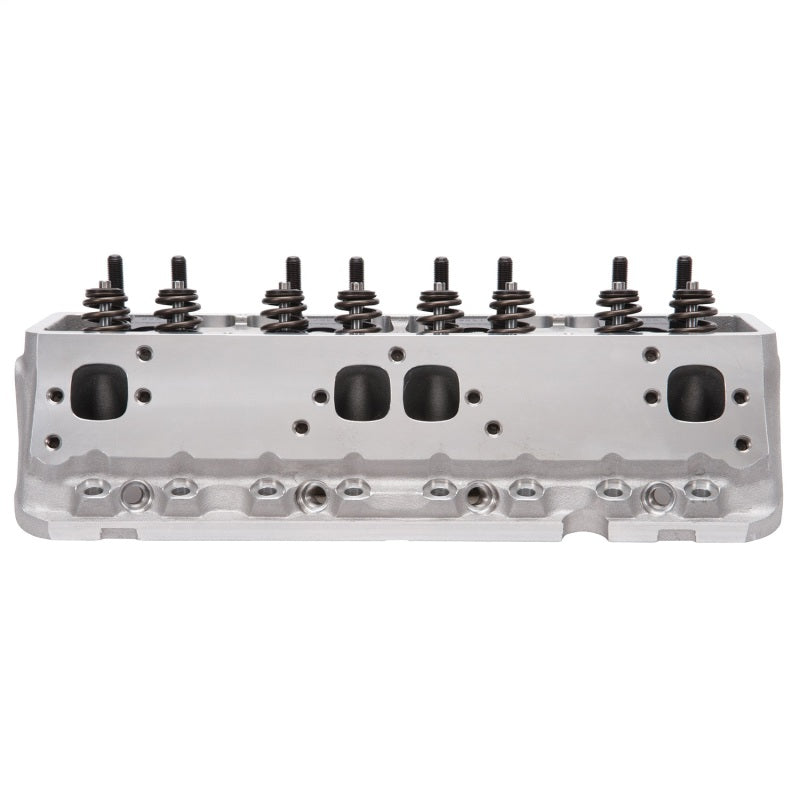

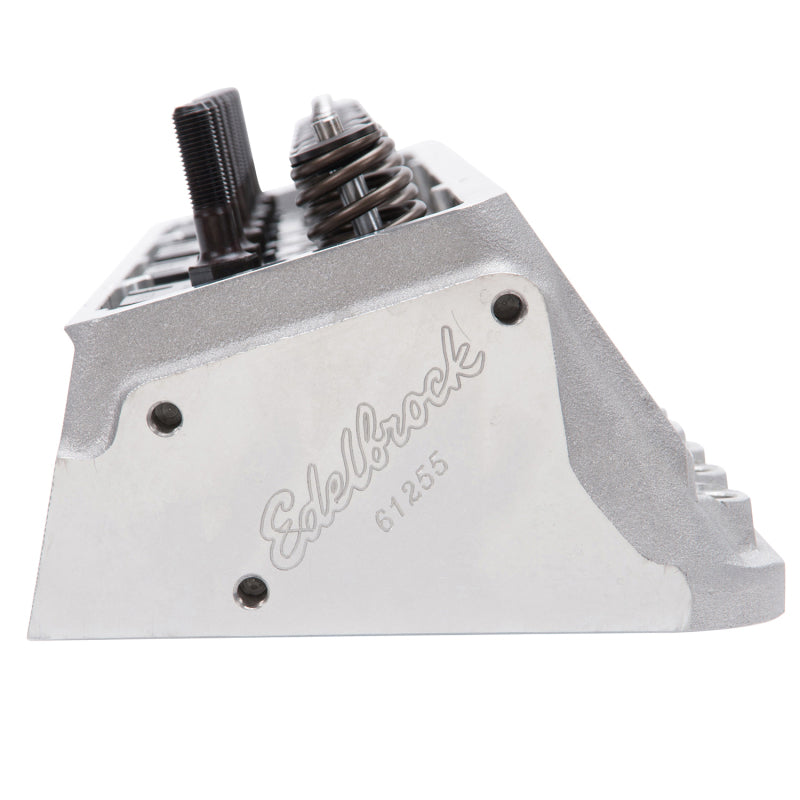

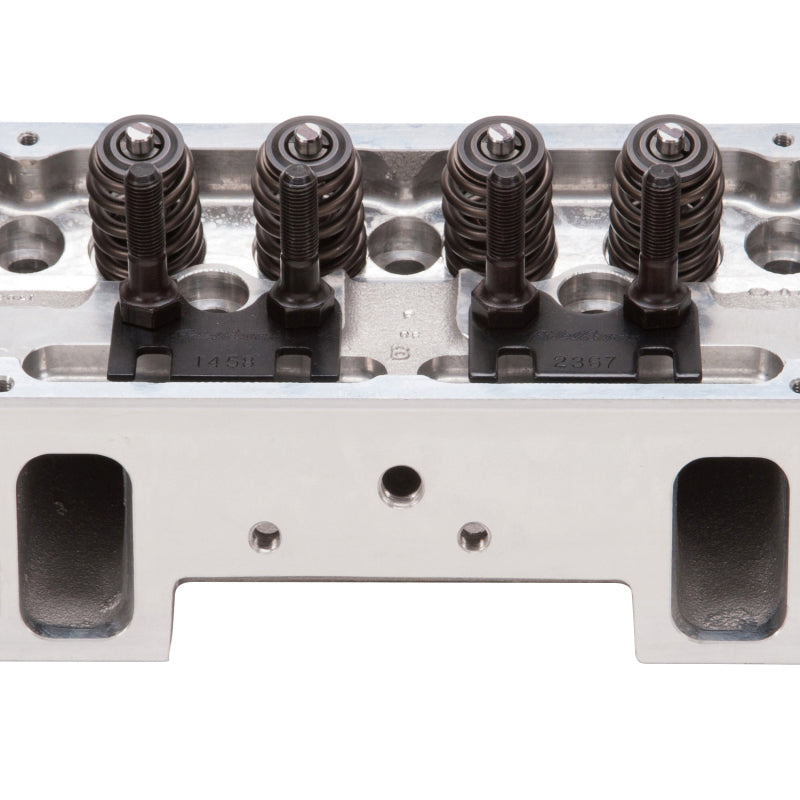

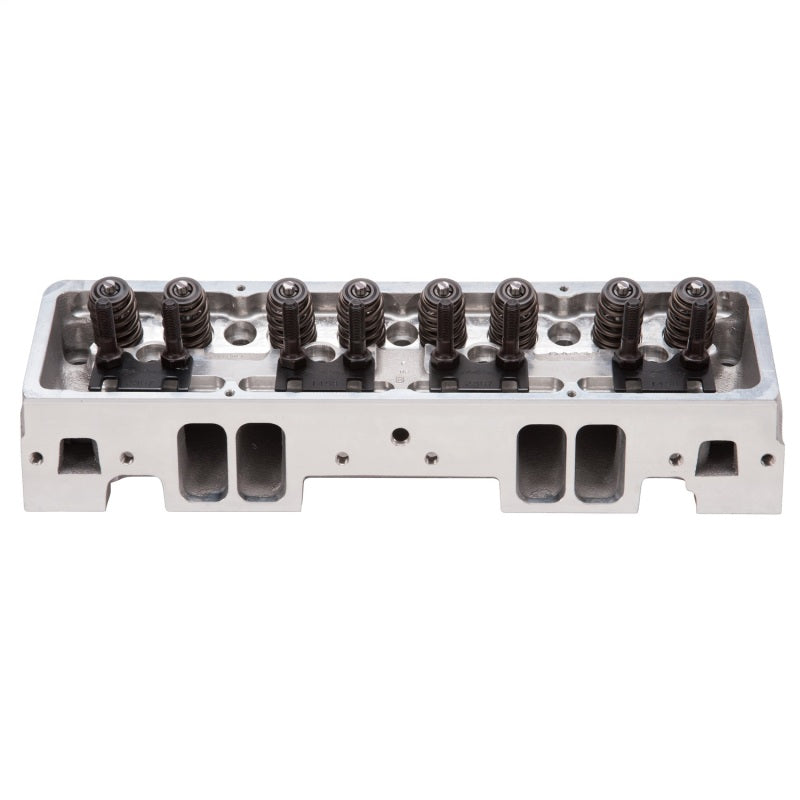

Edelbrock 61255 Cylinder Head Victor Jr fits SBC 23 Deg 220cc Complete for Hydraulic Roller Cam

Edelbrock 61255 Cylinder Head Victor Jr fits SBC 23 Deg 220cc Complete for Hydraulic Roller Cam

Brand : Edelbrock

MPN : 61255

AlternatePartNumber : ede61255

UPC : 085347612550

Product Department : Engine Components

Product Category : Heads

BoxQuantity : 1

Length : 18.8 inches

Width : 8.1 inches

Height : 4.9 inches

Weight : 24.2 lbs

Prop65 : Yes

Not CARB Legal

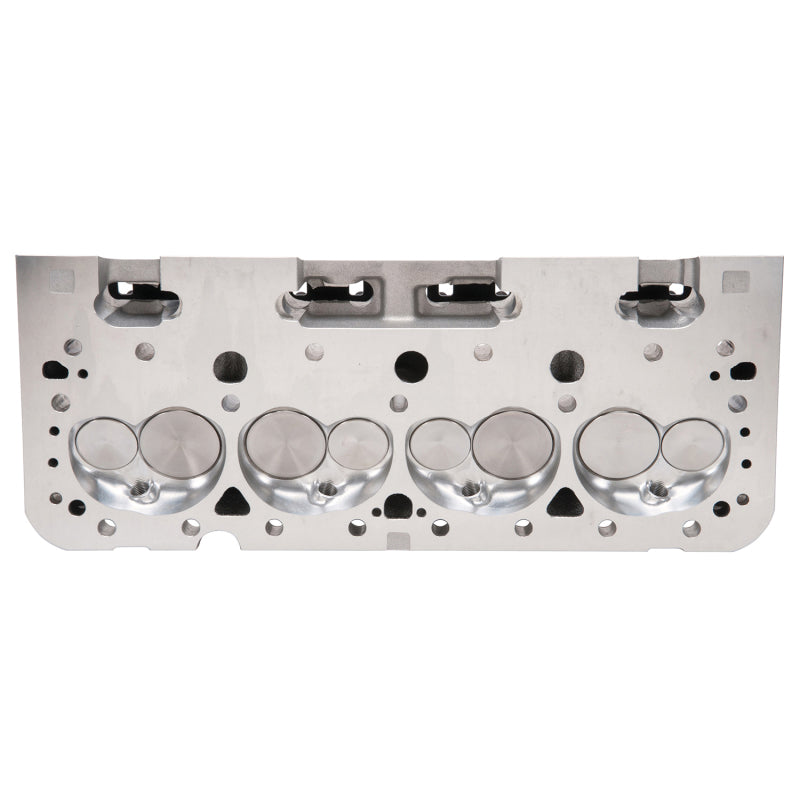

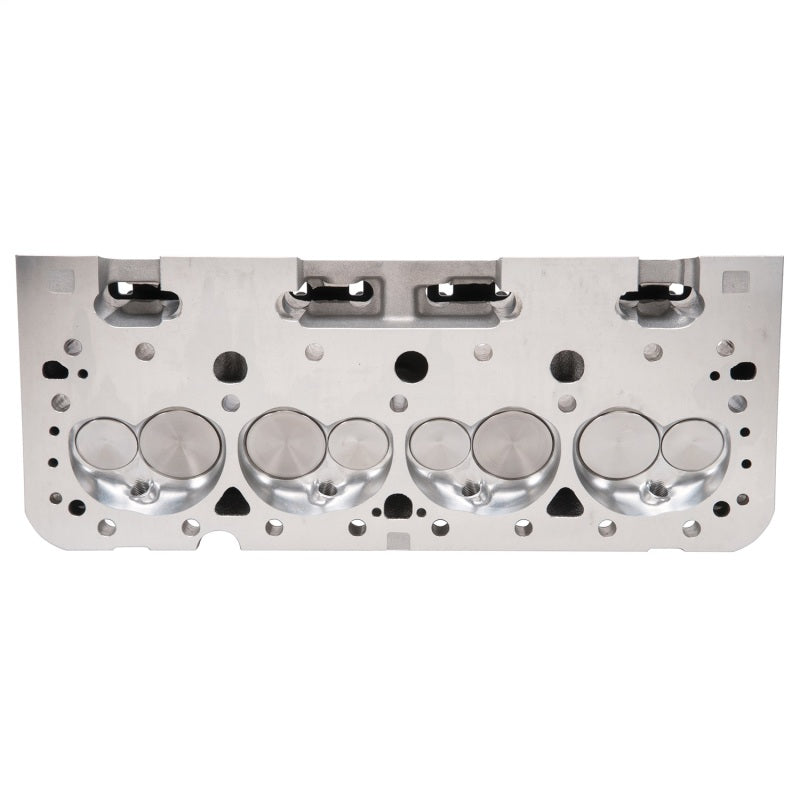

Edelbrock part #61255 Victor Jr. 23deg 220 cylinder head is designed for small-block Chevy Its 64cc combustion chamber yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons. One of the key features of the Victor Jr. 23deg 220 cylinder head is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23deg valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds. All of this allows this cylinder head to deliver 530-580 hp potential right-out-of-the-box, making them ideal for a budget minded engine build desiring a high quality cylinder head that still uses a stud and guide plate rocker system. Cylinder Head Specifications: - Exhaust port location: Raised .300" - Spark plug fitment: 14mm x .750 reach, gasket seat
