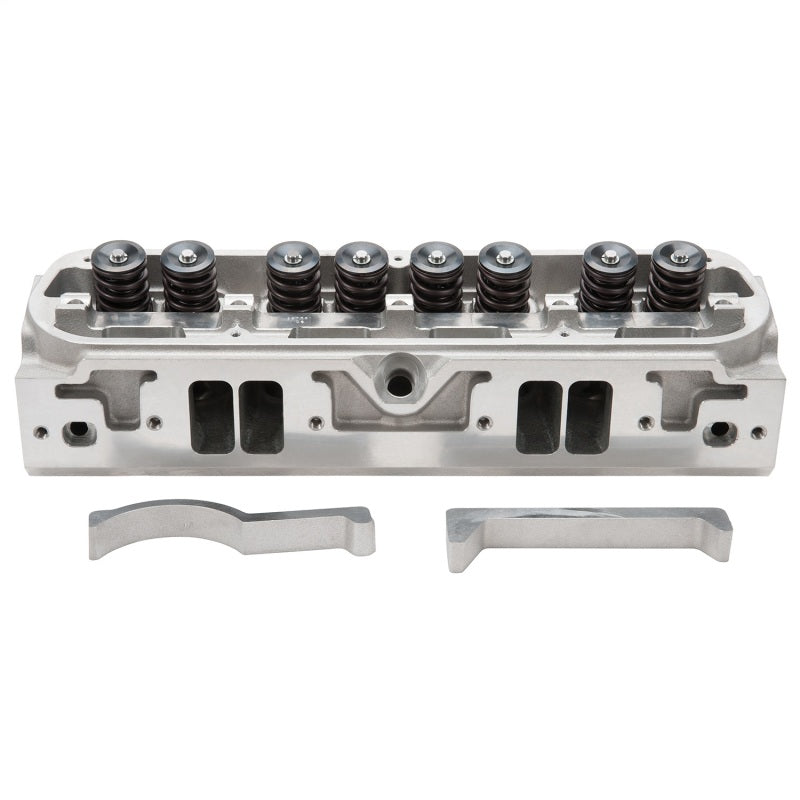

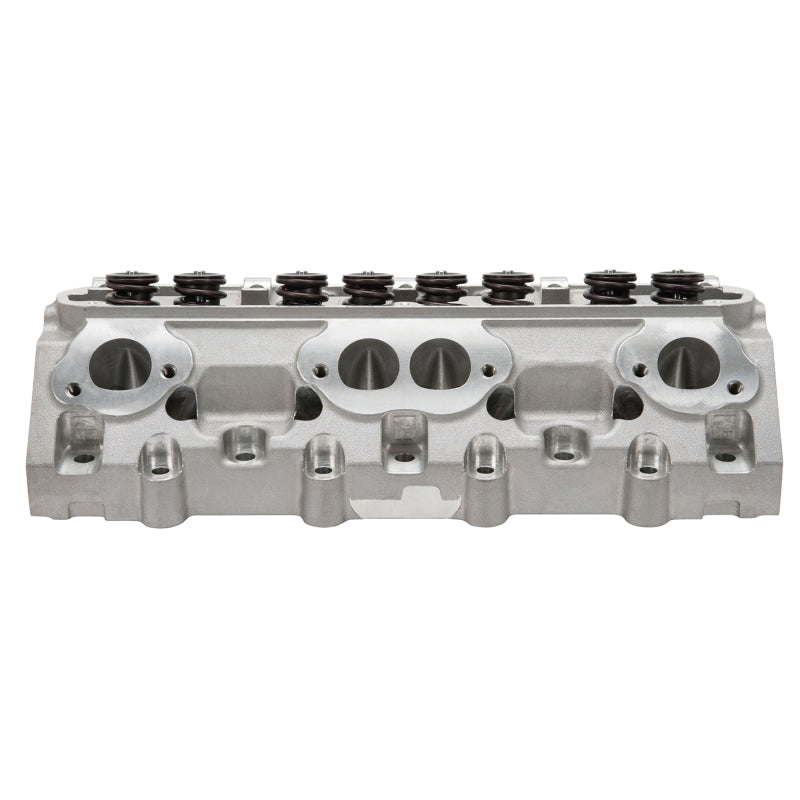

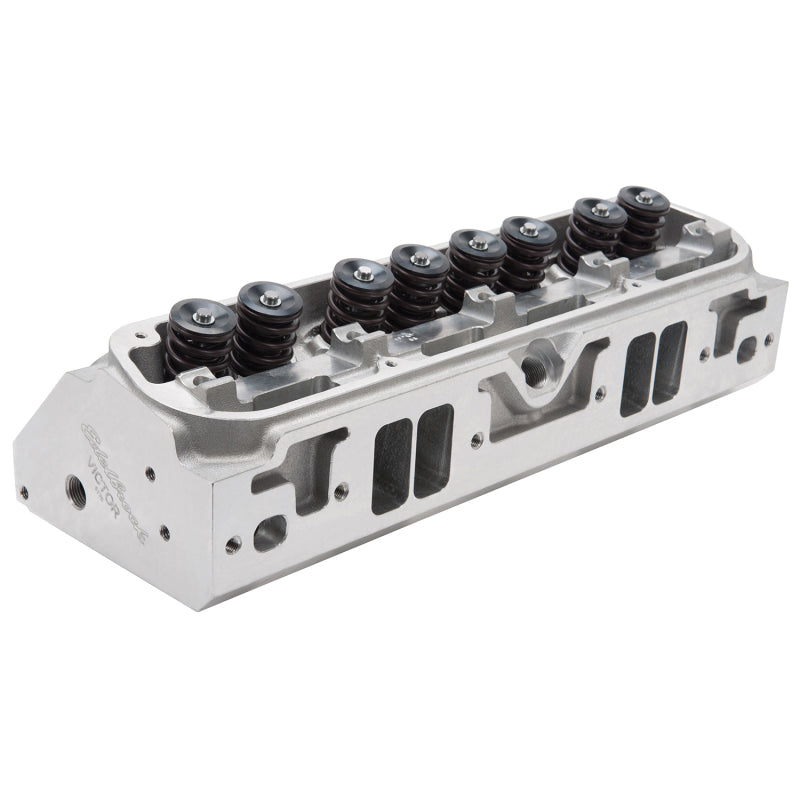

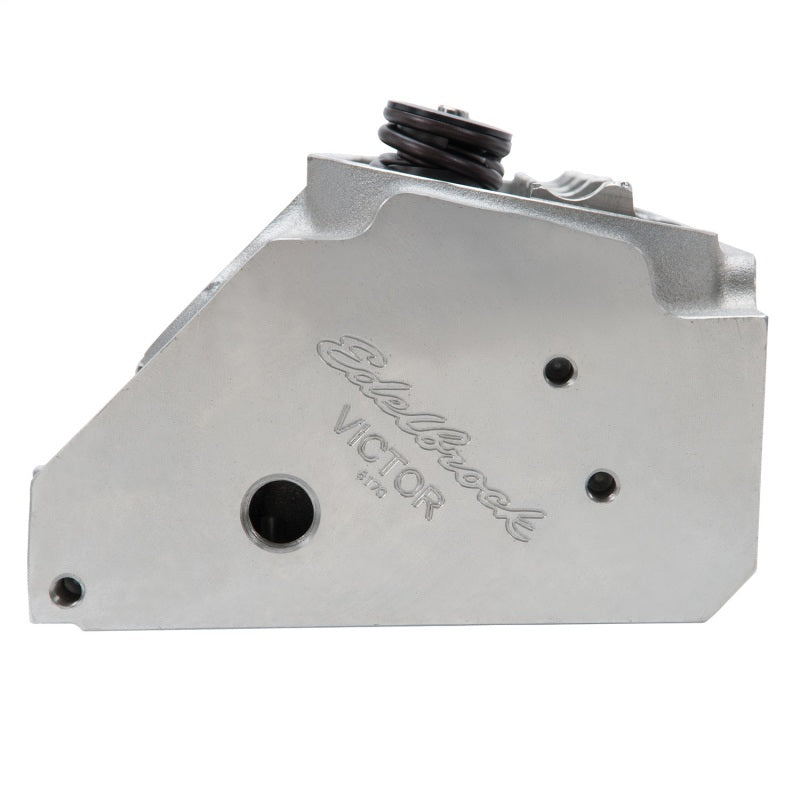

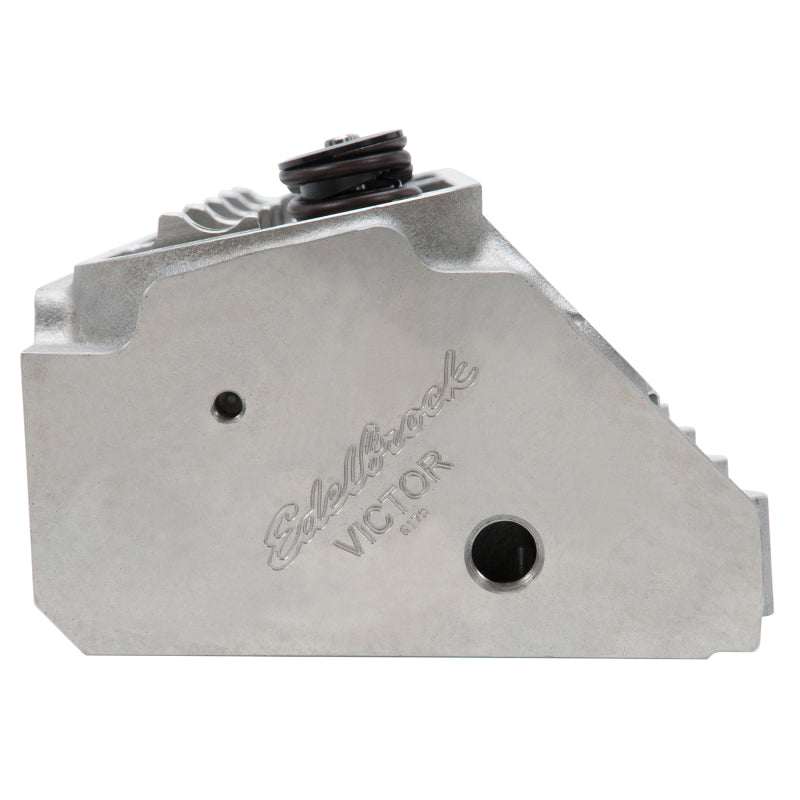

Edelbrock 61729 Cylinder Head SB fits Chrysler Victor In-Line 16 Complete w/ Solid Roller Springs

Edelbrock 61729 Cylinder Head SB fits Chrysler Victor In-Line 16 Complete w/ Solid Roller Springs

Brand : Edelbrock

MPN : 61729

AlternatePartNumber : ede61729

UPC : 85347617296

Product Department : Engine Components

Product Category : Heads

BoxQuantity : 1

Length : 22.19 inches

Width : 10.13 inches

Height : 7.19 inches

Weight : 50.0 lbs

Prop65 : Yes

Not CARB Legal

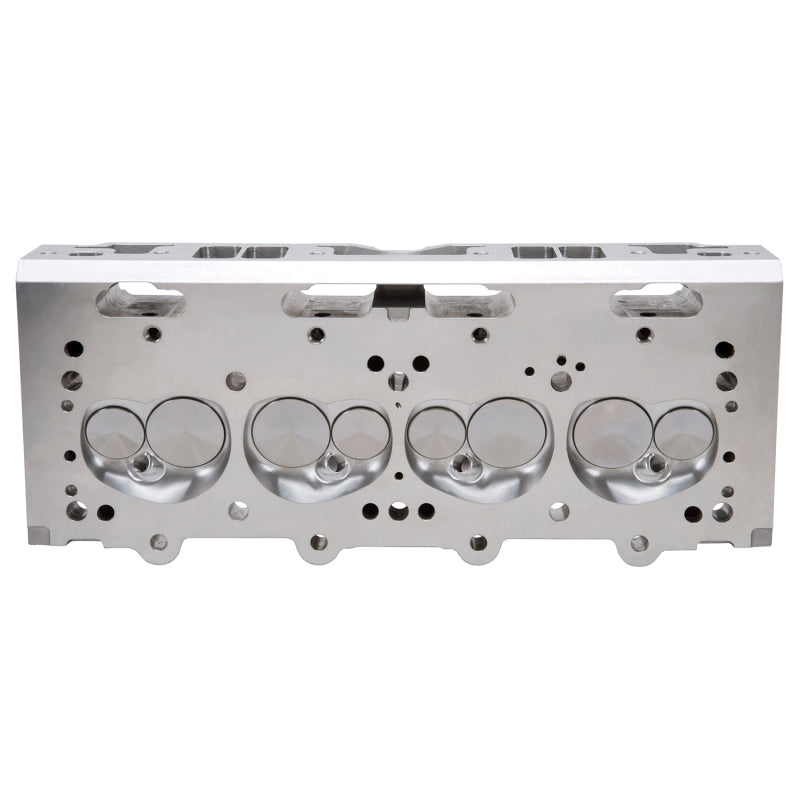

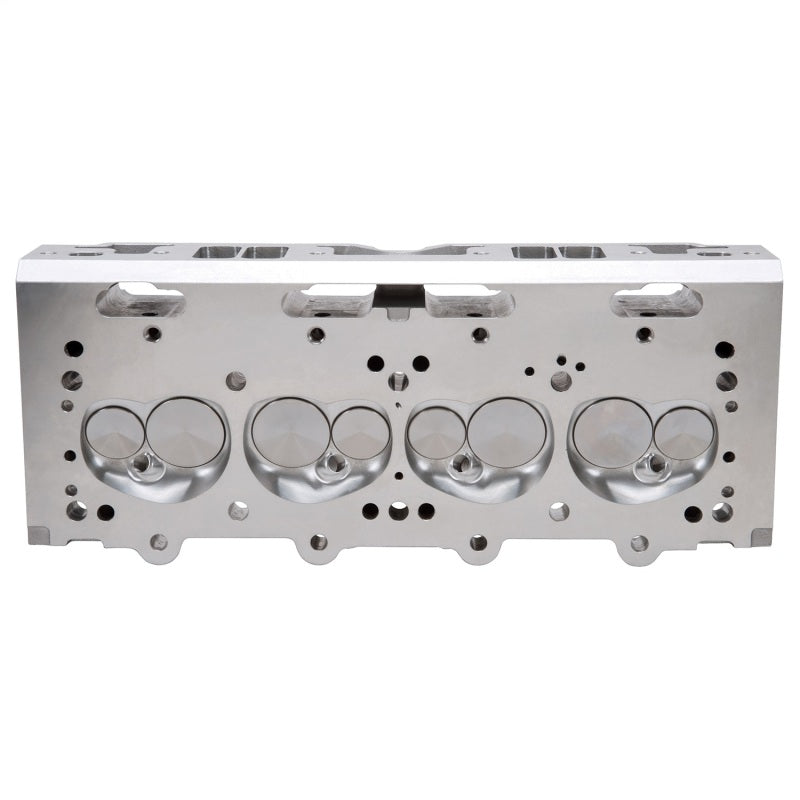

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
