Edelbrock 46750 Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI and Calibration

Edelbrock 46750 Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI and Calibration

Brand : Edelbrock

MPN : 46750

AlternatePartNumber : ede46750

UPC : 85347467501

Product Department : Engine Components

Product Category : Engines

BoxQuantity : 1

Length : 38.5 inches

Width : 36.5 inches

Height : 35.75 inches

Weight : 477.0 lbs

Prop65 : Yes

Not CARB Legal

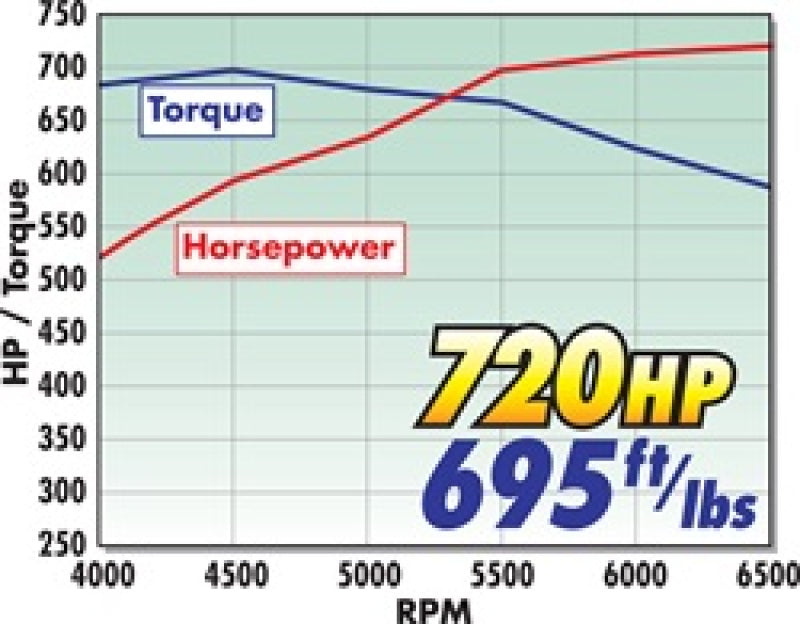

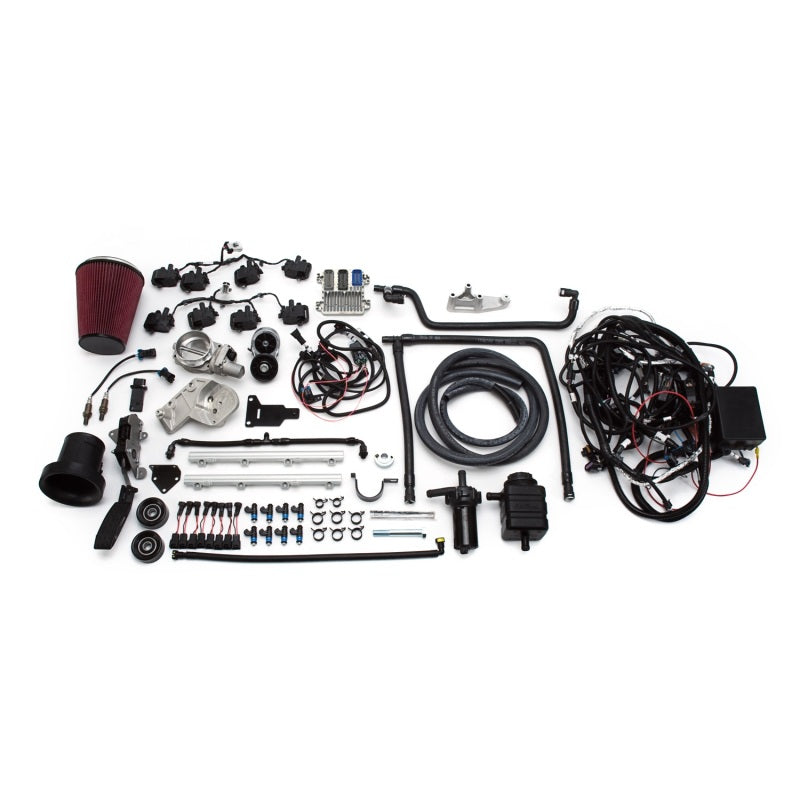

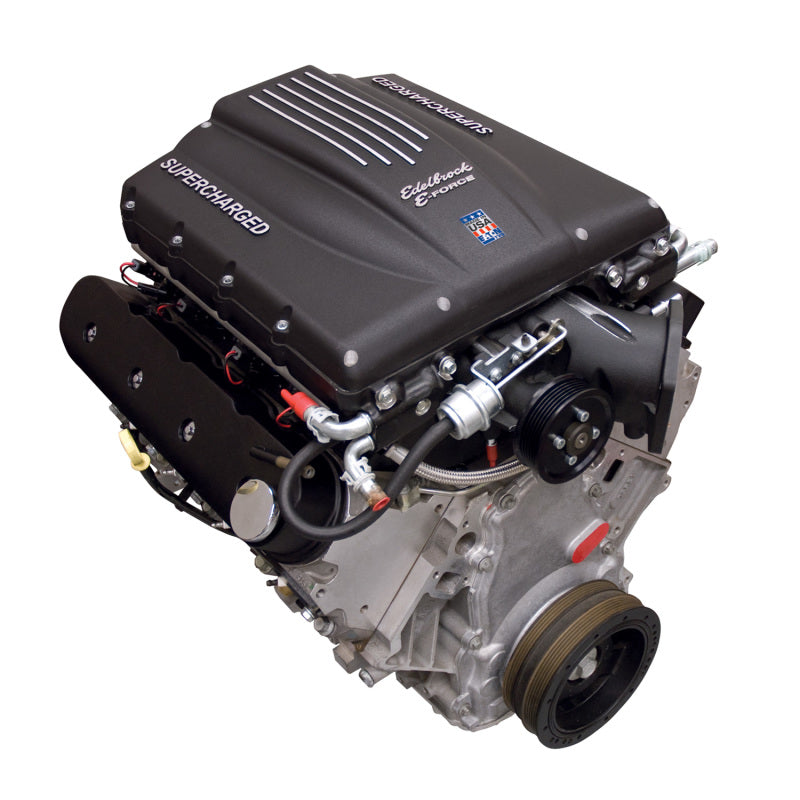

Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.This engine features an Edelbrock E-Force supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage- Suggested Fuel: 91 octane pump gas.
