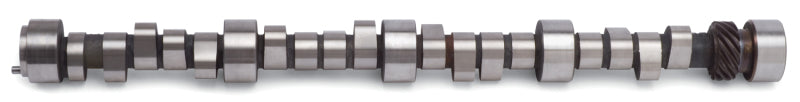

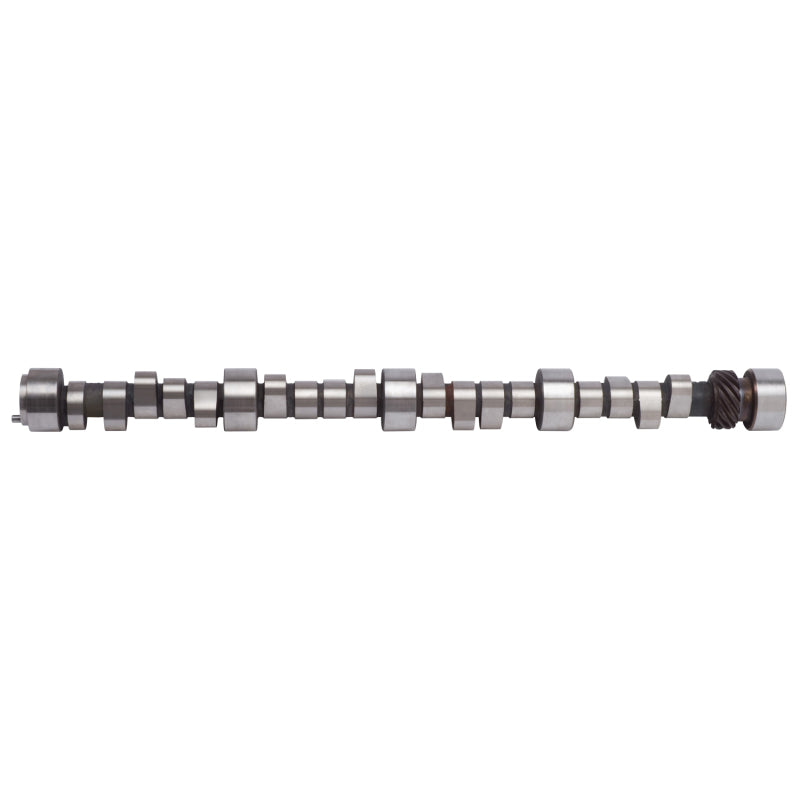

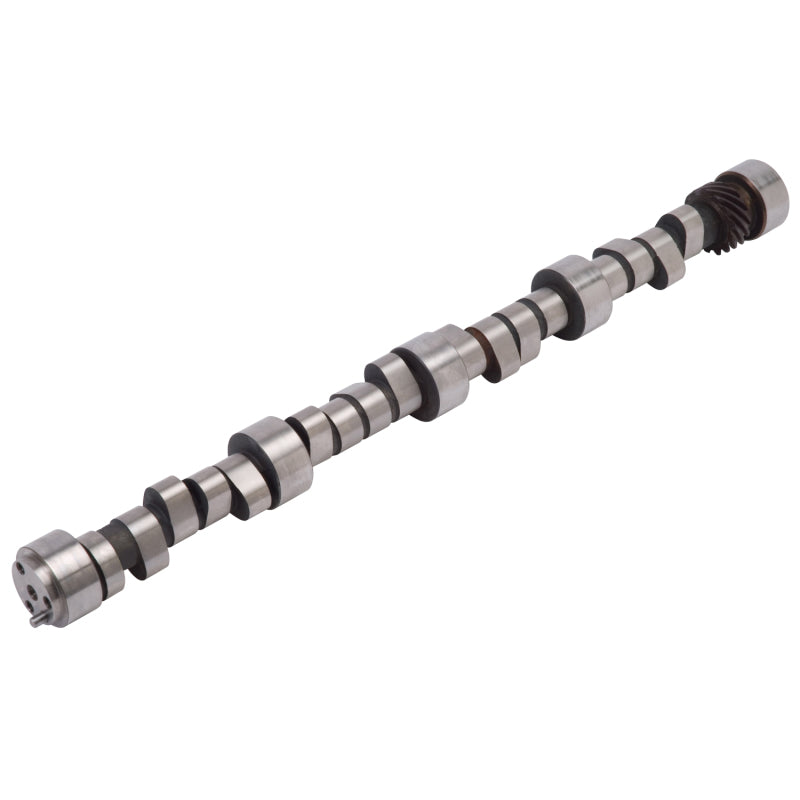

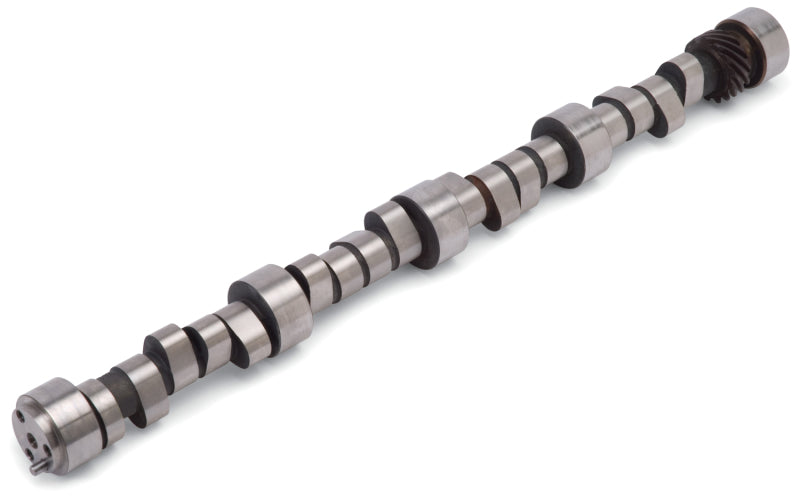

Edelbrock 2262 Camshaft Perf RPM Hydraulic Roller BB fits Chevy Late Model w/ Thrust Plate

Edelbrock 2262 Camshaft Perf RPM Hydraulic Roller BB fits Chevy Late Model w/ Thrust Plate

Brand : Edelbrock

MPN : 2262

AlternatePartNumber : ede2262

UPC : 85347022625

Product Department : Engine Components

Product Category : Camshafts

BoxQuantity : 1

Length : 24.38 inches

Width : 2.31 inches

Height : 2.31 inches

Weight : 10.65 lbs

Prop65 : Yes

Not CARB Legal

Edelbrock Rollin' Thunder Camshaft #2262 is designed for 454-502 V8 Gen VI engines from 1996-Later and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 611HP and 573 Ft Lbs of Torque when paired with Victor Jr. intake manifold #2902 and Victor Jr. 24 Degree cylinder heads #77485 on a GM ZZ-502 short block. Not for 1965-66 Big Block Chevy's running a grooved rear cam journal. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 236 Degrees - Exhaust duration: 245 Degrees - Intake lift: .625" - Exhaust lift: .639" - Lobe separation: 112 Degree - Intake Center Line: 109 Degree - Vacuum: 10"
