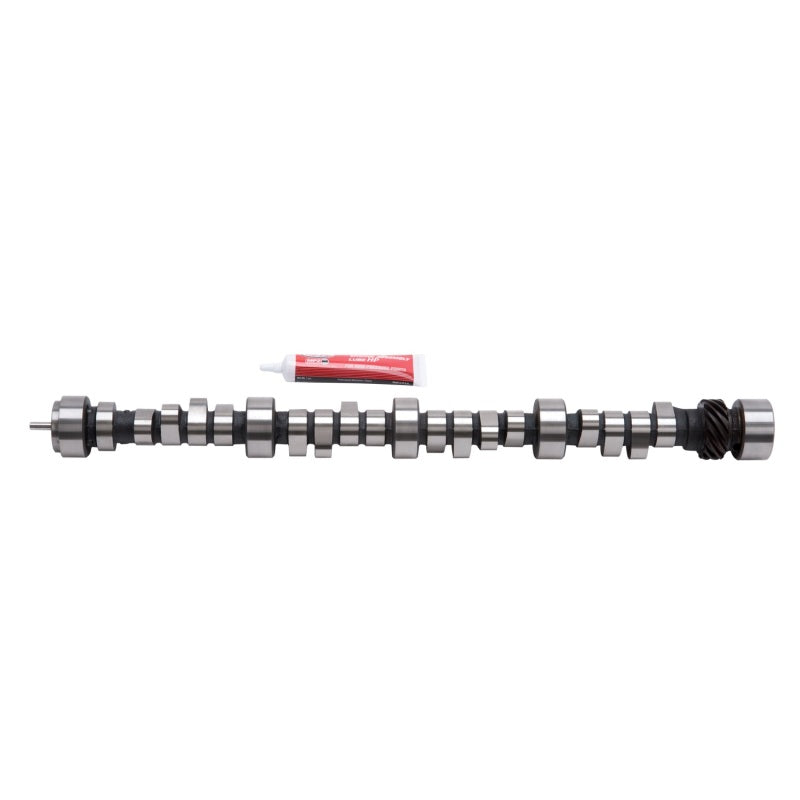

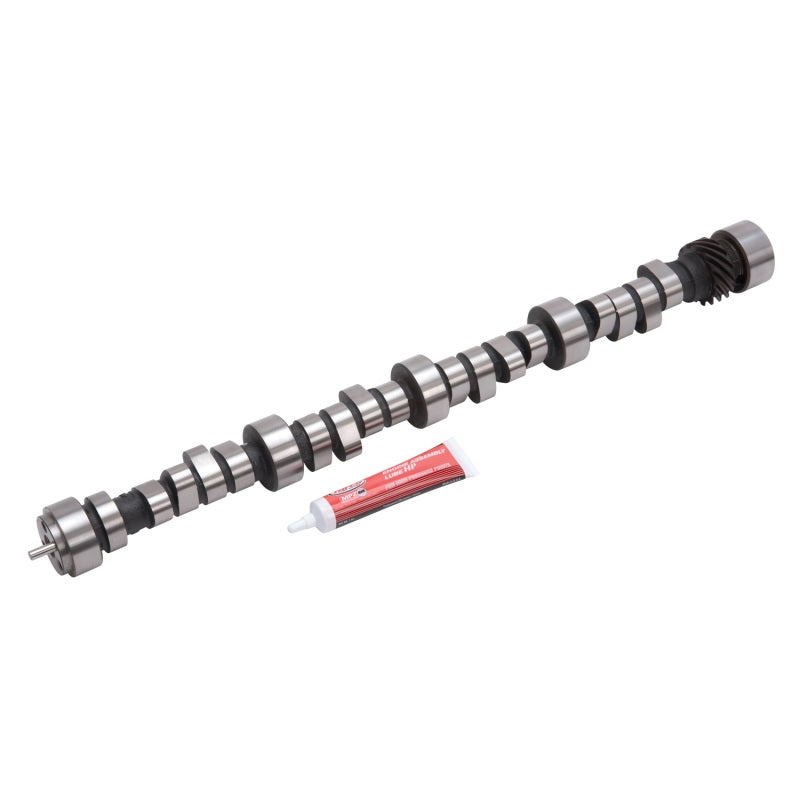

Edelbrock 2205 Camshaft Perf Plus Hyd Roller fits SBC 1987 and Later Wide Center EFI

Edelbrock 2205 Camshaft Perf Plus Hyd Roller fits SBC 1987 and Later Wide Center EFI

Brand : Edelbrock

MPN : 2205

AlternatePartNumber : ede2205

UPC : 85347022052

Product Department : Engine Components

Product Category : Camshafts

BoxQuantity : 1

Length : 24.3 inches

Width : 2.7 inches

Height : 2.6 inches

Weight : 9.0 lbs

Prop65 : Yes

Not CARB Legal

Edelbrock Rollin' Thunder Camshaft #2205 is designed for 283-400 V8 Chevy engines 1987-Later and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 440HP and 425 Ft Lbs of Torque when paired with Pro-Flo XT EFI system #3528 and Performer E-Tec cylinder heads #60975. Use with high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 234 Degrees - Exhaust duration: 238 Degrees - Intake lift: .539" - Exhaust lift: .548" - Lobe separation: 114 Degree - Intake Center Line: 110 Degree - Vacuum: 13"
