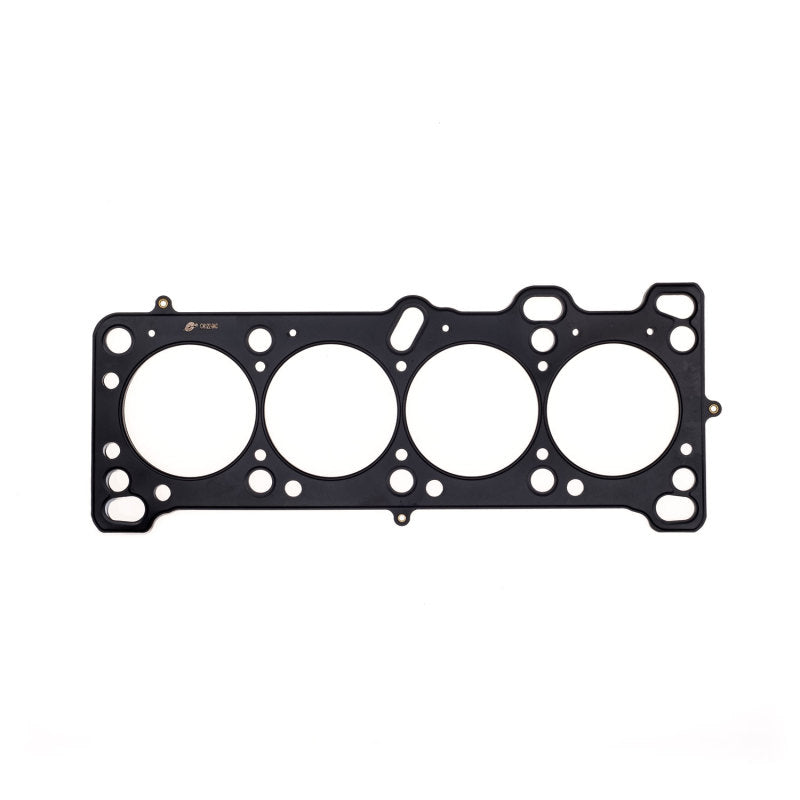

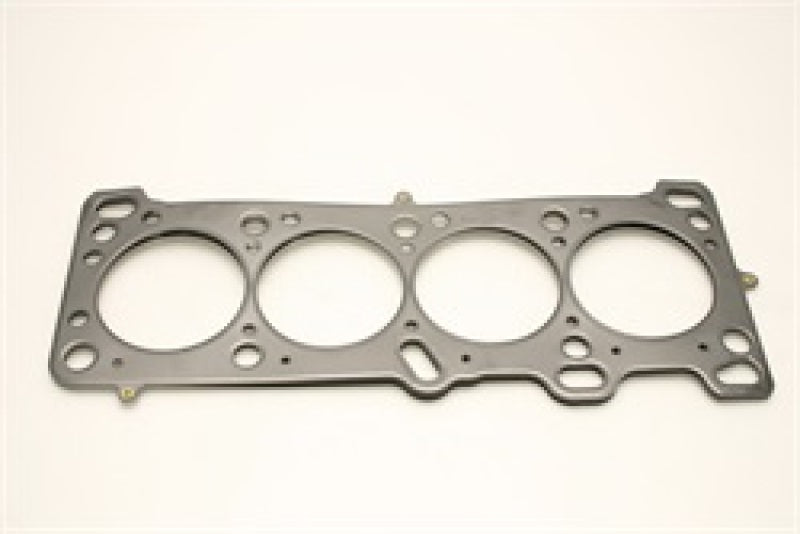

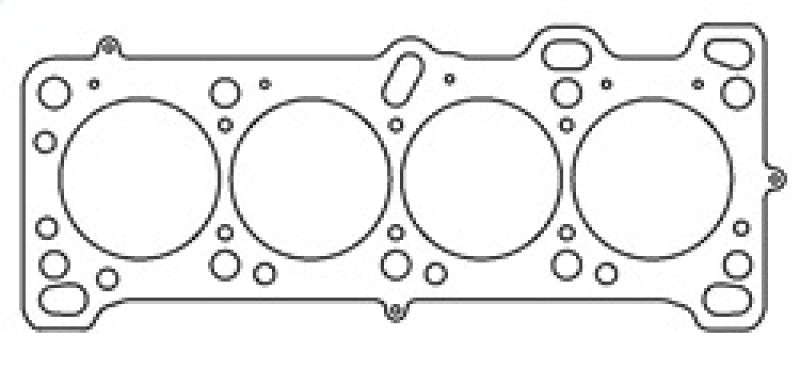

Cometic C4122-075 fits Mazda Miata 1.6L 80mm .075 inch MLS Head Gasket B6D Moto

Cometic C4122-075 fits Mazda Miata 1.6L 80mm .075 inch MLS Head Gasket B6D Motor

Brand: Cometic Gasket

MPN: C4122-075

UPC: 191070087883

Product Department: Engine Components

Product Category: Head Gaskets

Box Quantity: 1

Weight: 1 lbs

Height: 0.5 Inches

Width: 8 Inches

Length: 24 Inches

Prop65: Yes

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.075". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
1989-1993	Mazda	323	Base
1988	Mazda	323	GT
1988-1989	Mazda	323	GTX
1988-1989	Mazda	323	LX
1989-1993	Mazda	323	SE
1990-1993	Mazda	Miata	Base
1993	Mazda	Miata	LE
1991	Mazda	Miata	SE
1992-1993	Mazda	MX-3	Base
1991-1994	Mercury	Capri	Base
