Cometic C5610-071 fits Ford 6.4L Powerstroke Diesel 103mm Bore .071 inch MLX-5

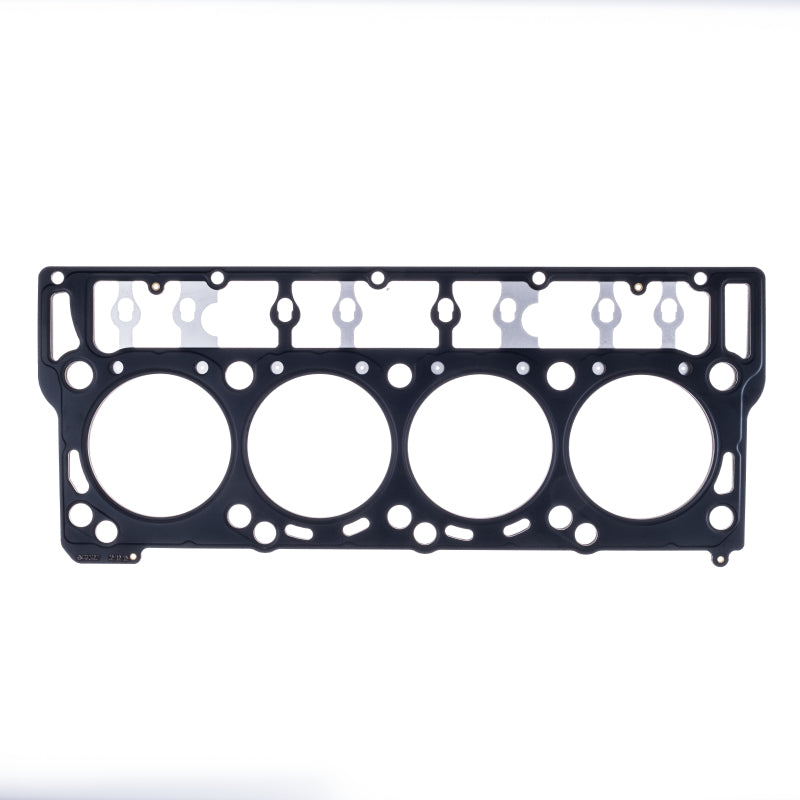

Cometic C5610-071 fits Ford 6.4L Powerstroke Diesel 103mm Bore .071 inch MLX-5 Head Gasket

Brand: Cometic Gasket

MPN: C5610-071

UPC: 191070091682

Product Department: Engine Components

Product Category: Head Gaskets

Box Quantity: 1

Weight: 1.25 lbs

Height: 0.5 Inches

Width: 8 Inches

Length: 24 Inches

Prop65: Yes

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2009-2010	Ford	F-250 Super Duty	Cabela's
2008-2009	Ford	F-250 Super Duty	FX4
2008-2010	Ford	F-250 Super Duty	Harley-Davidson Edition
2008-2010	Ford	F-250 Super Duty	King Ranch
2008-2010	Ford	F-250 Super Duty	Lariat
2008-2010	Ford	F-250 Super Duty	XL
2008-2010	Ford	F-250 Super Duty	XLT
2009-2010	Ford	F-350 Super Duty	Cabela's
2008-2009	Ford	F-350 Super Duty	FX4
2008-2010	Ford	F-350 Super Duty	Harley-Davidson Edition
2008-2010	Ford	F-350 Super Duty	King Ranch
2008-2010	Ford	F-350 Super Duty	Lariat
2008-2010	Ford	F-350 Super Duty	XL
2008-2010	Ford	F-350 Super Duty	XLT
