Cometic C5597-070 Cometic Cummins 5.9L ISB CR .070in MLX Cylinder 4.100in Bore H

Cometic C5597-070 Cometic Cummins 5.9L ISB CR .070in MLX Cylinder 4.100in Bore Head Gasket

Brand: Cometic Gasket

MPN: C5597-070

Product Department: Engine Components

Product Category: Head Gaskets

Box Quantity: 1

Weight: 1 lbs

Height: 0.25 Inches

Width: 8 Inches

Length: 12 Inches

Prop65: Yes

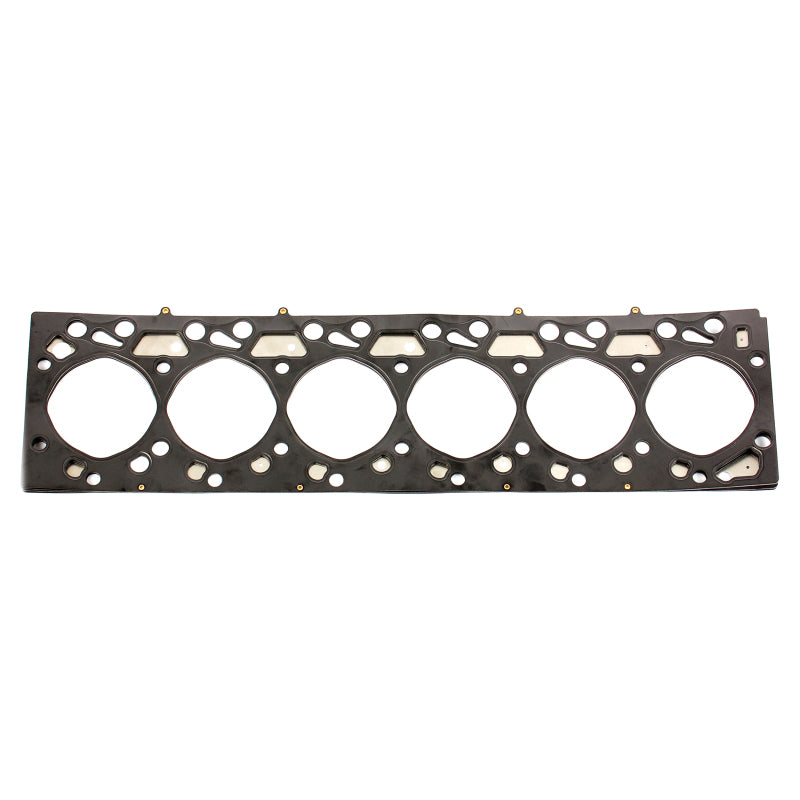

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2003,2005-2007	Dodge	Ram 2500	Laramie
2003-2007	Dodge	Ram 2500	SLT
2006-2007	Dodge	Ram 2500	Sport
2003-2008	Dodge	Ram 2500	ST
2006-2007	Dodge	Ram 2500	TRX4
2003-2007	Dodge	Ram 3500	Laramie
2003-2007	Dodge	Ram 3500	SLT
2006-2007	Dodge	Ram 3500	Sport
2003-2007	Dodge	Ram 3500	ST
2007	Dodge	Ram 3500	TRX4
