Camburg CAM-010061 4130 TT Bolt-on Spindle Snout Block

Name: Camburg CAM-010061 4130 TT Bolt-on Spindle Snout Block
Brand: Camburg
SKU: CMBCAM-010061
Price: 300.0 USD
Availability: InStock

Camburg

Price:

$300.00

Stock:

Re-stocking soon

Quantity:

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

Camburg CAM-010061 4130 TT Bolt-on Spindle Snout Block

Brand : Camburg

MPN : CAM-010061

AlternatePartNumber : cmbCAM-010061

UPC : 888563187983

Product Department : Fabrication

Product Category : Flanges

BoxQuantity : 1

Length : 10.0 inches

Width : 8.0 inches

Height : 4.0 inches

Weight : 2.0 lbs

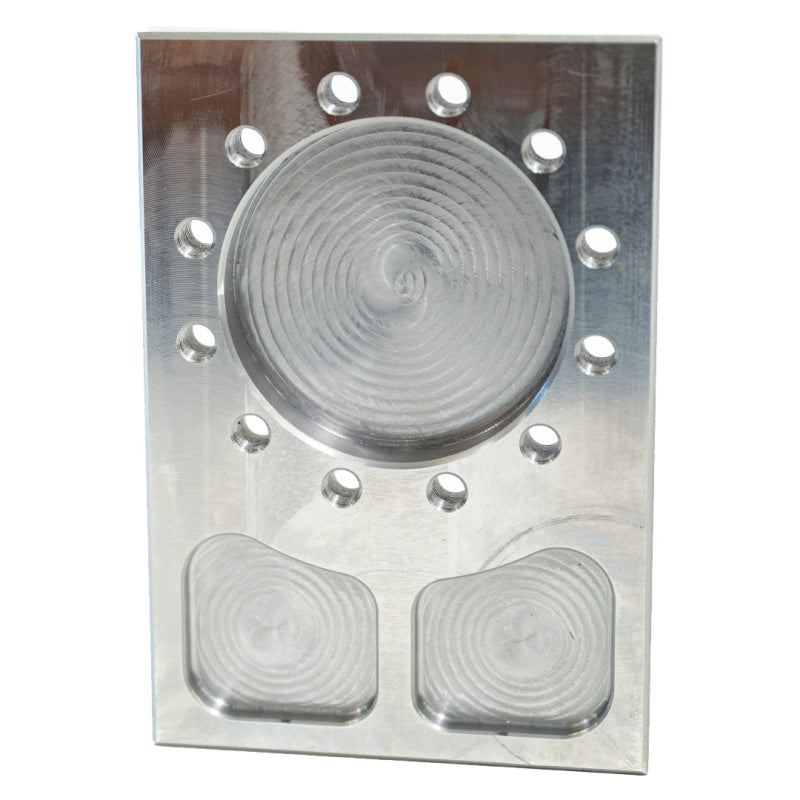

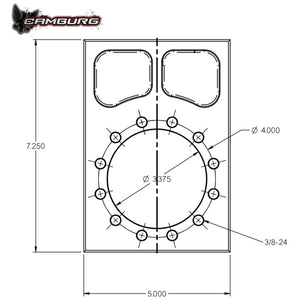

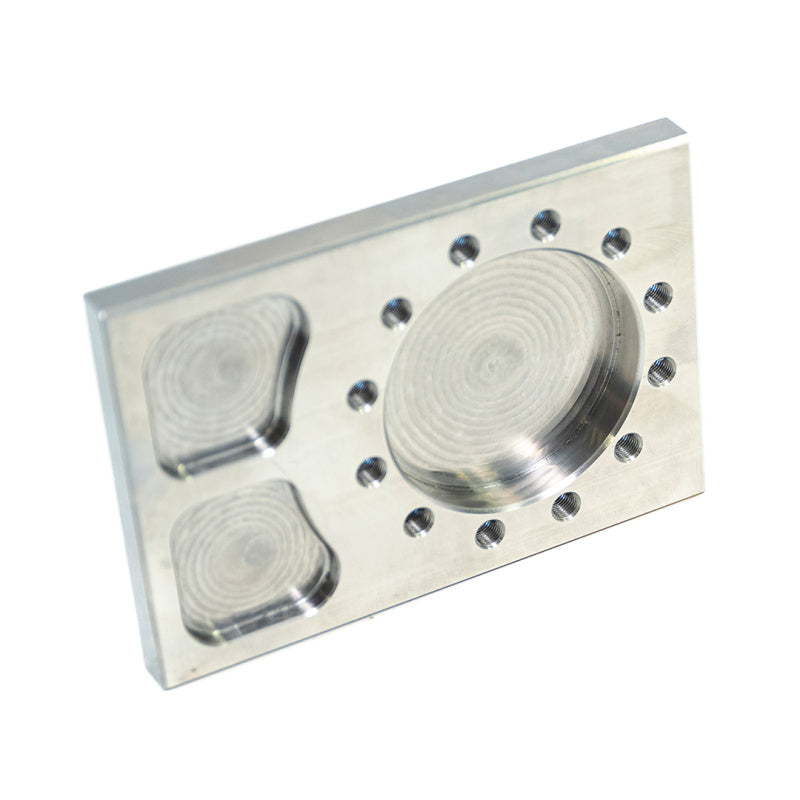

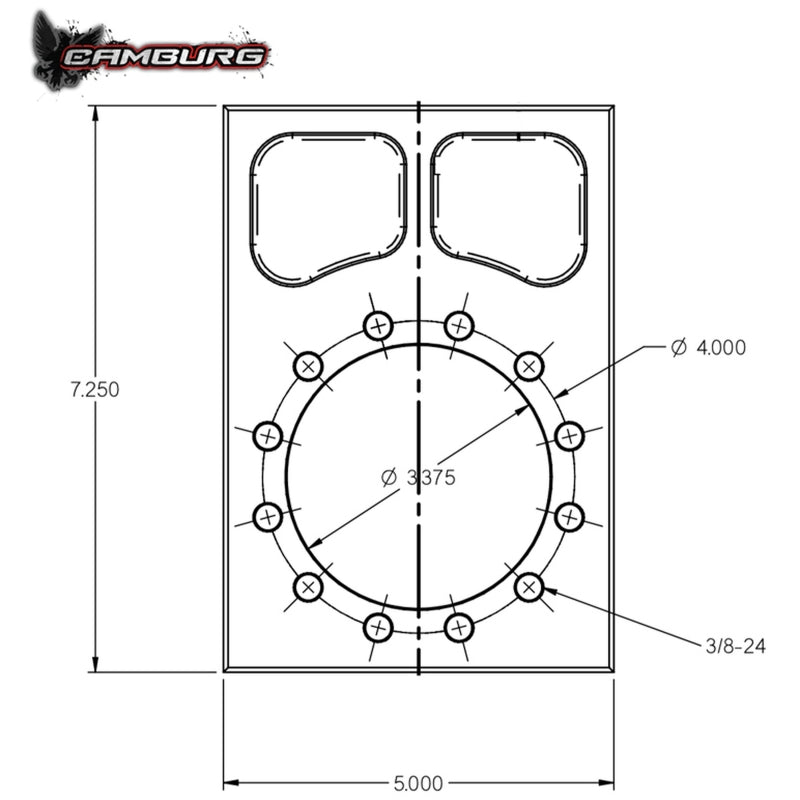

Looking to build your own spindles/uprights using a bolt-on spindle snout? Our TT spindle snout block is CNC machined in-house from aircraft quality 4130 chromoly thatâ€™s 5/8? thick. Itâ€™s 5? x 7.25? and uses the industry standard Dana 44 bolt pattern that we have doubled up (12 on 4?). The bolt holes are 3/8-24 and we recommend using mil-spec/NAS MS21250 series 12pt bolts to attach the spindle snout with. IMPORTANT: The spindle bore is machined undersized and will need to be final machined to 3.375â€ for a slight press fit after welding and/or heat-treatment. These are thicker and taller than our standard square block. Weâ€™ve also pocketed these to reduce weight without compromising strength. We machine all sides and the top & bottom surfaces, so everything is parallel and on the same plane. Nothing is laser or waterjet cut like cheaper versions. We use these on all our Camburg built KINETIK race trucks.
