Camburg CAM-010018 4130 SQ. Bolt-on Spindle Snout Block

Name: Camburg CAM-010018 4130 SQ. Bolt-on Spindle Snout Block
Brand: Camburg
SKU: CMBCAM-010018
Price: 140.0 USD
Availability: InStock

Camburg

Price:

$140.00

Stock:

Re-stocking soon

Quantity:

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

Camburg CAM-010018 4130 SQ. Bolt-on Spindle Snout Block

Brand : Camburg

MPN : CAM-010018

AlternatePartNumber : cmbCAM-010018

UPC : 888563187754

Product Department : Fabrication

Product Category : Flanges

BoxQuantity : 1

Length : 1.0 inch

Width : 1.0 inch

Height : 1.0 inch

Weight : 1.0 lb

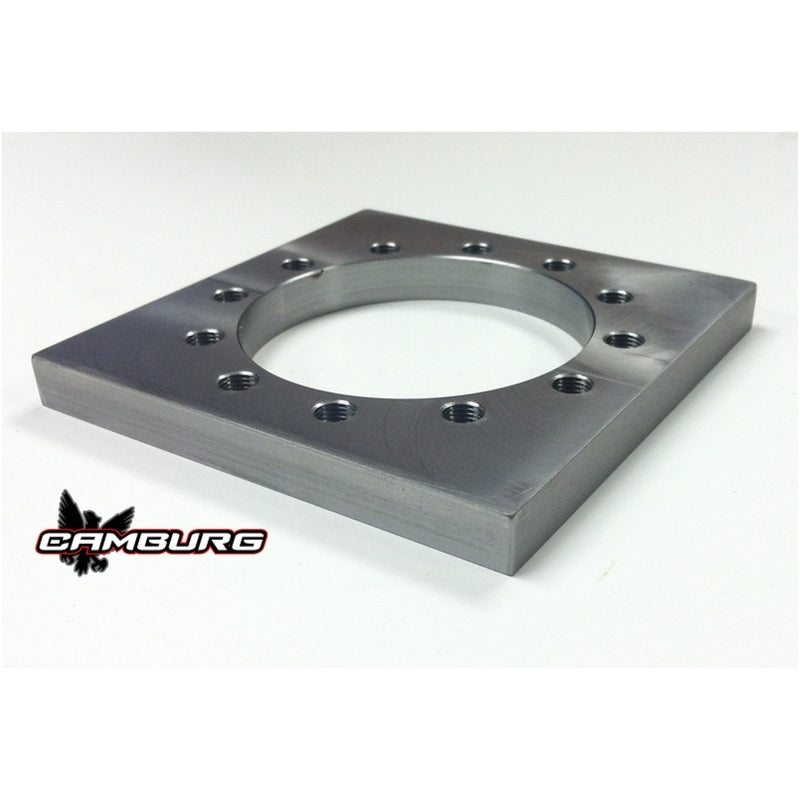

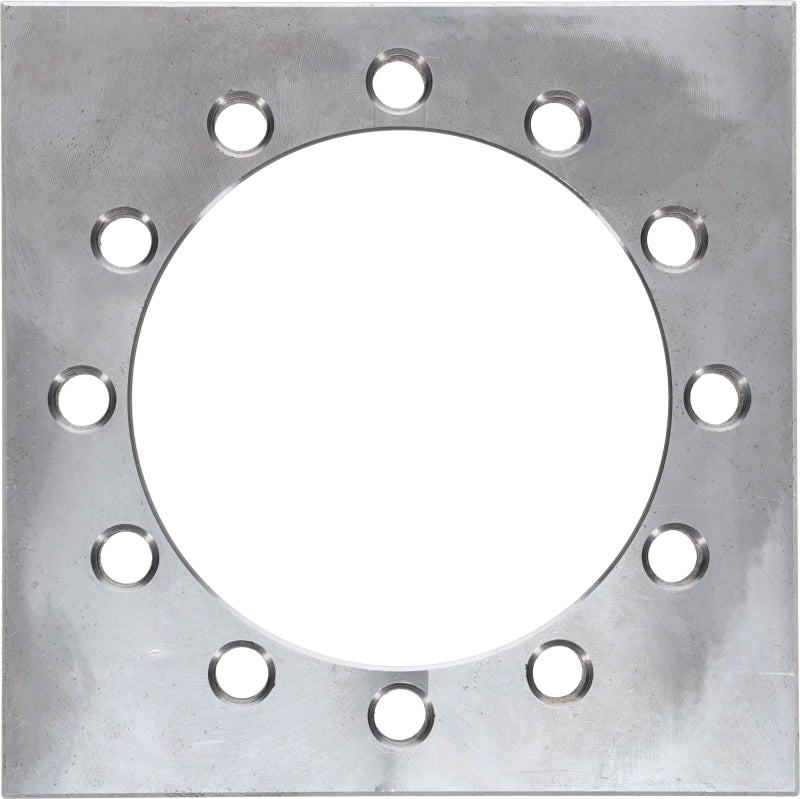

Looking to build your own spindles/uprights using a bolt-on hub spindle snout? Our spindle snout block is CNC machined in-house from aircraft quality 4130 chromoly that's 1/2" thick. It's 5" x 5" and uses the industry standard Dana 44 bolt pattern that we have doubled up (12 on 4" with 3.375" ID bore). The bolt holes are 3/8-24 and we recommend using mil-spec AS MS21250 series 12pt bolts to attach the snout with. These are machined for a slight press fit and most times requires post machining after welding and/or heat-treatment. Designed for all Camburg 12 bolt spindle snouts among many others We machine all sides and the top and bottom surfaces so everything is parallel. Nothing is laser or waterjet cut like cheaper versions.
