Camburg CAM-310172 05-23 fits Toyota Tacoma 2.5 Front Slapper Bump Stop Mount Kit w/ UCA Gussets Only

Camburg CAM-310172 05-23 fits Toyota Tacoma 2.5 Front Slapper Bump Stop Mount Kit w/ UCA Gussets Only

Brand : Camburg

MPN : CAM-310172

AlternatePartNumber : cmbCAM-310172

UPC : 888563195186

Product Department : Suspension

Product Category : Bump Stops

BoxQuantity : 1

Length : 11.0 inches

Width : 8.0 inches

Height : 4.0 inches

Weight : 6.0 lbs

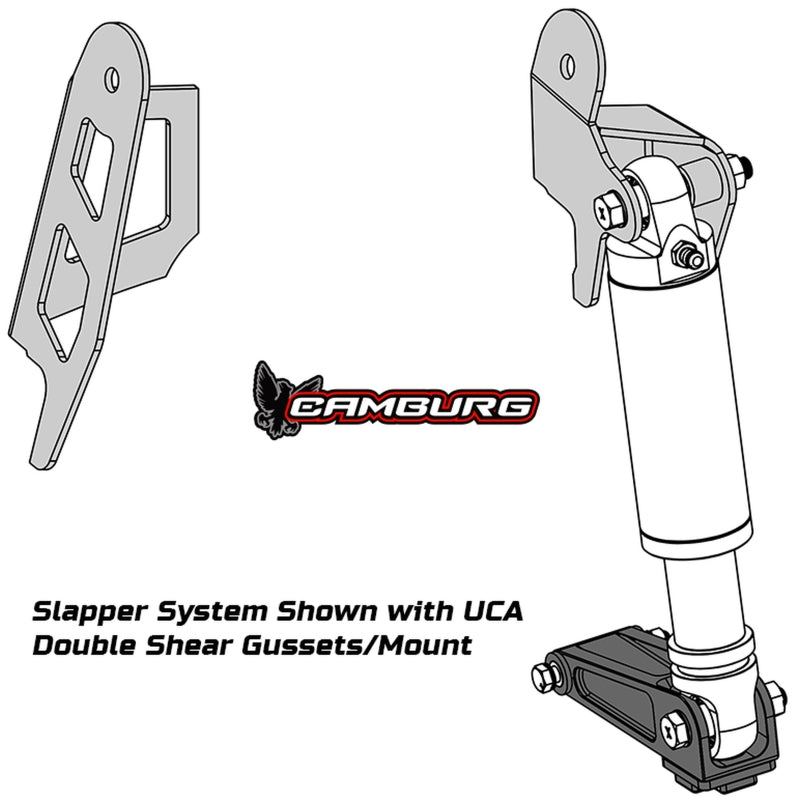

Introducing our 2.5 Slapper Bump Stop kit, designed for easy installation on our NEW Trail Series long-travel kit or stock length performance lower arms. This kit enhances strength and rigidity by double shearing the upper arm frame pivots. It offers a non-UCA gusset version for simpler installations, including a weld-on frame mount for the bump stop. Adding a bump stop provides increased control and bottoming resistance, resulting in a soft plush ride through small obstacles and improved performance on bigger hits and g-outs. The slapper arm setup allows the air bump to strike further outboard on the lower arm, making it more effective and efficient. The motion ratio geometry remains consistent throughout the bottoming out travel, ensuring constant contact with the lower arm and preventing the bump stop from swiping the arm. The bump stop only engages during bottoming, allowing free movement in the "ride zone" for a more active suspension. The slapper arm design incorporates a rubber pad to reduce noise upon contact. Our kit is designed for use with custom FOX or King 2.5 bump stops, which function similarly to air shocks. Extensive testing has been conducted to ensure optimal performance with our kit. The FOX's cerakoted gray coating, used in FOX's trophy truck race shocks, provides high performance and durability. Aircraft AN bolts are supplied for the upper and lower mounts, offering maximum strength. The mounts come raw and require welding, with a recommendation to spray them with black Steel-IT after welding. Please note that this kit is specifically designed for our Trail Series L/T kit and stock length slapper compatible lower arms, and is not compatible with our Race Series L/T kit.

This Part Fits:

Year	Make	Model	Submodel
2005-2015	Toyota	Tacoma	Base
2016-2023	Toyota	Tacoma	Limited
2005-2015	Toyota	Tacoma	Pre Runner
2016-2023	Toyota	Tacoma	SR
2016-2023	Toyota	Tacoma	SR5
2021	Toyota	Tacoma	Trail
2023	Toyota	Tacoma	Trail Special Edition
2016-2023	Toyota	Tacoma	TRD Off-Road
2015,2017-2023	Toyota	Tacoma	TRD Pro
2016-2023	Toyota	Tacoma	TRD Sport
2005-2013	Toyota	Tacoma	X-Runner
