Burly B30-1118 SS Cntrl Kt 15in Bag / 16in Louie B Bar

Burly Brand B30-1118 Burly Brand SS Cntrl Kt 15in Bag / 16in Louie B Bar

Brand : Burly Brand

MPN : B30-1118

AlternatePartNumber : 750-05211

UPC : B30-1118

Product Department : Engine Components

Product Category : Throttle Cable

BoxQuantity : 1

Length : 17.7 inches

Width : 17.1 inches

Height : 2.2 inches

Weight : 2.2 lbs

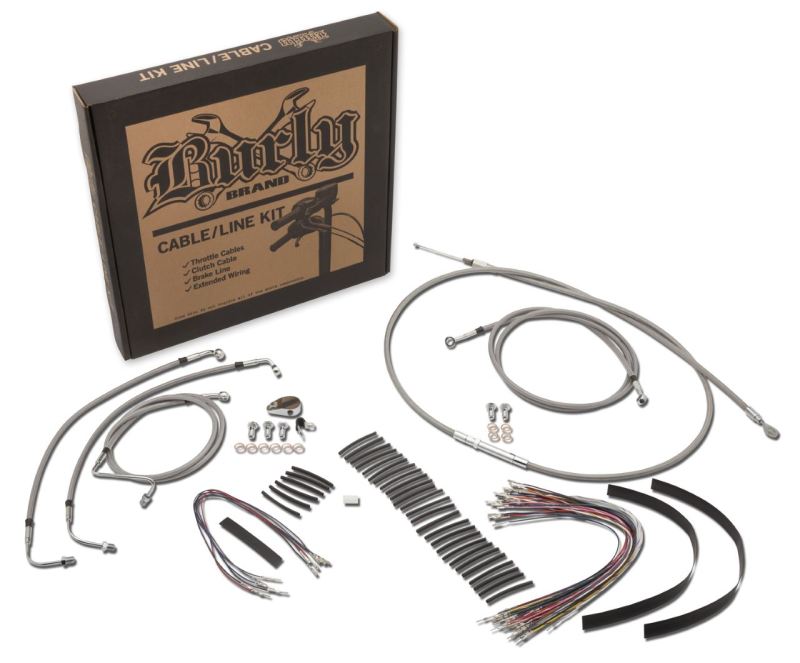

Complete cable/line installation kit for Burly Ape hangers. Kit includes extended brake line, extended clutch cable/clutch line, extended throttle/idle cables as required and all necessary wiring extensions. Brake lines feature PTFE inner liner and heavy-duty stainless steel outer braid. Dresser kits reuse stock Throttle-By-Wire harness. Made in the U.S.A. Brake lines utilize Burly's Tru-Dual brake line system that use two separate brake hoses from the master cylinder to each caliper rather than OEM single line to junction block to each caliper. Included Items: (1) Black vinyl clutch cable W/70-1/2 in. housing & 3 in. travel, (1) Black vinyl idle cable W/36-1/4 in. housing & 4-1/2 in. travel, (1) Black vinyl throttle cable W/35-3/4 in. housing & 5 in. travel, (2) Brass ferrules, (1) Black plastic barrel, (2) 51-1/2 in. Black vinyl brake line W/(1) 3/8 in./10mm 90 degree banjo fitting and (1) 3/8 in./10mm 20 degree banjo fitting, (1) Banjo bolt, (7) 3/8 in./10mm Copper crush washers, (1) Handlebar switch extensions, (4) 11 in. Shrink tubes, (19) 2-1/2 in. Shrink tubes, (4) 12 in. Shrink tubes, (1) Up front turn signal extensions, Instructions.

This Part Fits:

Year	Make	Model	Submodel
2014-2016	Harley-Davidson	FLHX Street Glide	Base
