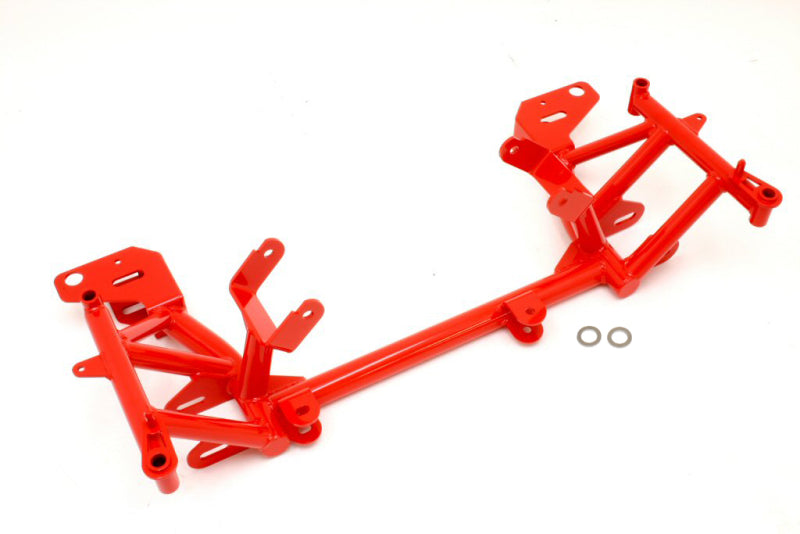

BMR KM003R 4th Gen F-Body K-Member w/ LS1 Motor Mounts and STD. Rack Mounts - R

BMR Suspension KM003R BMR 98-02 4th Gen F-Body K-Member w/ LS1 Motor Mounts and STD. Rack Mounts - Red

Brand : BMR Suspension

MPN : KM003R

AlternatePartNumber : bmrKM003R

UPC : 887753324191

Product Department : Drivetrain

Product Category : Crossmembers

BoxQuantity : 1

Length : 37.9 inches

Width : 19.0 inches

Height : 10.1 inches

Weight : 33.0 lbs

Reduce weight, increase frontend rigidity, and add clearance for large-tube headers and turbo kits with a Tubular K-members from BMR Suspension. BMR Tubular K-Members are designed to provide a lightweight alternative to the heavy and bulky factory K-member. Manufactured from 1-5/8-inch x 0.120 wall and 1-1/4-inch x 0.095 wall DOM tubing, BMRs K-members give you a lightweight, extremely strong K-member. Every BMR K-member is 100-percent bolt-in and requires no modifications for fitment. The K-members are built with provision for either factory or manual steering racks. Designed for street performance, drag race, and road race applications, BMR Tubular K-members drop weight and add loads of structural rigidity. BMRs unique K-member design feature integrated frame stands that replace the factory cast iron frame stands. This additional weight reduction allows us to use larger diameter tubing and thicker mounting plates for additional strength over other companies K-members. When combined with BMRs upper and lower A-arms, a minimum weight reduction of 42 pounds is common. With other lightweight frontend parts, weight reduction of up to 100 pounds is easily achievable. BMR Suspensions KM003 Tubular K-Member is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 4-5 hours. Proudly made in the U.S.A.!
Application Guide


This Part Fits:

Year	Make	Model	Submodel
1998-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1998-2002	Pontiac	Firebird	Formula
1998-2002	Pontiac	Firebird	Trans Am
