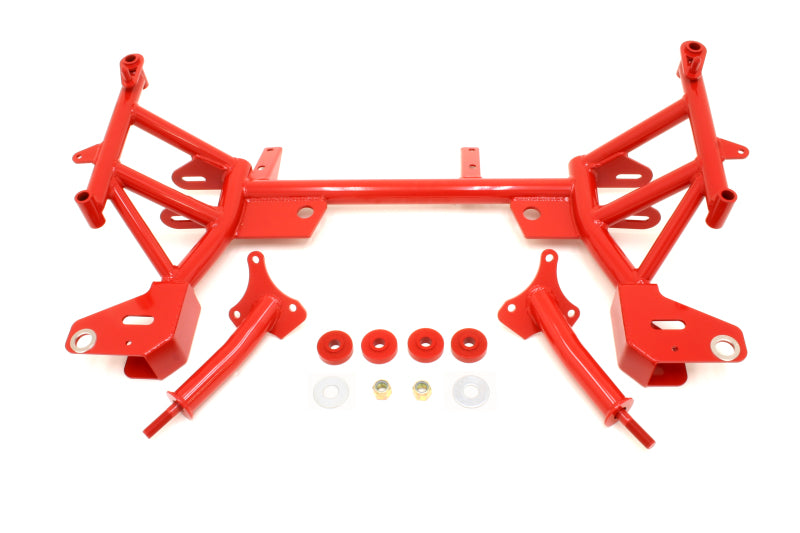

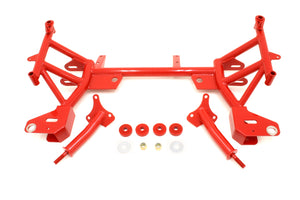

BMR KM005-1R F-Body K-Member w/ fits SBC/BBC Motor Mounts and Pinto Rack Mounts

BMR Suspension KM005-1R BMR 93-02 F-Body K-Member w/ fits SBC/BBC Motor Mounts and Pinto Rack Mounts - Red

Brand : BMR Suspension

MPN : KM005-1R

AlternatePartNumber : bmrKM005-1R

UPC : 887753324214

Product Department : Drivetrain

Product Category : Crossmembers

BoxQuantity : 1

Length : 39.0 inches

Width : 20.0 inches

Height : 10.0 inches

Weight : 34.0 lbs

Reduce weight, increase frontend rigidity, and swap a Small-Block or Big-Block Chevy engine into your F-body with a Tubular K-members from BMR Suspension. BMR Tubular K-Members are designed to provide a lightweight alternative to the heavy and bulky factory K-member. Manufactured from 1-5/8-inch x 0.120 wall and 1-1/4-inch x 0.095 wall DOM tubing, BMRs K-members give you a lightweight, extremely strong K-member. Every BMR K-member is 100-percent bolt-in and requires no modifications for fitment. The K-members are built with provision for either factory or manual steering racks.Designed for street performance, drag race, and road race applications, BMR Suspensions Tubular K-members drop weight and add loads of structural rigidity. The unique K-member design feature integrated frame stands that replace the factory cast iron frame stands. This additional weight reduction allows BMR to use larger diameter tubing and thicker mounting plates for additional strength over other companies K-members. When combined with BMRs upper and lower A-arms, a minimum weight reduction of 42 pounds is common. With other lightweight frontend parts, weight reduction of up to 100 pounds is easily achievable. The K-member also comes with specially designed engine mounts allowing you to easily swap a SBC or BBC engine into your Fourth Gen F-body with no fabrication.BMR Suspensions KM005-1 Tubular K-Member is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 4-5 hours. Proudly made in the U.S.A.!

This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
