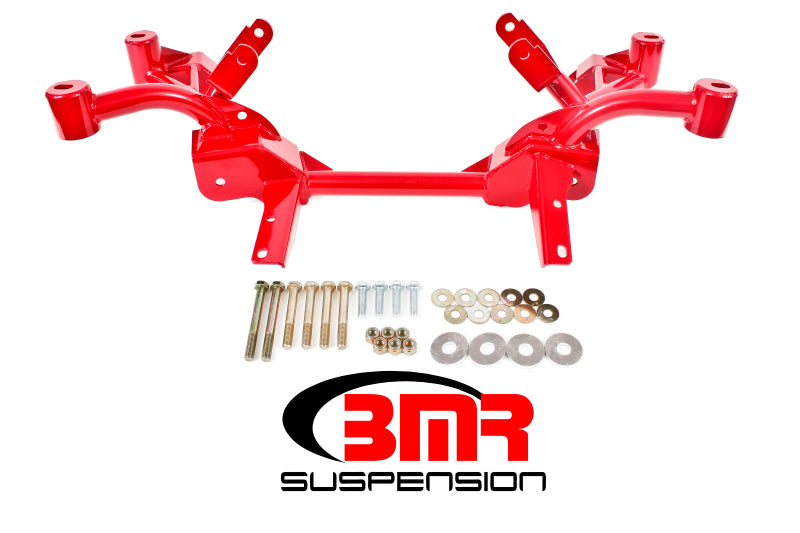

BMR KM008-1R 3rd Gen F-Body K-Member w/ LS1 Motor Mounts and Pinto Rack Mounts

BMR Suspension KM008-1R BMR 82-82 3rd Gen F-Body K-Member w/ LS1 Motor Mounts and Pinto Rack Mounts - Red

Brand : BMR Suspension

MPN : KM008-1R

AlternatePartNumber : bmrKM008-1R

UPC : 887753324337

Product Department : Drivetrain

Product Category : Crossmembers

BoxQuantity : 1

Length : 48.0 inches

Width : 26.0 inches

Height : 11.0 inches

Weight : 41.0 lbs

Reduce weight, increase frontend rigidity, and swap a modern LS Chevy engine into your F-body with a Tubular K-members from BMR Suspension. BMR Tubular K-Members are designed to provide a lightweight alternative to the heavy and bulky factory K-member. Manufactured from 1-1/2-inch x 0.120 wall DOM steel tubing and 3/16-inch laser cut, CNC-formed steel plates, BMRs K-members give you a lightweight, extremely strong K-member. Every BMR K-member is 100-percent bolt-in and requires no modifications for fitment. The K-members are built with provision for either factory or manual steering racks. Designed for street performance, drag race, and road race applications, BMR Suspensions Tubular K-members drop weight and add loads of structural rigidity. The unique K-member design feature integrated frame stands that replace the factory cast iron frame stands. This additional weight reduction allows BMR to use larger diameter tubing and thicker mounting plates for additional strength over other companies K-members. When combined with BMRs upper and lower A-arms, a minimum weight reduction of over 30 pounds is common. With other lightweight frontend parts, weight reduction of up to 100 pounds is easily achievable. BMR Suspensions KM008-1 Tubular K-Member is available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 4-5 hours. Proudly made in the U.S.A.! NOTE: Not compatible with OE A-arms.
Application Guide


This Part Fits:

Year	Make	Model	Submodel
1988	Chevrolet	Camaro	Base
1982-1986	Chevrolet	Camaro	Berlinetta
1985-1990	Chevrolet	Camaro	Iroc-Z
1987	Chevrolet	Camaro	LT
1989-1992	Chevrolet	Camaro	RS
1992	Chevrolet	Camaro	RS Heritage Edition
1982-1987	Chevrolet	Camaro	Sport
1982-1987,1991-1992	Chevrolet	Camaro	Z28
1992	Chevrolet	Camaro	Z28 Heritage Edition
1982	Chevrolet	Camaro	Z28 Indianapolis 500 Pace Car
1982-1992	Pontiac	Firebird	Base
1989-1992	Pontiac	Firebird	Formula
1982-1986	Pontiac	Firebird	S/E
1982-1992	Pontiac	Firebird	Trans Am
1989-1992	Pontiac	Firebird	Trans Am GTA
1989	Pontiac	Firebird	Trans Am GTA SE
