BMR RSK017R A-Body Non-Adj. Rear Suspension Kit - Red

BMR Suspension RSK017R BMR 68-72 A-Body Non-Adj. Rear Suspension Kit - Red

Brand : BMR Suspension

MPN : RSK017R

AlternatePartNumber : bmrRSK017R

UPC : 887753325594

Product Department : Suspension

Product Category : Suspension Packages

BoxQuantity : 1

Length : 26.0 inches

Width : 10.0 inches

Height : 4.0 inches

Weight : 23.0 lbs

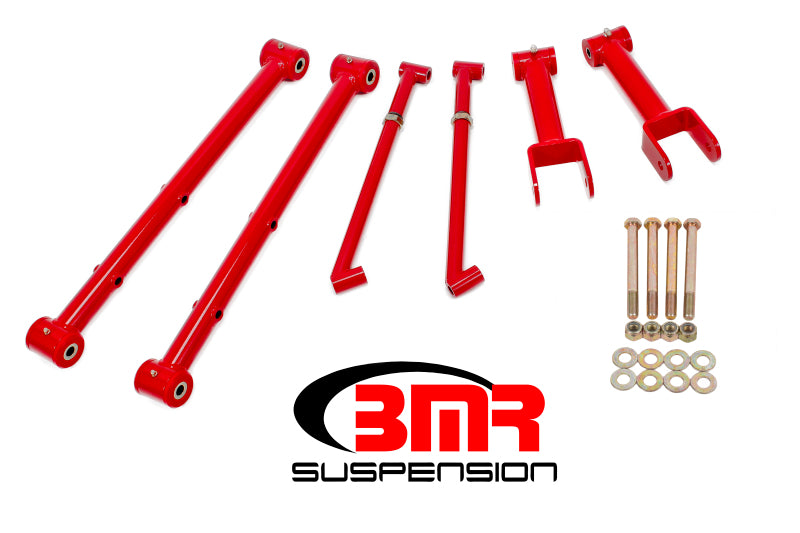

Launching harder, reducing wheel hop, and adding cornering consistency to your 1968-1972 GM A-body is easy with a Rear Suspension Kit from BMR Suspension. Stock stamped steel control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMRs polyurethane, non-adjustable Rear Suspension Kit (RSK017) consists of lower control arms, upper control arms, and control arm reinforcement braces. Manufactured from heavy-duty 1.50-inch diameter, 0.120-inch wall DOM steel tubing, the lower control arms provide all the strength youll need for any performance application. The upper control arms are manufactured from 1.625-inch diameter, 0.120-inch wall, DOM steel tubing, strong enough for any compression load. The reinforcement braces are made from 1.0-inch diameter, 0.156-inch wall, steel tubing to help reduce frame deflection. The upper and lower control arms contain greasable, 95-durometer polyurethane bushings that add a solid, more responsive feel over the stock rubber bushings. BMRs bushings are internally fluted, which keeps grease in the bushing, even under heavy load. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings. In addition, the reinforcement braces strengthen the upper control arm frame mounts by tying the upper mounts and lower mounts together.
Application Guide


This Part Fits:

Year	Make	Model	Submodel
1970,1972	Buick	Skylark	350
1968-1972	Buick	Skylark	Base
1968-1972	Buick	Skylark	Custom
1968	Chevrolet	Chevelle	300
1968-1969	Chevrolet	Chevelle	300 Deluxe
1968,1970-1972	Chevrolet	Chevelle	Base
1968-1972	Chevrolet	Chevelle	Concours
1969-1972	Chevrolet	Chevelle	Concours Estate
1969-1972	Chevrolet	Chevelle	Greenbrier
1968-1972	Chevrolet	Chevelle	Malibu
1968-1972	Chevrolet	Chevelle	Nomad
1968-1972	Chevrolet	Chevelle	SS
1968-1972	Chevrolet	El Camino	Base
1968-1972	Chevrolet	El Camino	Custom
1968-1972	Chevrolet	El Camino	SS
1970-1972	Chevrolet	Monte Carlo	Base
1968-1971	Oldsmobile	442	Base
1968-1972	Oldsmobile	Cutlass	Base
1972	Oldsmobile	Cutlass	Cruiser
1968,1971-1972	Oldsmobile	Cutlass	S
1968-1972	Pontiac	GTO	Base
1970-1971	Pontiac	GTO	The Judge
1968-1972	Pontiac	LeMans	Base
1972	Pontiac	LeMans	Luxury
1969-1970	Pontiac	LeMans	Safari
1970-1972	Pontiac	LeMans	Sport
1971	Pontiac	LeMans	T37
