Description

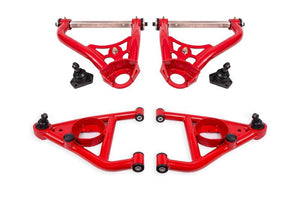

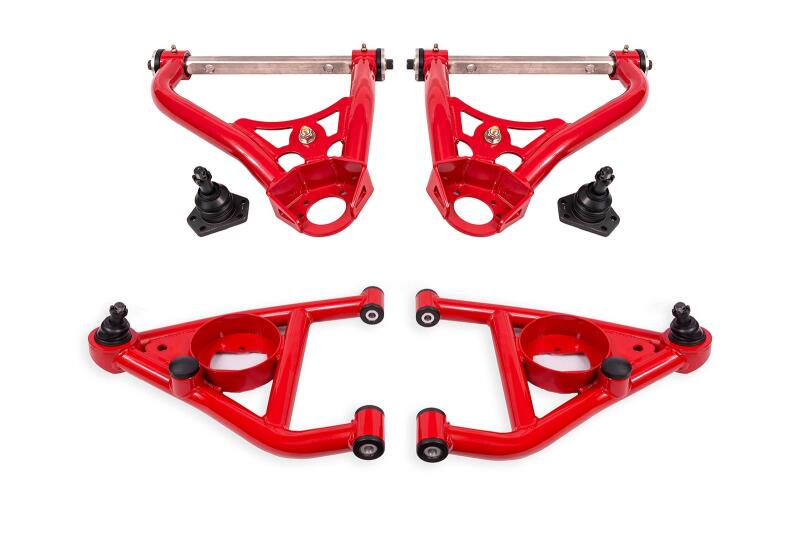

BMR Suspension AAK311R BMR 67-69 fits GM F-Body / 68-74 X-Body Non-Adj. Upper & Lower A-Arms (Polyurethane) - Red
Brand : BMR Suspension
MPN : AAK311R
AlternatePartNumber : bmrAAK311R
UPC : 887753736208
Product Department : Suspension
Product Category : Control Arms
BoxQuantity : 1
Length : 27.2 inches
Width : 19.6 inches
Height : 10.7 inches
Weight : 44.4 lbs
Fits 1967-1969 GM F-Bodies;Fits 1968-1974 GM X-Bodies;Designed for vehicles where the bump stops are located on the front sides of the lower A-arms;Manufactured from heavy-duty 1.25-inch, 0.095-inch wall and 1.625-inch, 0.120-inch wall DOM tubing;Laser-cut, CNC-formed plate steel braces;Greaseable, internally fluted Delrin bushings;Includes new ball joints;Preassembled with new polyurethane bump stops;Dual-offset cross-shafts for minimizing shim stack on AAU311;Eliminates A-arm deflection;Non-adjustable;Requires less shim stack for negative camber than factory arms;Provides 4 additional degrees of positive caster;Additional header clearance;Improves geometry and increases lateral grip during cornering situations;Available in red or black hammertone powder coat for long lasting good looks;4-5 hour installation time;Proudly designed in the USA!;Proudly made in the USA!Application Guide
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1967-1969 | Chevrolet | Camaro | Base |
| 1967-1969 | Chevrolet | Camaro | RS |
| 1967-1969 | Chevrolet | Camaro | SS |
| 1967-1969 | Chevrolet | Camaro | Z28 |
| 1969-1974 | Chevrolet | Nova | Base |
| 1973-1974 | Chevrolet | Nova | Custom |
| 1968-1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO |
| 1967-1969 | Pontiac | Firebird | 400 |
| 1967-1969 | Pontiac | Firebird | Base |
| 1967 | Pontiac | Firebird | HO |
| 1967-1969 | Pontiac | Firebird | Sprint |
| 1969 | Pontiac | Firebird | Trans Am |

BMR AAK311R 67-69 fits GM F-Body / 68-74 X-Body Non-Adj. Upper & Lower A-Arms (
Manufacturing Part Number (MPN)
AAK311R
Price:
Sale price$999.95
