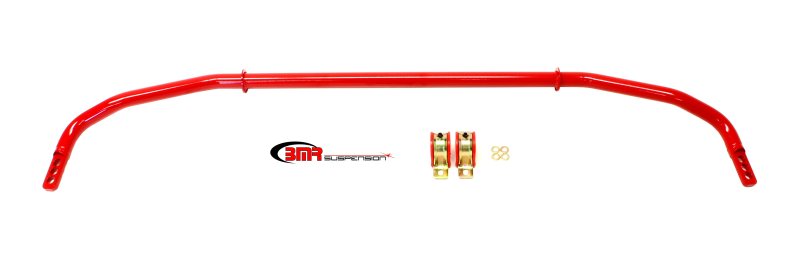

BMR SB033R 5th Gen fits Camaro Rear Hollow 32mm Adj. Sway Bar Kit w/ Bushings -

BMR Suspension SB033R BMR 12-15 5th Gen fits Camaro Rear Hollow 32mm Adj. Sway Bar Kit w/ Bushings - Red

Brand : BMR Suspension

MPN : SB033R

AlternatePartNumber : bmrSB033R

UPC : 887753326164

Product Department : Suspension

Product Category : Sway Bars

BoxQuantity : 1

Length : 66.0 inches

Width : 14.0 inches

Height : 5.0 inches

Weight : 19.0 lbs

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB033 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 32mm DOM tubing, the SB033 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality.Thrust washers are welded to the bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers. The SB033 attaches to your Camaro with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The fabricated laser cut, TIG-welded steel sway bar end links are reinforced to minimize deflection. The sway bar is 3-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.
Application Guide


This Part Fits:

Year	Make	Model	Submodel
2012-2015	Chevrolet	Camaro	SS
2014-2015	Chevrolet	Camaro	Z/28
2012-2015	Chevrolet	Camaro	ZL1
