BILSTEIN 41-322697 B8 8112 Series 05 22 fits Toyota Tacoma Zone Control CR Front

Bilstein 41-322697 Bilstein B8 8112 Series 05-22 fits Toyota Tacoma Zone Control CR Front Right Corner Module

Brand : Bilstein

MPN : 41-322697

AlternatePartNumber : bil41-322697

UPC : 651860887128

Product Department : Suspension

Product Category : Suspension Packages

BoxQuantity : 1

Length : 33.0 inches

Width : 11.8 inches

Height : 9.1 inches

Weight : 37.7 lbs

Prop65 : Yes

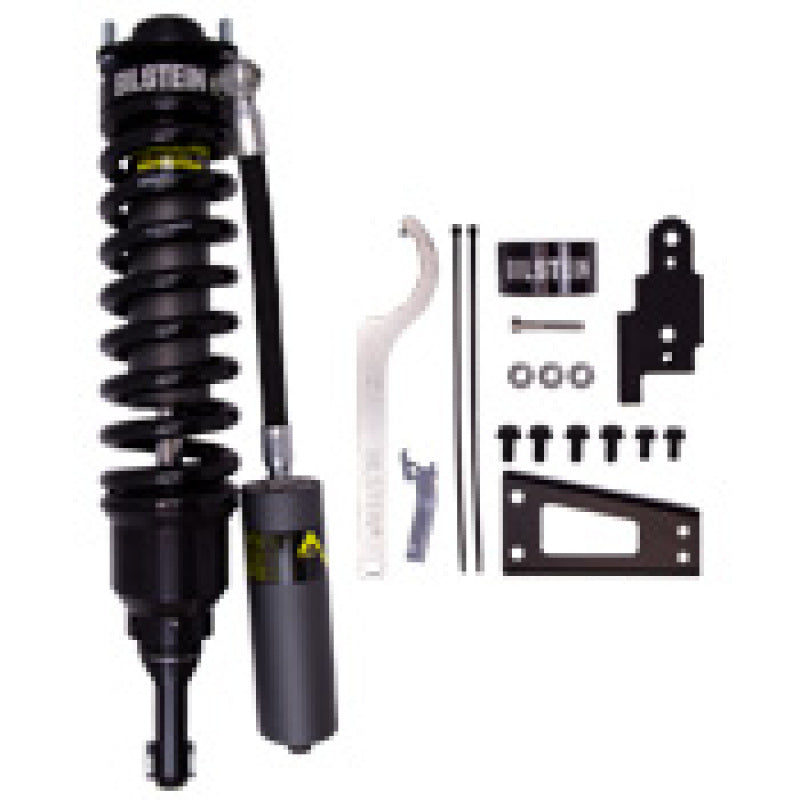

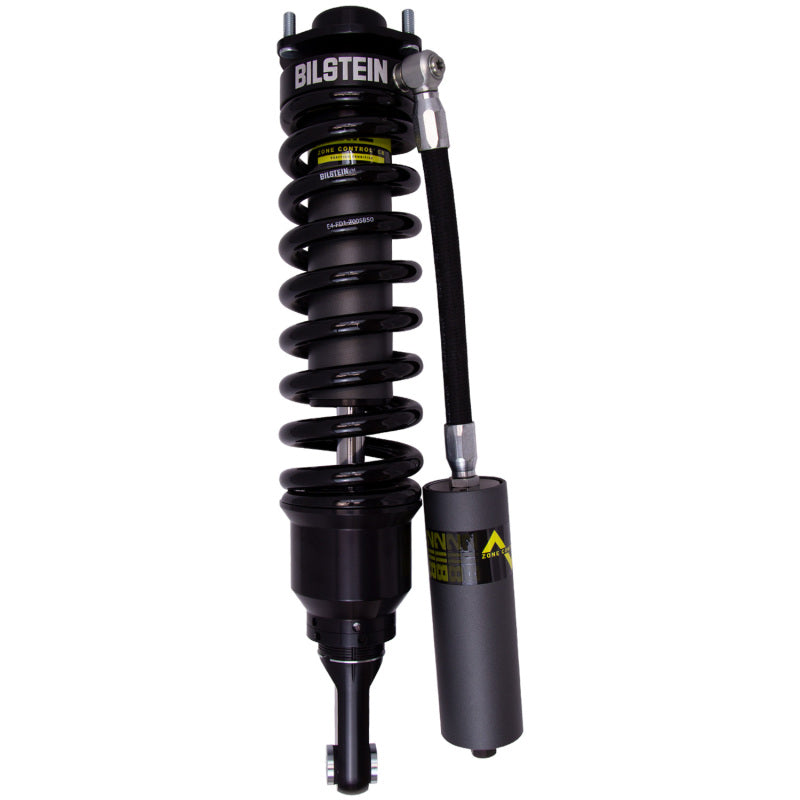

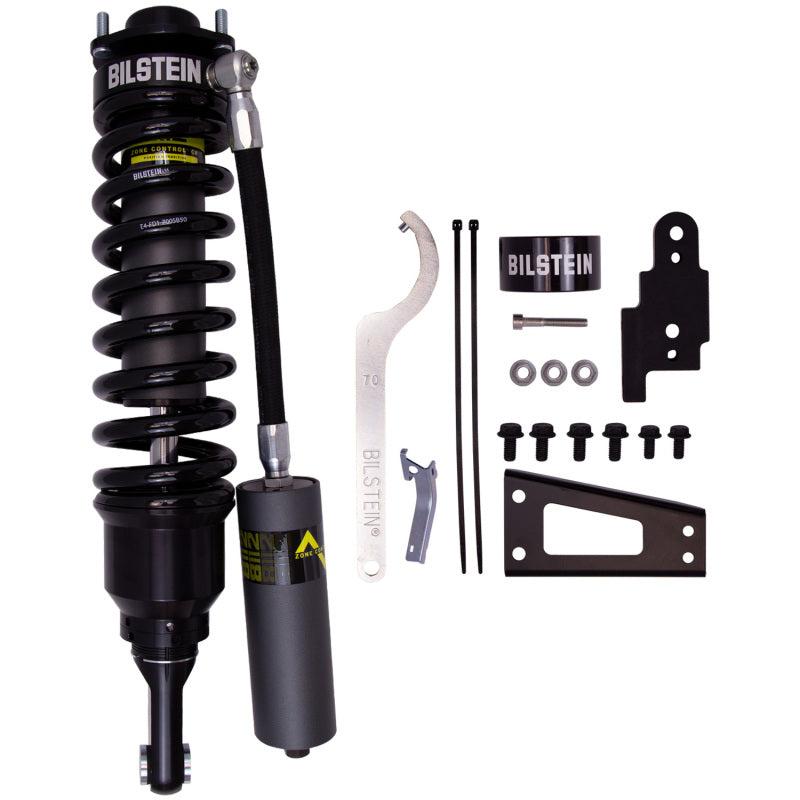

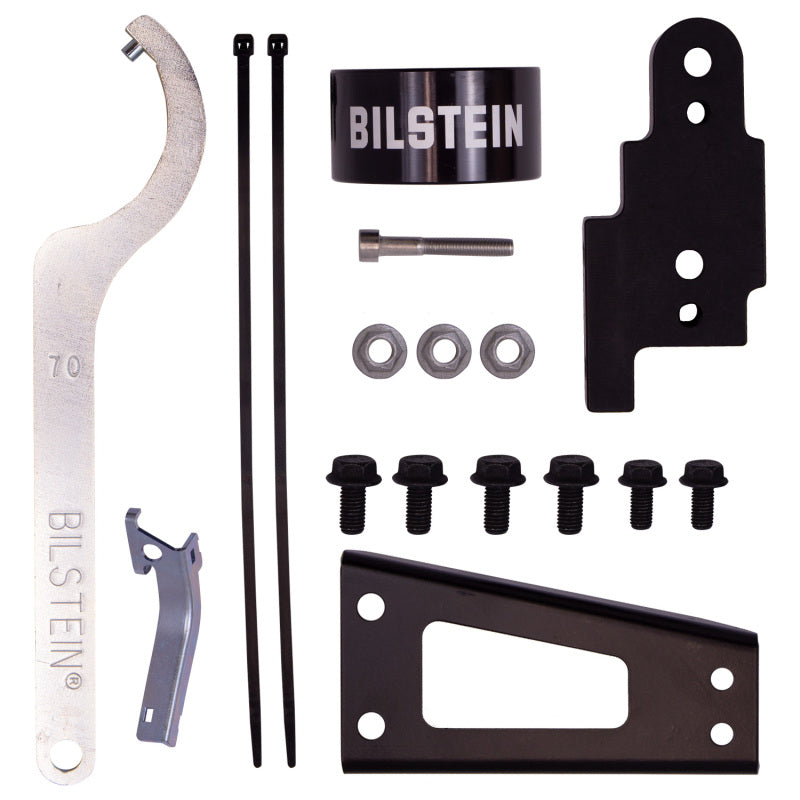

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Installation Instructions
Material Safety Data Sheet
Product Brochure - a specific brochure describing a Product


This Part Fits:

Year	Make	Model	Submodel
2005-2015	Toyota	Tacoma	Base
2016-2023	Toyota	Tacoma	Limited
2005-2015	Toyota	Tacoma	Pre Runner
2016-2023	Toyota	Tacoma	SR
2016-2023	Toyota	Tacoma	SR5
2021	Toyota	Tacoma	Trail
2023	Toyota	Tacoma	Trail Special Edition
2016-2023	Toyota	Tacoma	TRD Off-Road
2015,2017-2023	Toyota	Tacoma	TRD Pro
2016-2023	Toyota	Tacoma	TRD Sport
