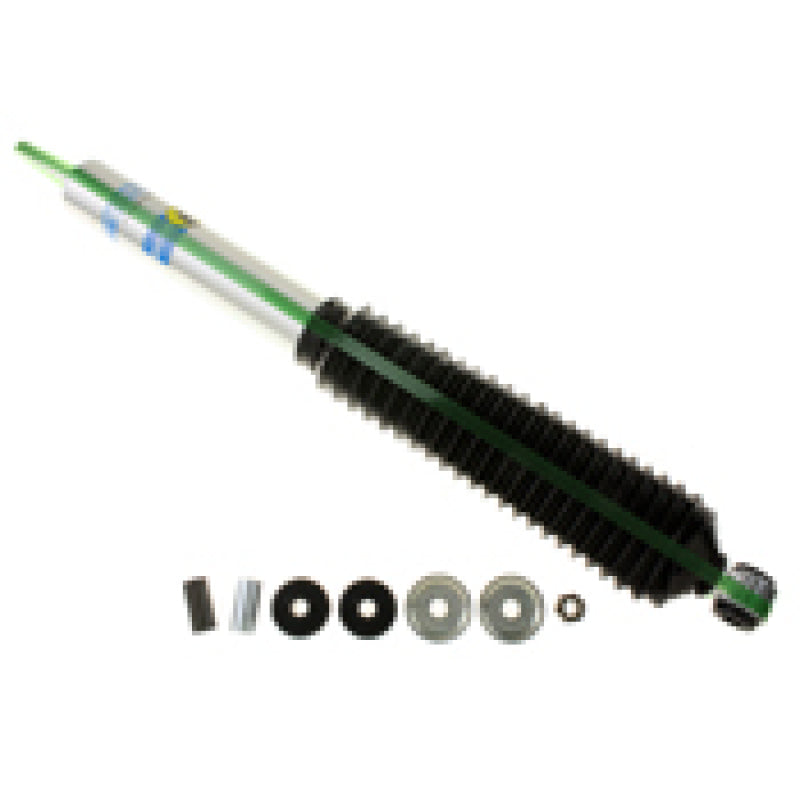

BILSTEIN 33-230412 5125 Series KBOA Lifted Truck Collapsed L 385.80mm Extended L

Bilstein 33-230412 Bilstein 5125 Series KBOA Lifted Truck Collapsed L 385.80mm Extended L 619.30mm Shock Absorber

Brand : Bilstein

MPN : 33-230412

AlternatePartNumber : bil33-230412

UPC : 651860729305

Product Department : Suspension

Product Category : Shocks and Struts

BoxQuantity : 1

Length : 27.7 inches

Width : 3.0 inches

Height : 2.9 inches

Weight : 5.5 lbs

Prop65 : Yes

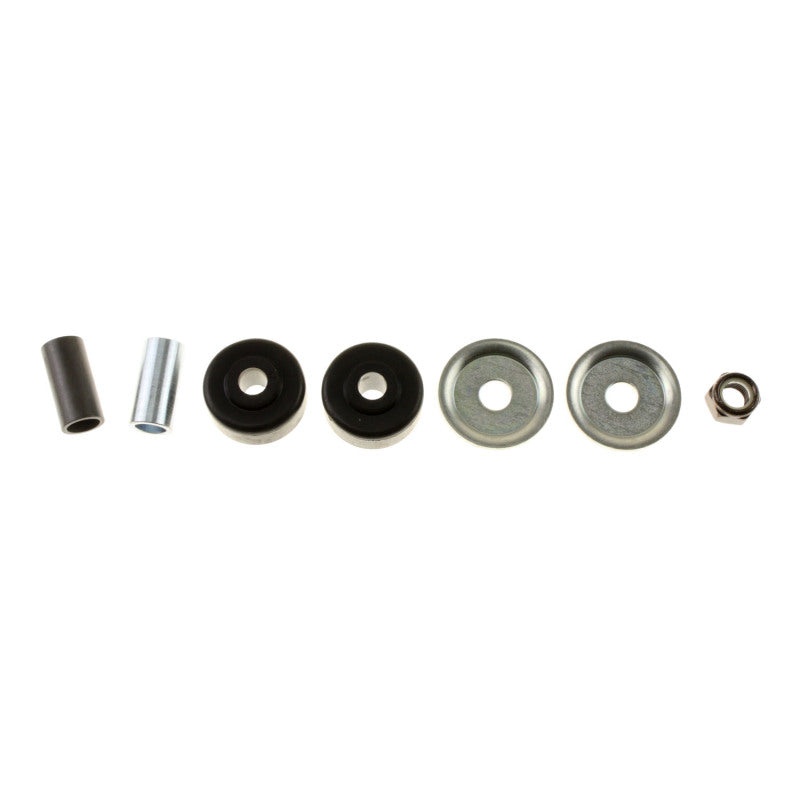

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
