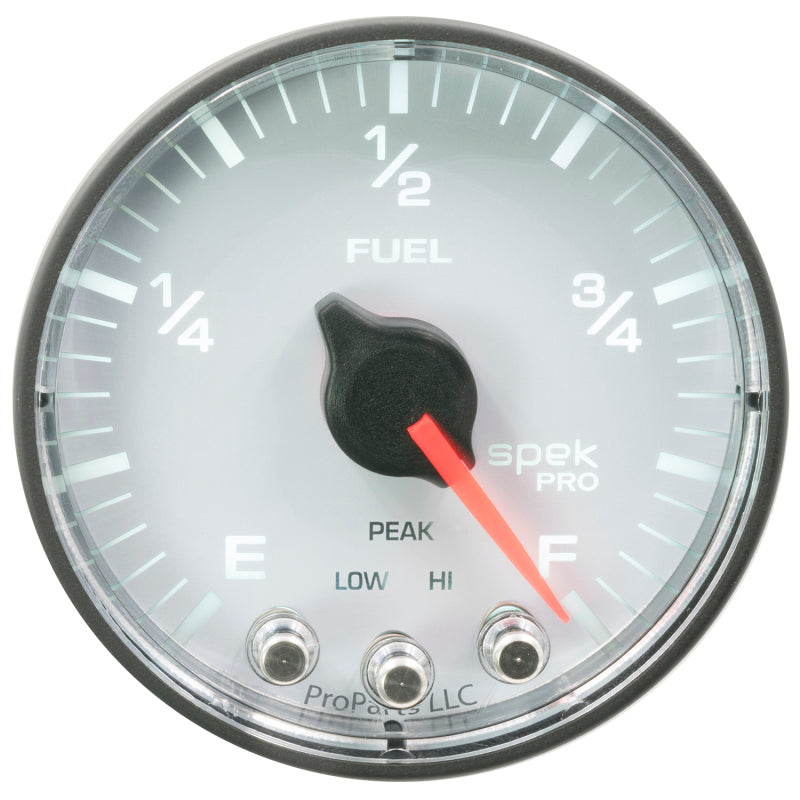

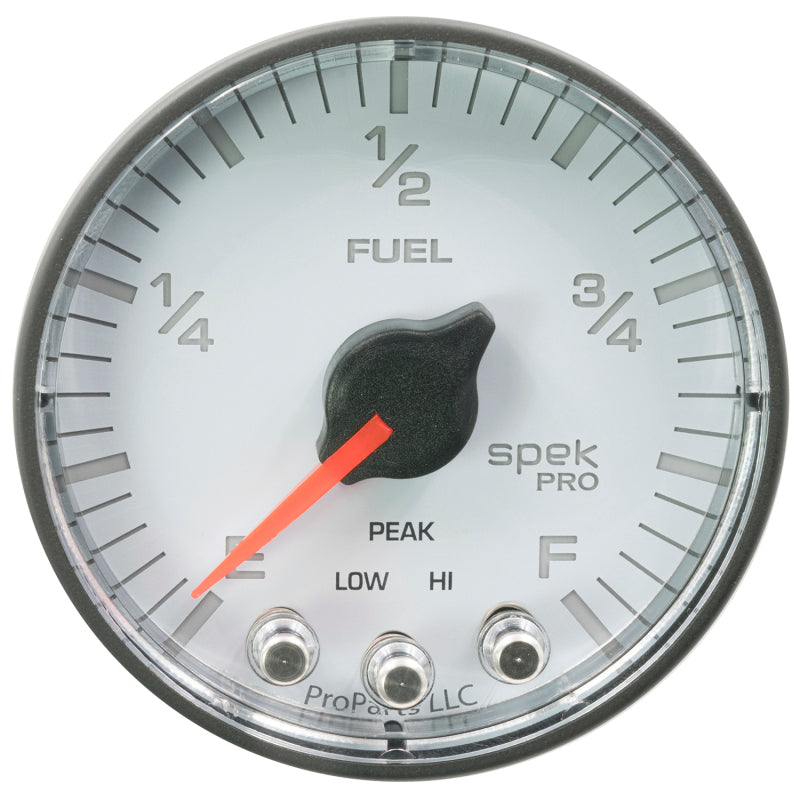

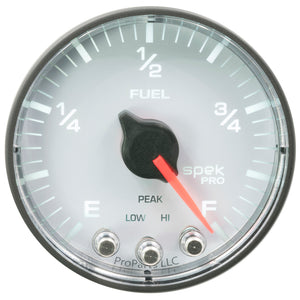

AutoMeter P312128 Autometer Spek-Pro Gauge Fuel Level 2 1/16in 0-270 Programmable Wht/Blk

AutoMeter P312128 Autometer Spek-Pro Gauge Fuel Level 2 1/16in 0-270 Programmable Wht/Blk

Brand : AutoMeter

MPN : P312128

AlternatePartNumber : atmP312128

UPC : 46074152269

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 5.5 inches

Width : 5.5 inches

Height : 4.75 inches

Weight : 0.8 lbs

Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.
