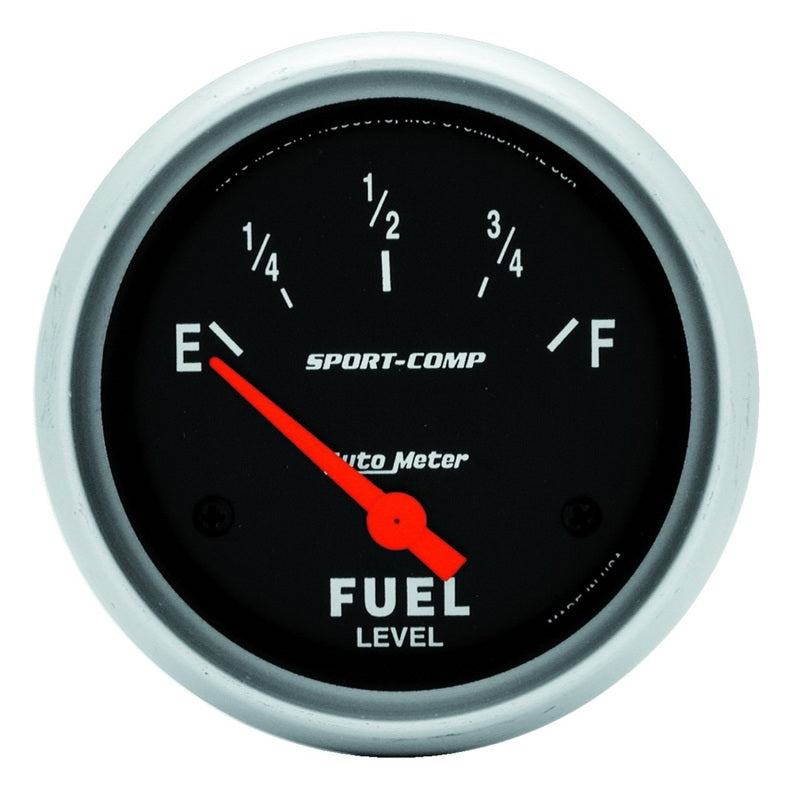

AutoMeter 3514 AutoMeter Gauge Fuel Level 2-5/8in. 0 Ohm(e) to 90 Ohm(f) Elec Sport-Comp

AutoMeter 3514 AutoMeter Gauge Fuel Level 2-5/8in. 0 Ohm(e) to 90 Ohm(f) Elec Sport-Comp

Brand : AutoMeter

MPN : 3514

AlternatePartNumber : atm3514

UPC : 46074035142

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 5.5 inches

Width : 5.5 inches

Height : 5.5 inches

Weight : 0.7 lbs

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Installation Instructions
