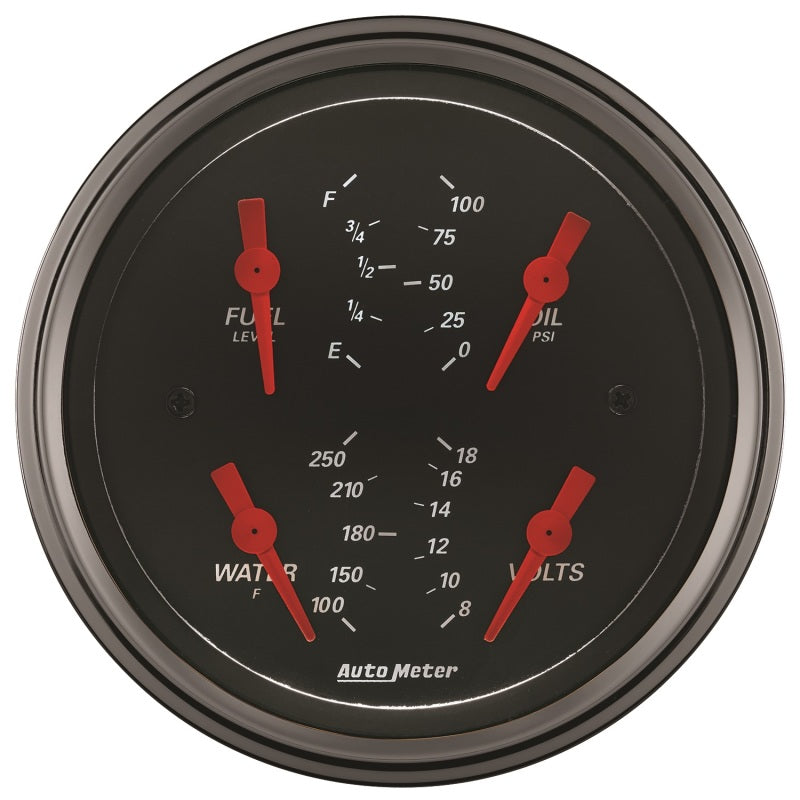

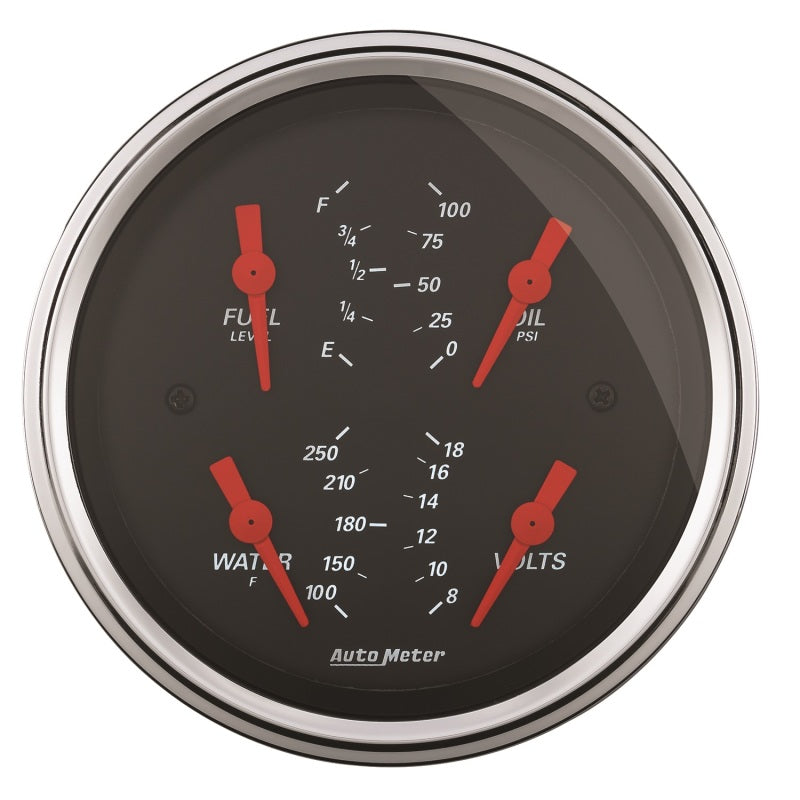

AutoMeter 1414 Autometer Designer Black 3.375in Quad Gauge - Fuel Level / Oil Pressure / Water Temp. / Voltmeter

AutoMeter 1414 Autometer Designer Black 3.375in Quad Gauge - Fuel Level / Oil Pressure / Water Temp. / Voltmeter

Brand : AutoMeter

MPN : 1414

AlternatePartNumber : atm1414

UPC : 46074014147

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 6.5 inches

Width : 6.0 inches

Height : 5.5 inches

Weight : 1.25 lbs

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 0 Ohms Empty To 90 Ohms Full (Compatible With Amid 60S Through Mid 90S Gm Fuel Level Senders).
Installation Instructions
