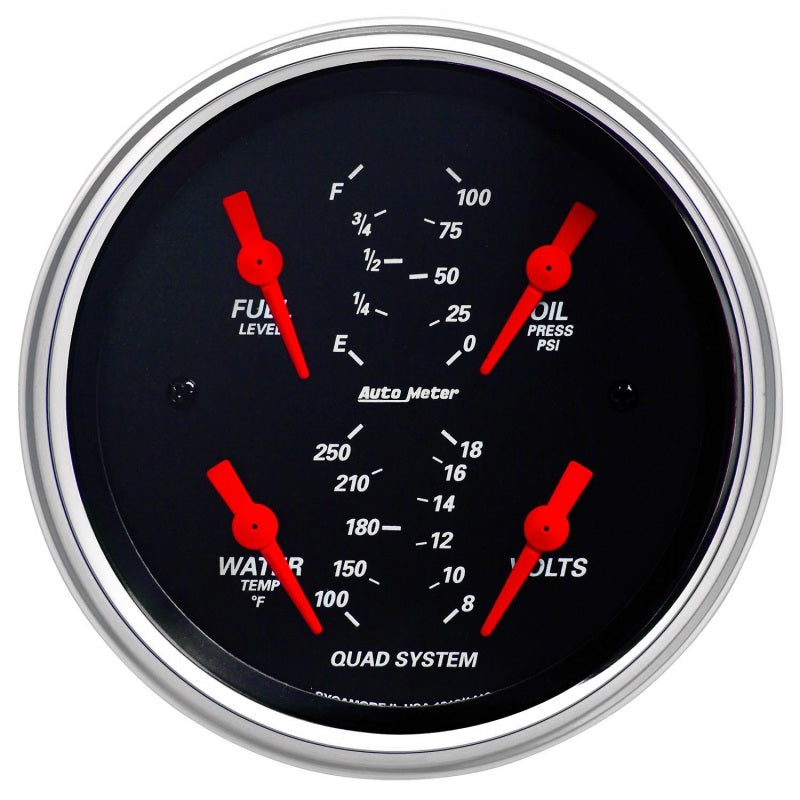

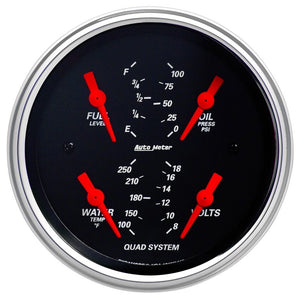

AutoMeter 1412 Autometer Designer Black 3-3/8in Quad Gauge - Fuel Level/Oil Pressure/Water Temperature/Voltmeter

AutoMeter 1412 Autometer Designer Black 3-3/8in Quad Gauge - Fuel Level/Oil Pressure/Water Temperature/Voltmeter

Brand : AutoMeter

MPN : 1412

AlternatePartNumber : atm1412

UPC : 46074014123

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 6.25 inches

Width : 6.25 inches

Height : 6.0 inches

Weight : 1.8 lbs

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).
Installation Instructions
