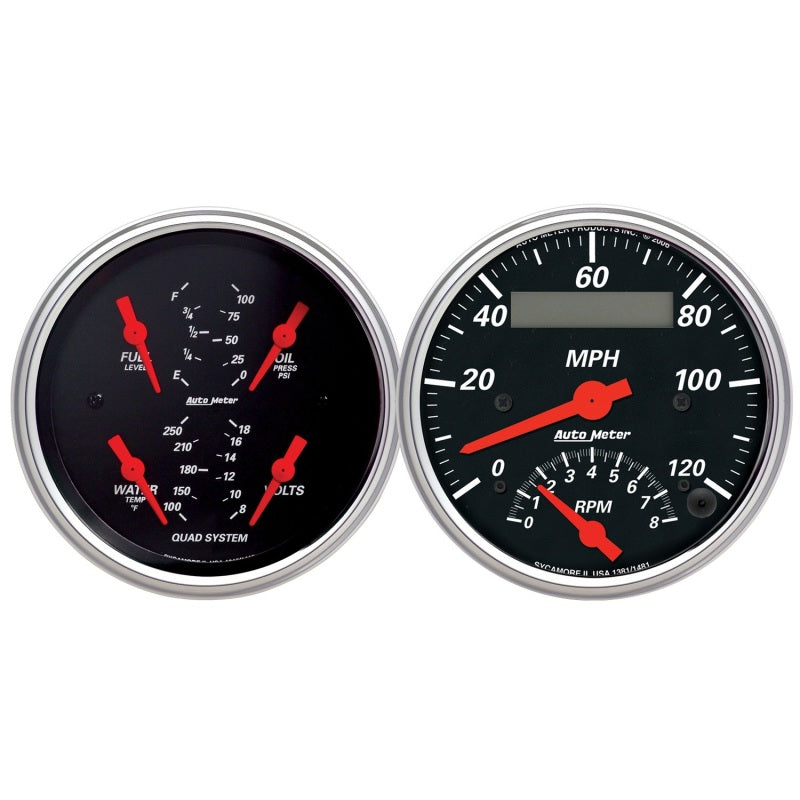

AutoMeter 1409 Autometer Designer 3-3/8in In-Dash Kit Box-Tach Speedo Combo & Elec Oil Press, H2O Temp, Volt, Fuel

AutoMeter 1409 Autometer Designer 3-3/8in In-Dash Kit Box-Tach Speedo Combo & Elec Oil Press, H2O Temp, Volt, Fuel

Brand : AutoMeter

MPN : 1409

AlternatePartNumber : atm1409

UPC : 46074014093

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 17.75 inches

Width : 8.75 inches

Height : 4.5 inches

Weight : 4.85 lbs

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).
