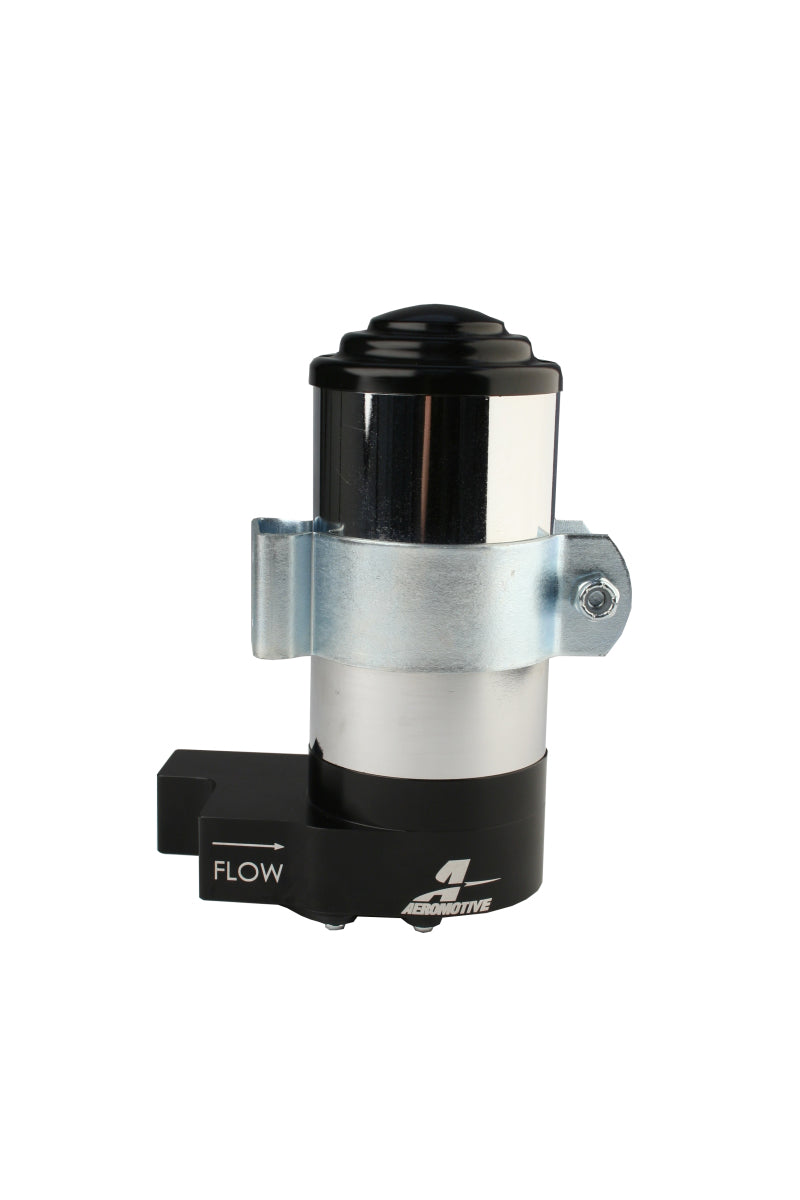

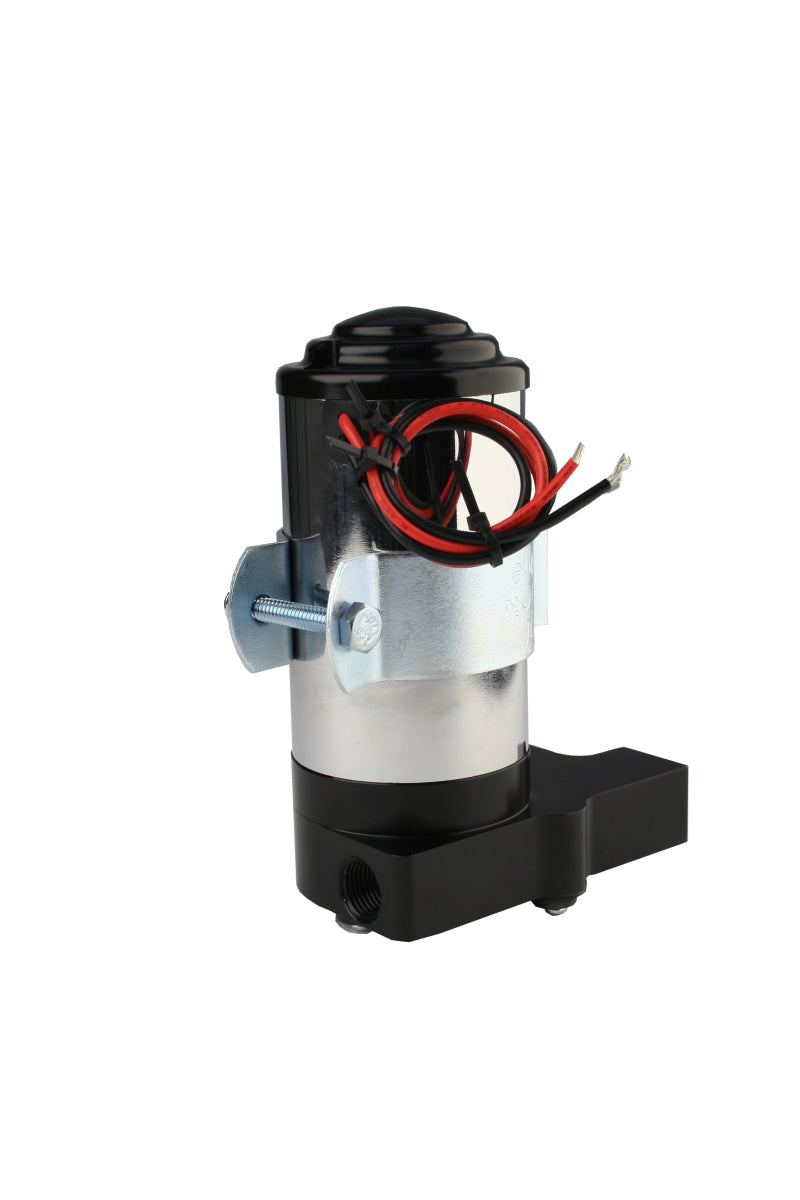

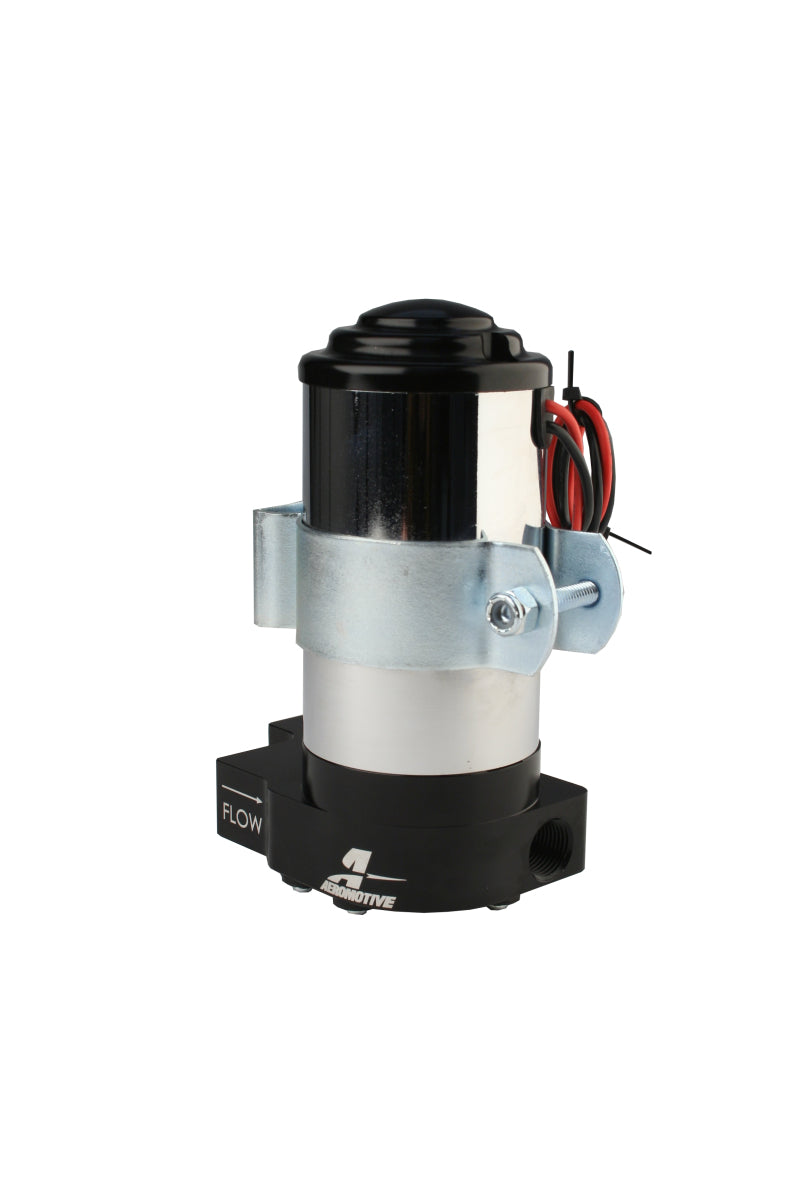

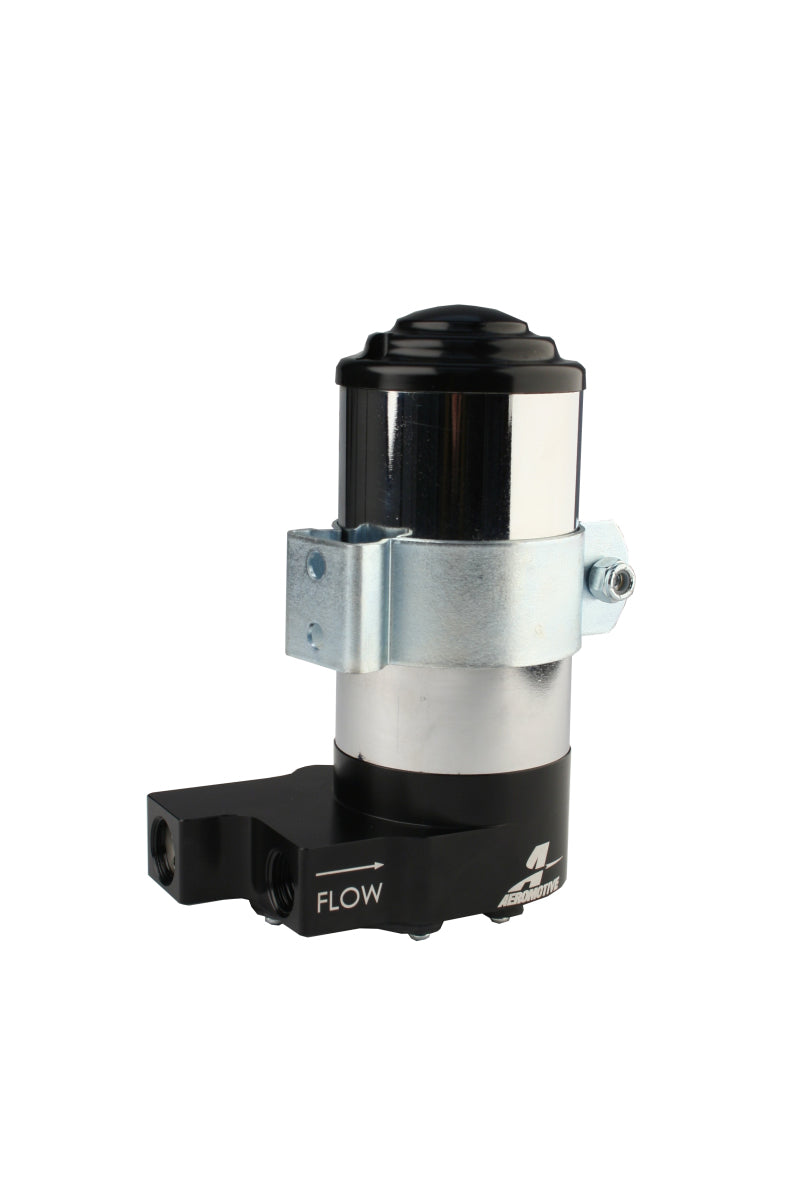

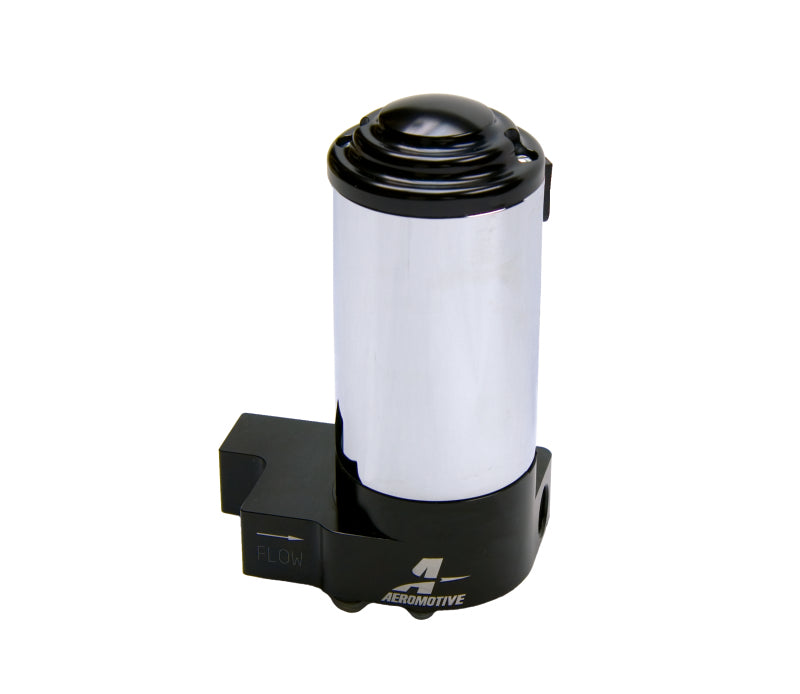

Aeromotive 11209 High Output (HO) (7 PSI) Billet Carbureted Fuel Pump - 3/8in

Aeromotive 11209 Aeromotive High Output (HO) (7 PSI) Billet Carbureted Fuel Pump - 3/8in NPT Ports

Brand : Aeromotive

MPN : 11209

AlternatePartNumber : aer11209

UPC : 684980002324

Product Department : Fuel Delivery

Product Category : Fuel Pumps

BoxQuantity : 1

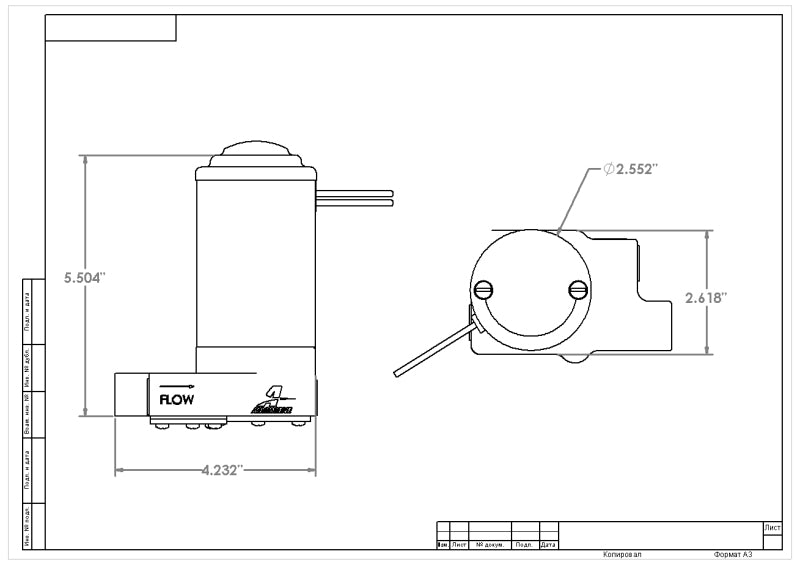

Length : 6.75 inches

Width : 5.5 inches

Height : 4.25 inches

Weight : 4.06 lbs

Prop65 : Yes

Not CARB Legal

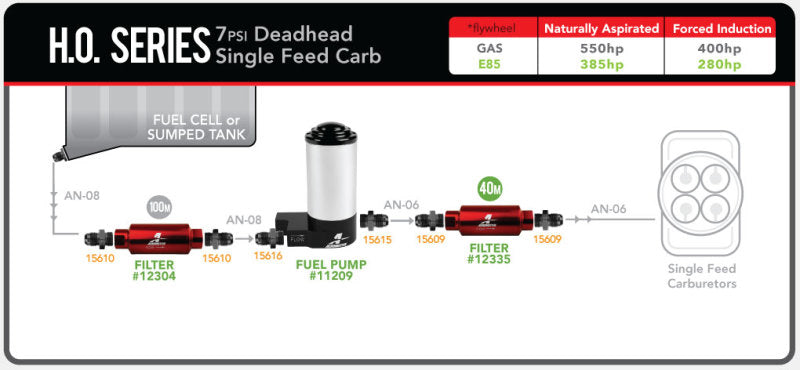

Ideal for carbureted power plants not using a separate fuel pressure regulator. The H/O Fuel Pump is designed for engines making 200-600 HP and is ideal for street cars and mild race cars alike. Similar to our SS Fuel Pump (P/N 11203), but internally regulated to 7 PSI. P/N 11209 features 3/8 NPT inlet and outlet ports. Durable billet construction. Fuel flow exceeds 90 GPH at 5 PSI and draws less than 5 amps. Internally regulated to 7 PSI, eliminating the need for a separate regulator on most carburetors. Rated for continuous duty, the pumping mechanism features a composite rotor, stainless steel vanes and heat treated steel top and bottom plates for durability.
