Description

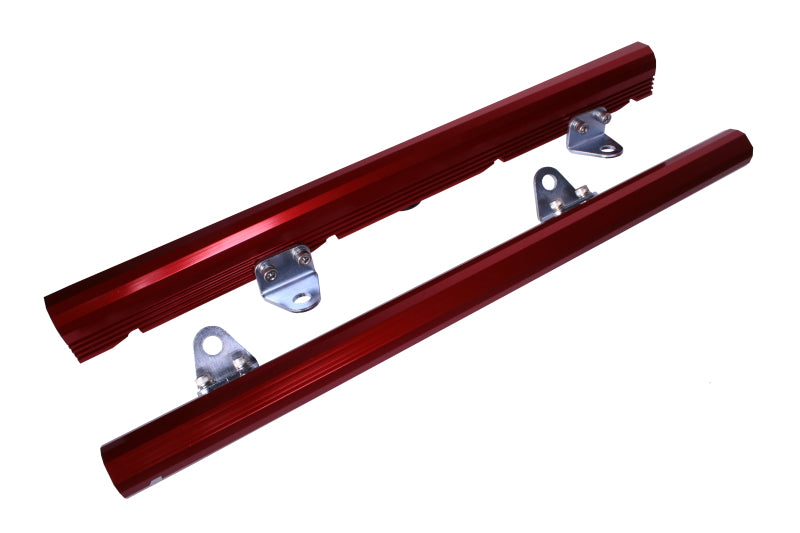

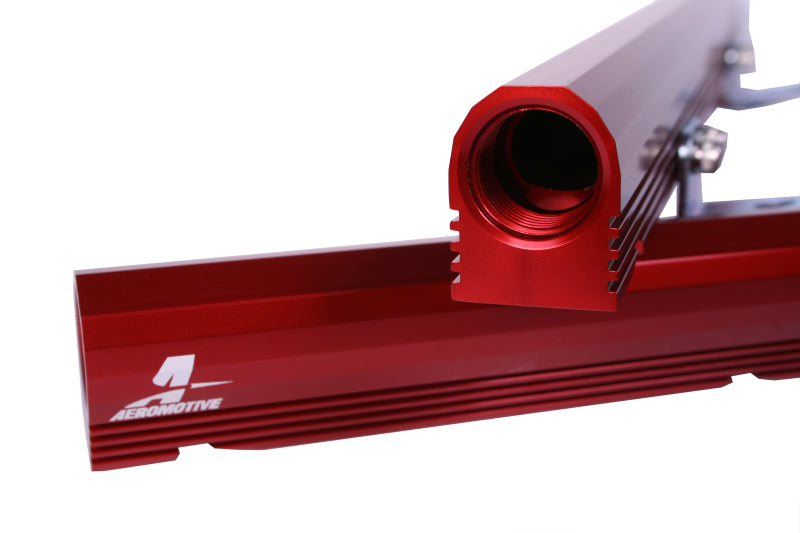

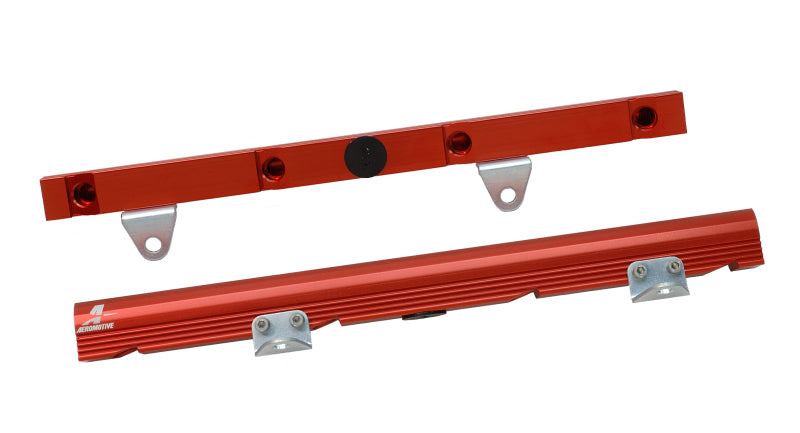

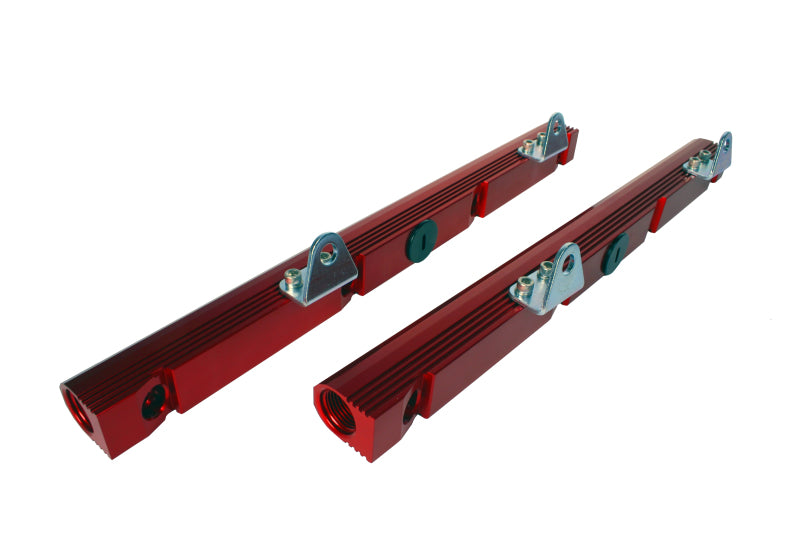

Aeromotive 14106 GM LS1/LS6 Billet Fuel Rails
Brand : Aeromotive
ManufacturerPart : 14106
UPC : 684980002133
Length : 17.6 inches
Width : 6.5 inches
Height : 2.2 inches
Weight : 3 lbs
Box Quantity : 1
Prop65 : Y
Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with ?bolt-on? ease of installation. GM 1997-2004 LS1 & 2001-2005 LS6?? Rails Only. ORB-08 Ports with compact connections and positive, leak-free sealing. Full 5/8' ID through bore, capable of supporting up to 3,000 HP. Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641. Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation. Additional inlet/outlet ports are provided where required for plumbing convenience. CNC-machined, billet aluminum construction for unequaled fit and finish. Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and ?bolt-on? ease of installation. Red, Type II bright dip anodized finish that looks great and protects against corrosion.
