Aeromotive 14147 Fuel Rails - LS1 Edelbrock 29085

Name: Aeromotive 14147 Fuel Rails - LS1 Edelbrock 29085
Brand: Aeromotive
SKU: AER14147
Price: 358.45 USD
Availability: InStock

Aeromotive

Manufacturing Part Number (MPN)

14147

Price:

$358.45

Stock:

Re-stocking soon

Quantity:

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

Aeromotive 14147 Aeromotive Fuel Rails - LS1 Edelbrock 29085

Brand : Aeromotive

MPN : 14147

AlternatePartNumber : aer14147

UPC : 684980002966

Product Department : Fuel Delivery

Product Category : Fuel Rails

BoxQuantity : 1

Length : 18.0 inches

Width : 6.75 inches

Height : 1.5 inches

Weight : 5.0 lbs

Prop65 : Yes

Not CARB Legal

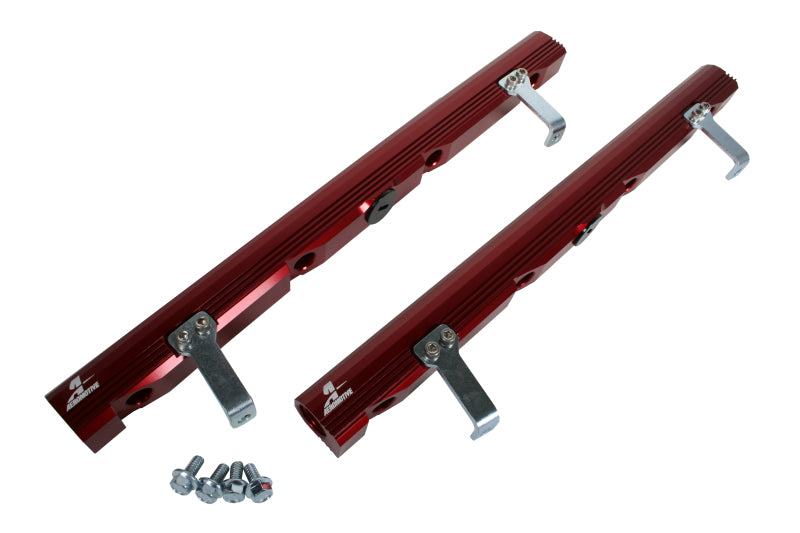

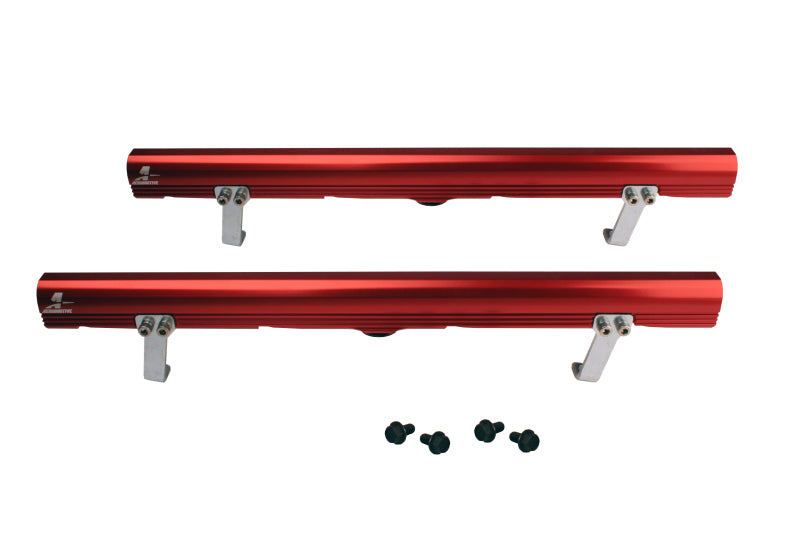

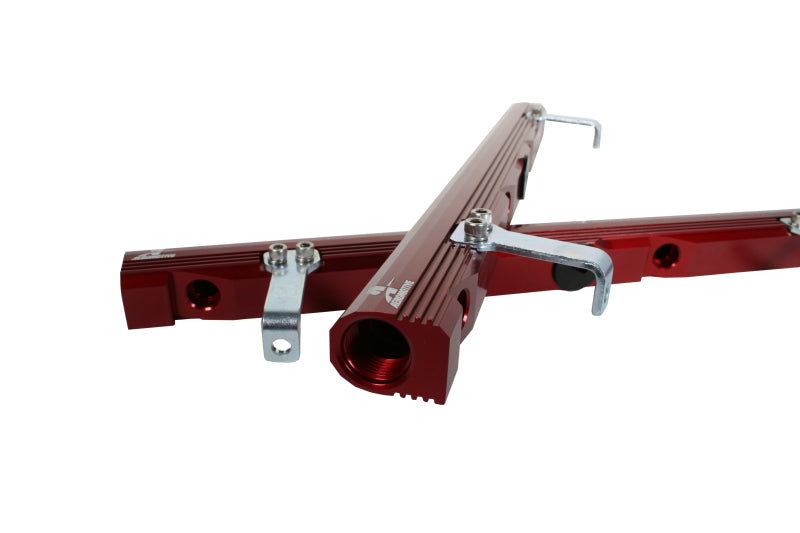

Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with ?bolt-on? ease of installation. Fits the Edelbrock? LS1 Intake?? Rails Only. ORB-08 Ports with compact connections and positive, leak-free sealing. Full 5/8? ID through bore, capable of supporting up to 3,000 HP. Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641. Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation. Additional inlet/outlet ports are provided where required for plumbing convenience. CNC-machined, billet aluminum construction for unequaled fit and finish. Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and ?bolt-on? ease of installation. Red, Type II bright dip anodized finish that looks great and protects against corrosion.
