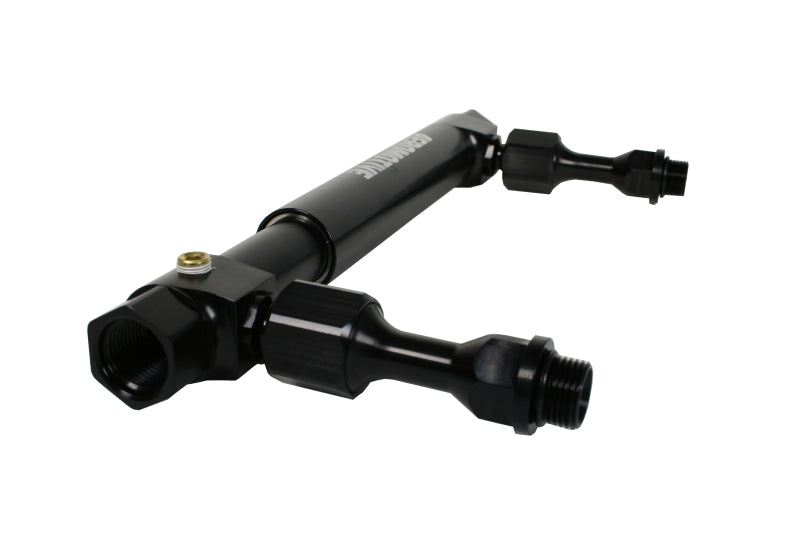

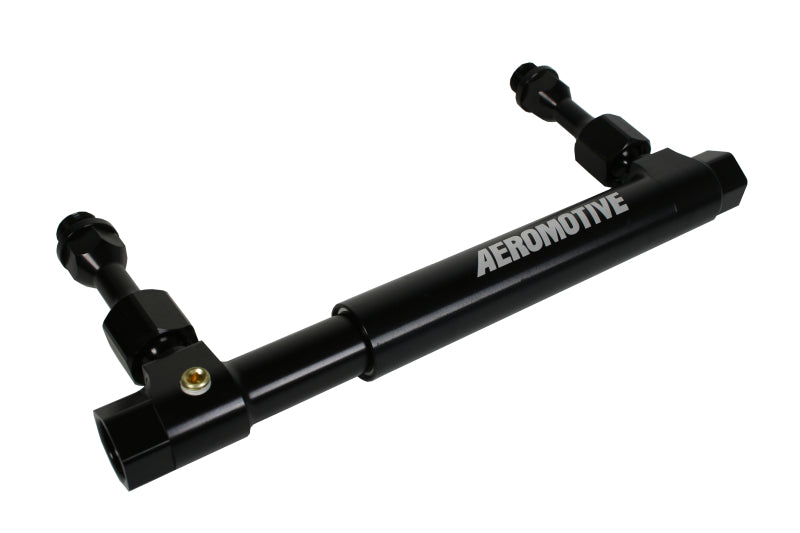

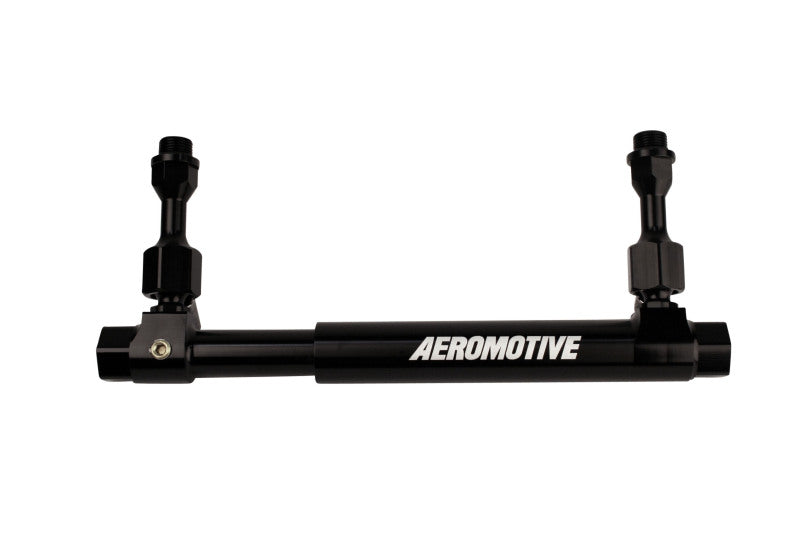

Aeromotive 14203 Fuel Log - Holley Ultra HP Series 3/4-16 Thread

Aeromotive 14203 Aeromotive Fuel Log - Holley Ultra HP Series 3/4-16 Thread

Brand : Aeromotive

MPN : 14203

AlternatePartNumber : aer14203

UPC : 684980004984

Product Department : Fuel Delivery

Product Category : Fuel Manifolds

BoxQuantity : 1

Length : 6.75 inches

Width : 3.0 inches

Height : 1.5 inches

Weight : 1.48 lbs

Prop65 : Yes

Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised. Threaded with 3/4 16 ORB-08 (o-ring boss) for proper sealing on carburetors like the Holley Ultra-HP and those with similar float bowls. Carburetor inlets swivel + or 20 degrees in all directions for optimum clearance from valve cover and intake runners. Telescoping center line is 7.700 to 13.450 adapts to standard and high capacity float bowls. ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings. Two 1/8 NPT ports for gauges and/or pressure tra nsducers. 1.056/.806 ID bore for high flow capacity. Type II bright-dip black anodized finish for durability and great looks.
Installation Instructions
