Aeromotive 13209 Double Adjustable Carbureted Regulator for Belt Drive Fuel P

Name: Aeromotive 13209 Double Adjustable Carbureted Regulator for Belt Drive Fuel P
Brand: Aeromotive
SKU: AER13209
Price: 315.45 USD
Availability: InStock

Aeromotive

Manufacturing Part Number (MPN)

13209

Price:

$315.45

Stock:

Re-stocking soon

Quantity:

Economy delivery - on or before 7 business days - 17th

Standard delivery - on or before 5 business days

Expedited - on or before 3 day

Second Day - on or before 2 days

Next Day -on or before 1 day

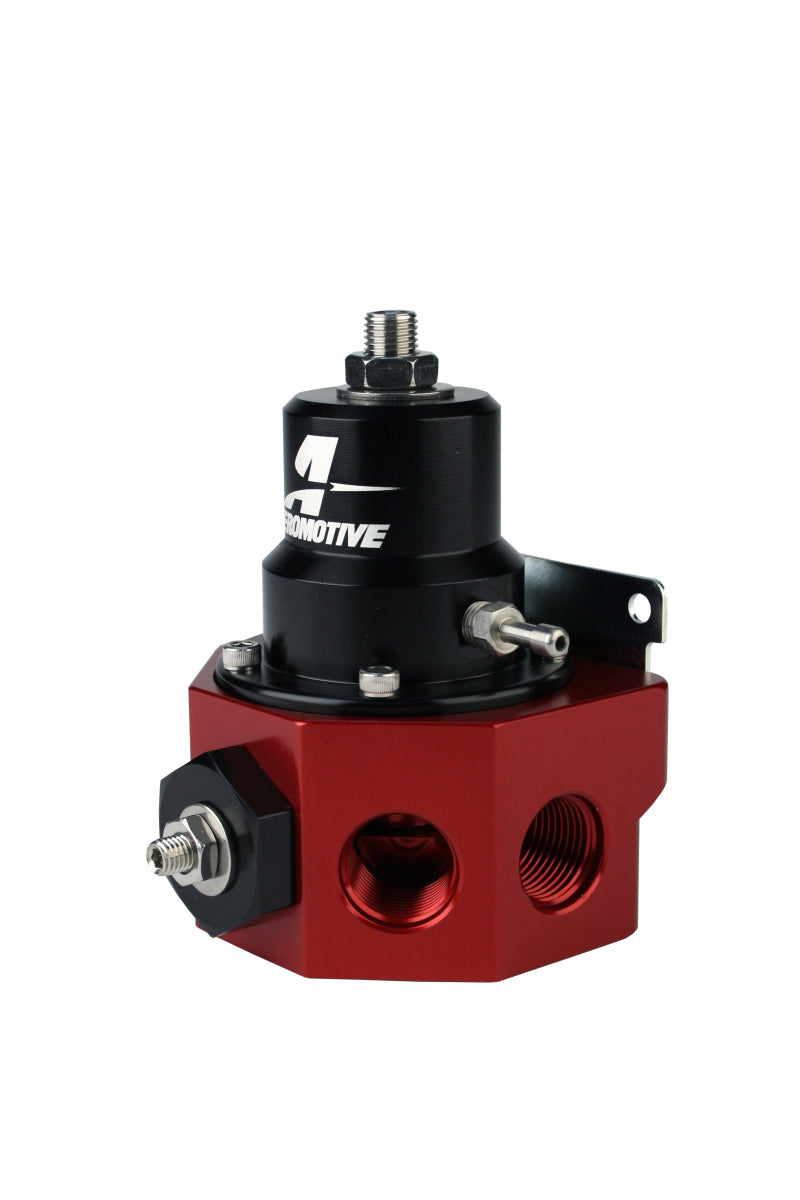

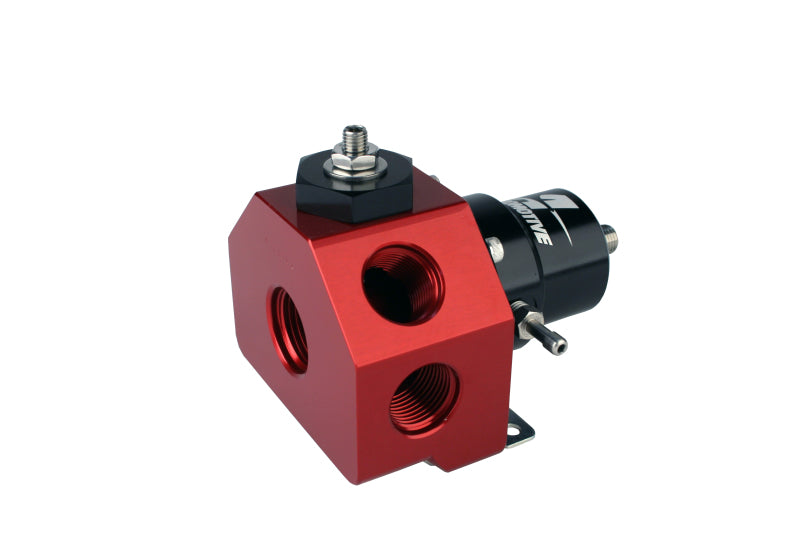

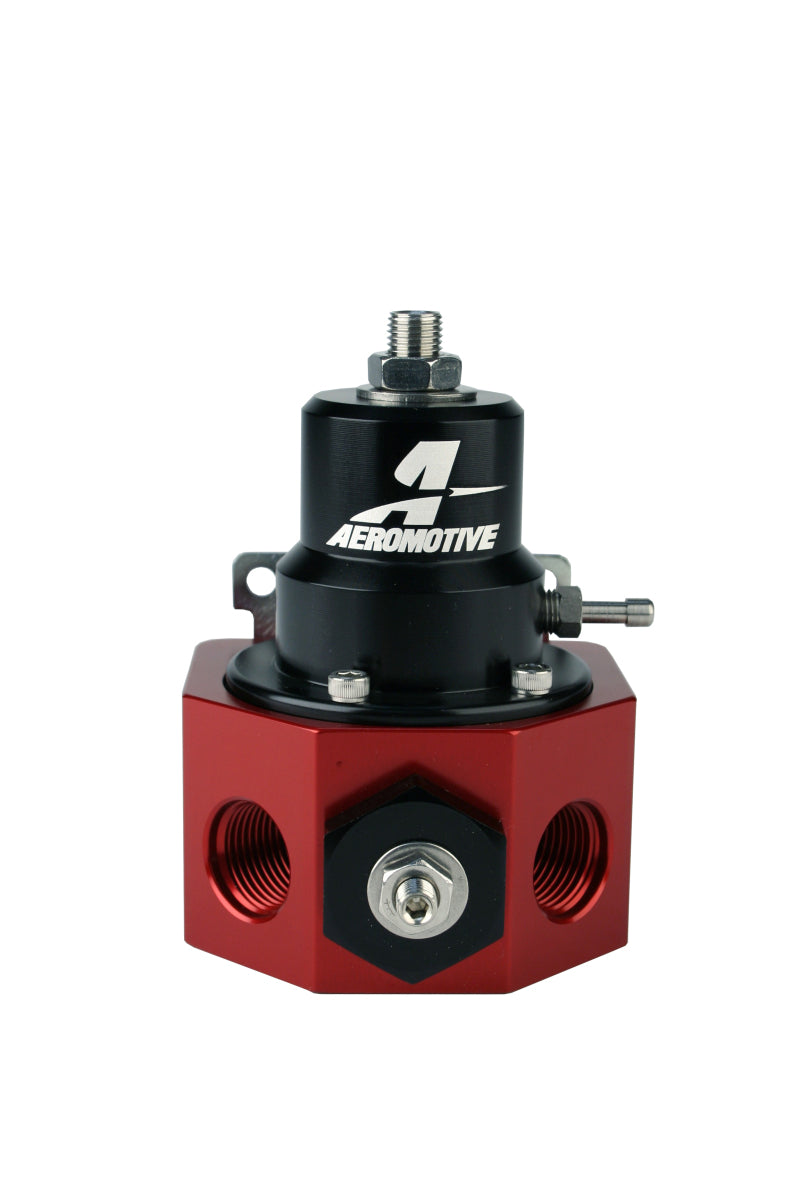

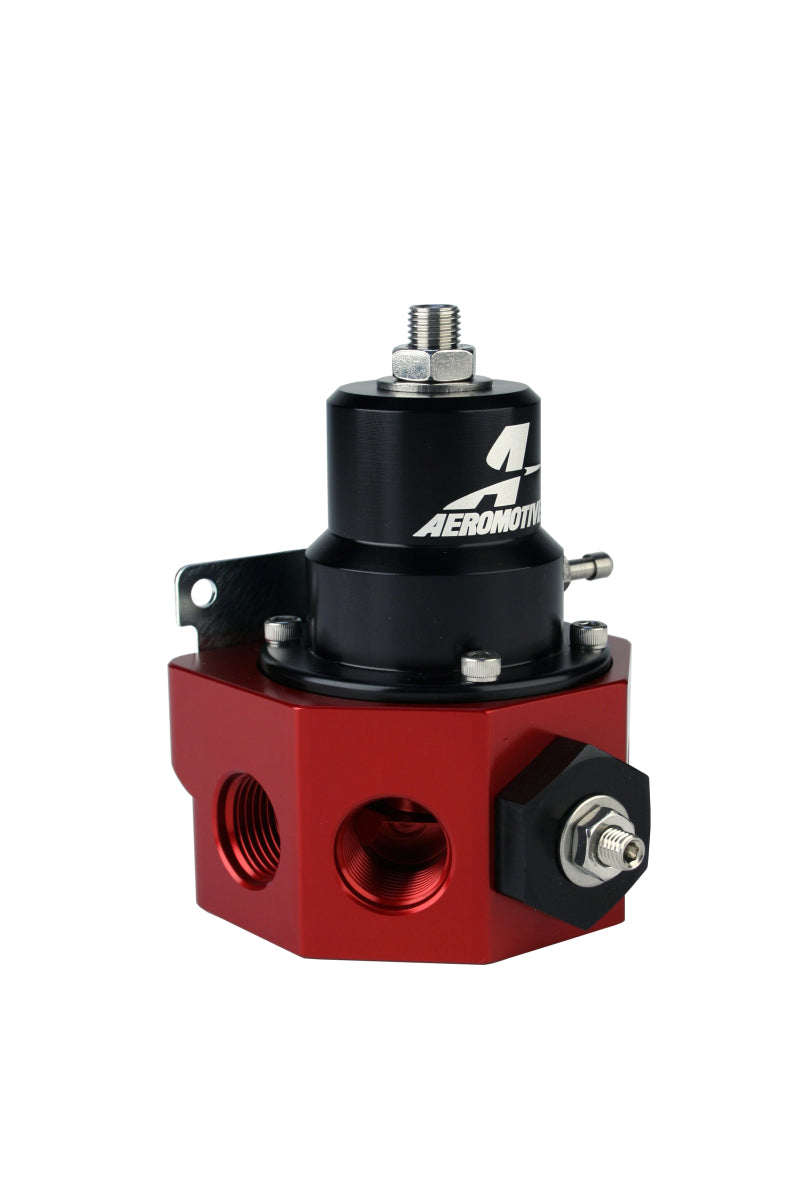

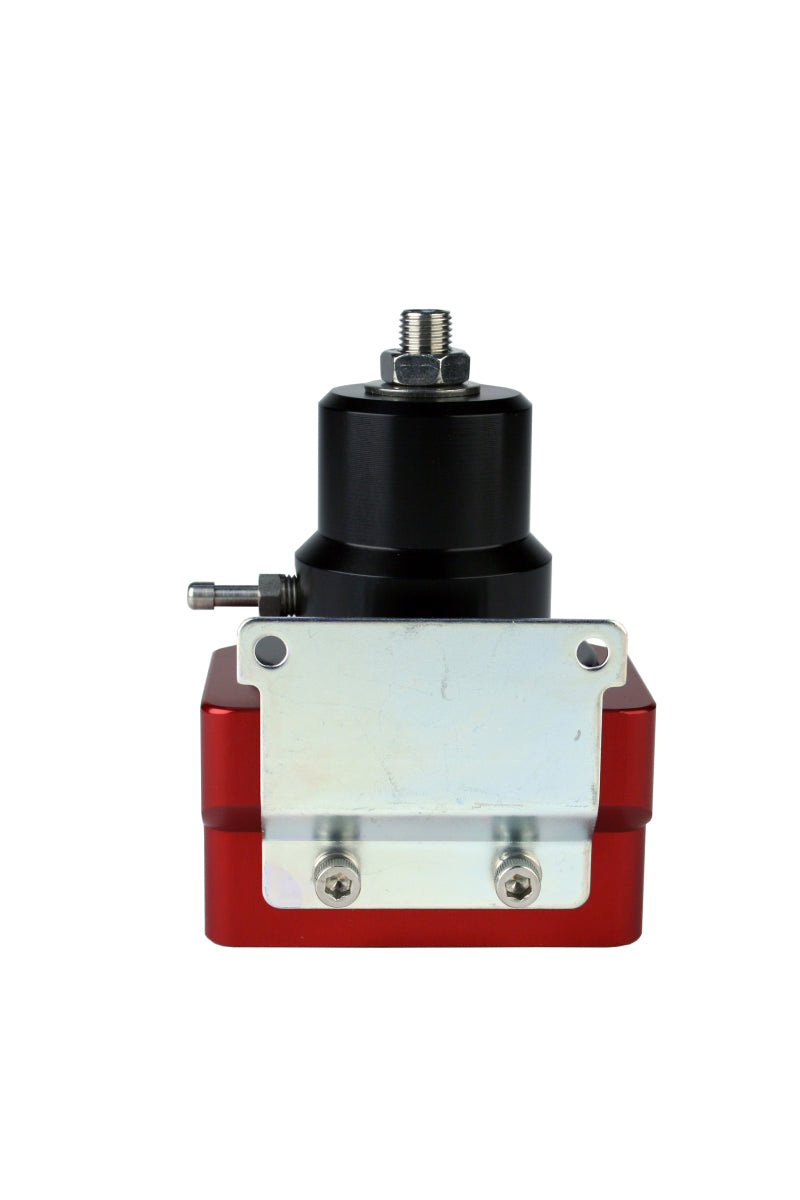

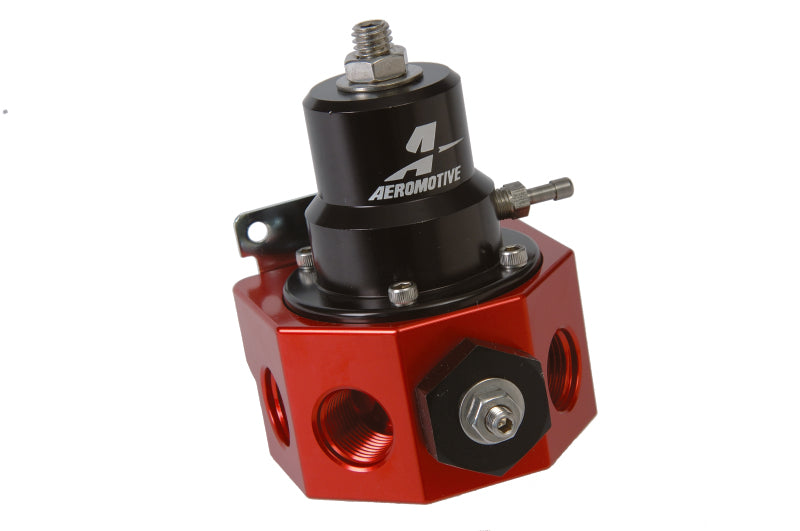

Aeromotive 13209 Aeromotive Double Adjustable Carbureted Regulator for Belt Drive Fuel Pump

Brand : Aeromotive

MPN : 13209

AlternatePartNumber : aer13209

UPC : 684980002386

Product Department : Fuel Delivery

Product Category : Fuel Pressure Regulators

BoxQuantity : 1

Length : 8.5 inches

Width : 4.75 inches

Height : 4.0 inches

Weight : 1.32 lbs

Prop65 : Yes

Not CARB Legal

Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any bypass system. ORB-10 return port. P/N 13209 provides (1) ORB-08 inlet and (3) ORB-08 outlet ports. Can be configured for single or dual carbureted engines and provides superior pressure control and flow when installed before the carburetor or after a fuel log. Also available with a single inlet port for fuel logs. (P/N 13214) ? provides ORB-10 inlet and return ports.
